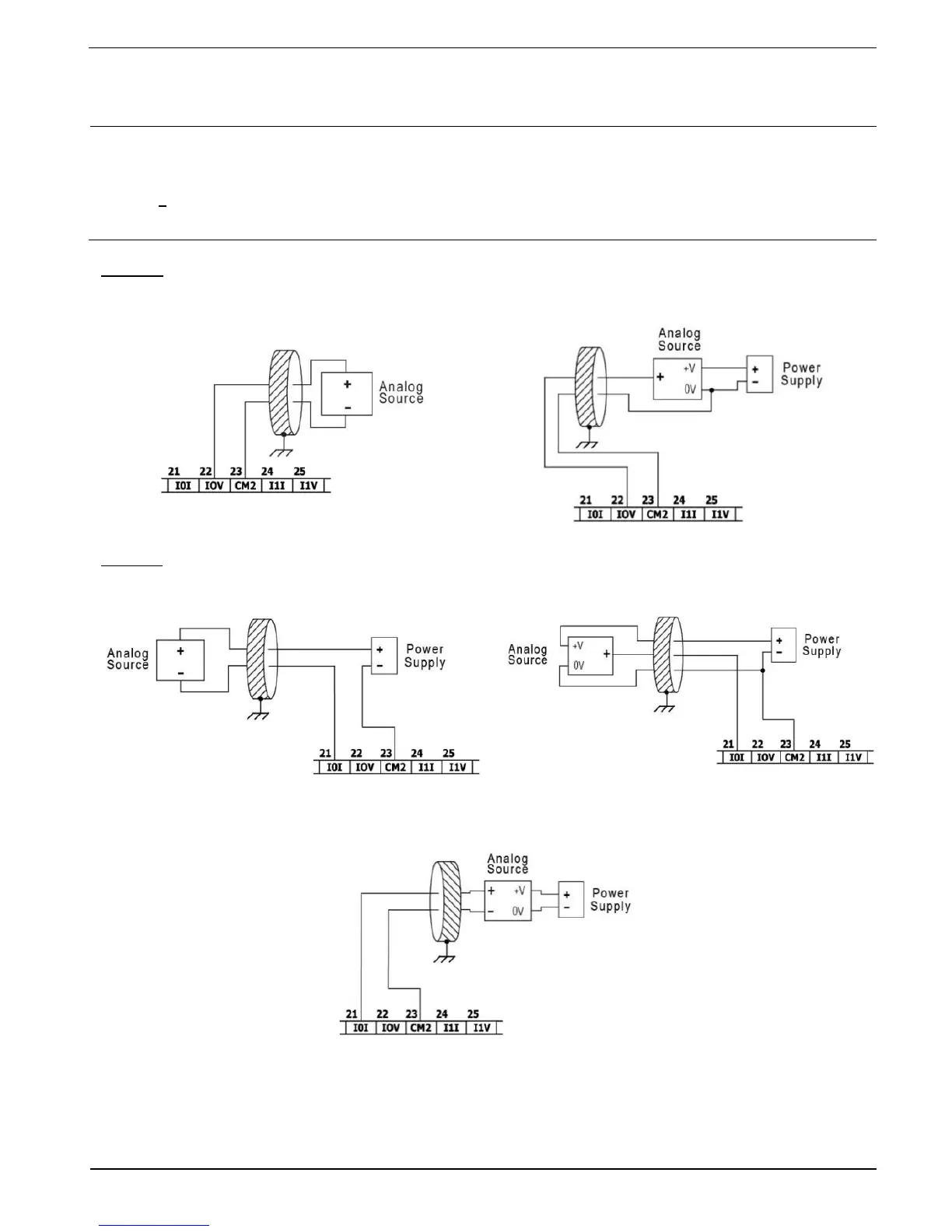

Wiring the Analog Inputs
Both inputs share the common point CM2.
NOTE
 Each input offers two modes: voltage or current. You can set each input
independently. The mode is determined both by wiring and by the hardware
configuration within the software application.
 Voltage and current modes use distinct points. Connect only the point
associated with the selected mode; leave the other point unconnected.
Voltage
Differential
Single-ended
Current
2-wire
3-wire
4-wire
