Unitronics Vision V130-J Series User Manual

Vision™PLC+HMI
Unitronics
3

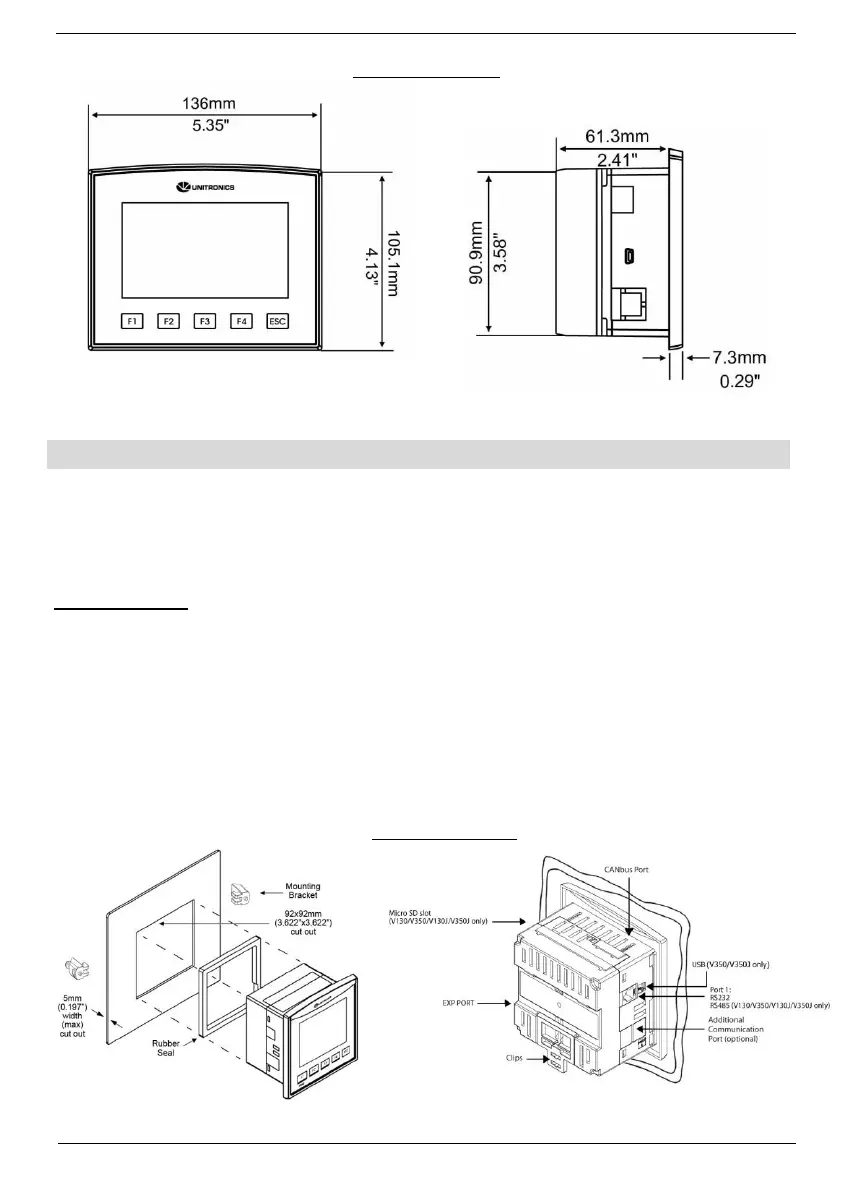

Dimensions: V430J
Model
Cut-out
View area
V130V130J
92x92 mm (3.622”x3.622”)
58x30.5mm (2.28"x1.2")
V350/V350J
92x92 mm (3.622”x3.622”)
72x54.5mm (2.95"x2.14")
V430J
122.5x91.5 mm (4.82”x3.6”)
96.4x55.2mm (3.79"x2.17")
Panel Mounting
Before you begin, note that the mounting panel cannot be more than 5 mm thick.
1. Make a panel cut-out of the appropriate size:
2. Slide the controller into the cut-out, ensuring that the rubber seal is in place.
3. Push the mounting brackets into their slots on the sides of the panel as shown in the figure below.
4. Tighten the bracket’s screws against the panel. Hold the bracket securely against the unit while
tightening the screw.
5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the
accompanying figures.
V130/V350/V130J/V350J

Unitronics Vision V130-J Series Specifications

General

Brand	Unitronics
Model	Vision V130-J Series
Category	Controller
Language	English
