15
DO NOT TAKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
customerservice@universal-fitness.com. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
Point MS 39773. Web sight www.universal-fitness.com

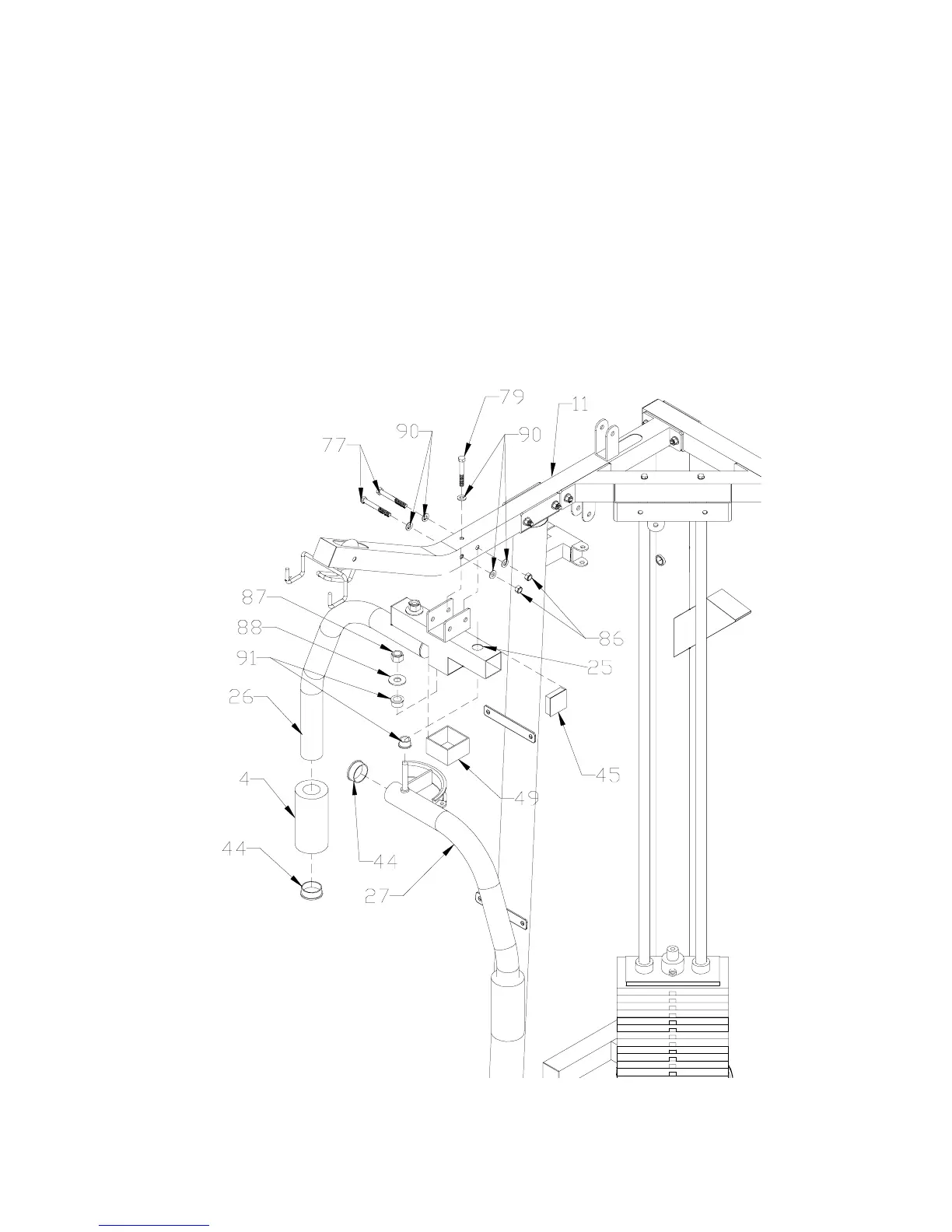

FIGURE 5
Step 20.
Step 21.
Step 22.
Step 23.
Step 24.
Step 25.
Push 50mm SQUARE END PLUGS (45) into each side of BUTTERFLY EXTENSION (25) and 50mm SQUARE SPACER
(49) over short end.
Attach BUTTERFLY EXTENSION (25) to RIGHT TOP CROSS FRAME (11) with 3/8” x 3” HEX BOLTS (77), 3/8”
WASHERS (90) and 3/8” LOCKNUTS (86).
Thread a 3/8” x 2-1/2” HEX BOLT (79) and 3/8” WASHER down through RIGHT TOP CROSS FRAME (11) into BUT-
TERFLY EXTENSION (25) and tighten.
Push 2” ROUND END PLUGS (44) into each end of RIGHT BUTTERFLY (26) and LEFT BUTTERFLY (27).
Using liquid soap, push a BIG FOAM ROLL (4) over end of BUTTERFLYS (26 RIGHT & 27 LEFT) until flush with end.
Attach BUTTERFLYS (26 RIGHT & 27 LEFT) to BUTTERFLY EXTENSION (25) with 3/4” OIL BUSHINGS (91), 5/8”
WASHERS (88) and 5/8” LOCKNUTS (87).
NOTE: DO NOT overtighten. BUTTERFLYS must pivot freely.
FIGURE 5
