22
DO NOT TAKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
customerservice@universal-fitness.com. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
Point MS 39773. Web sight www.universal-fitness.com

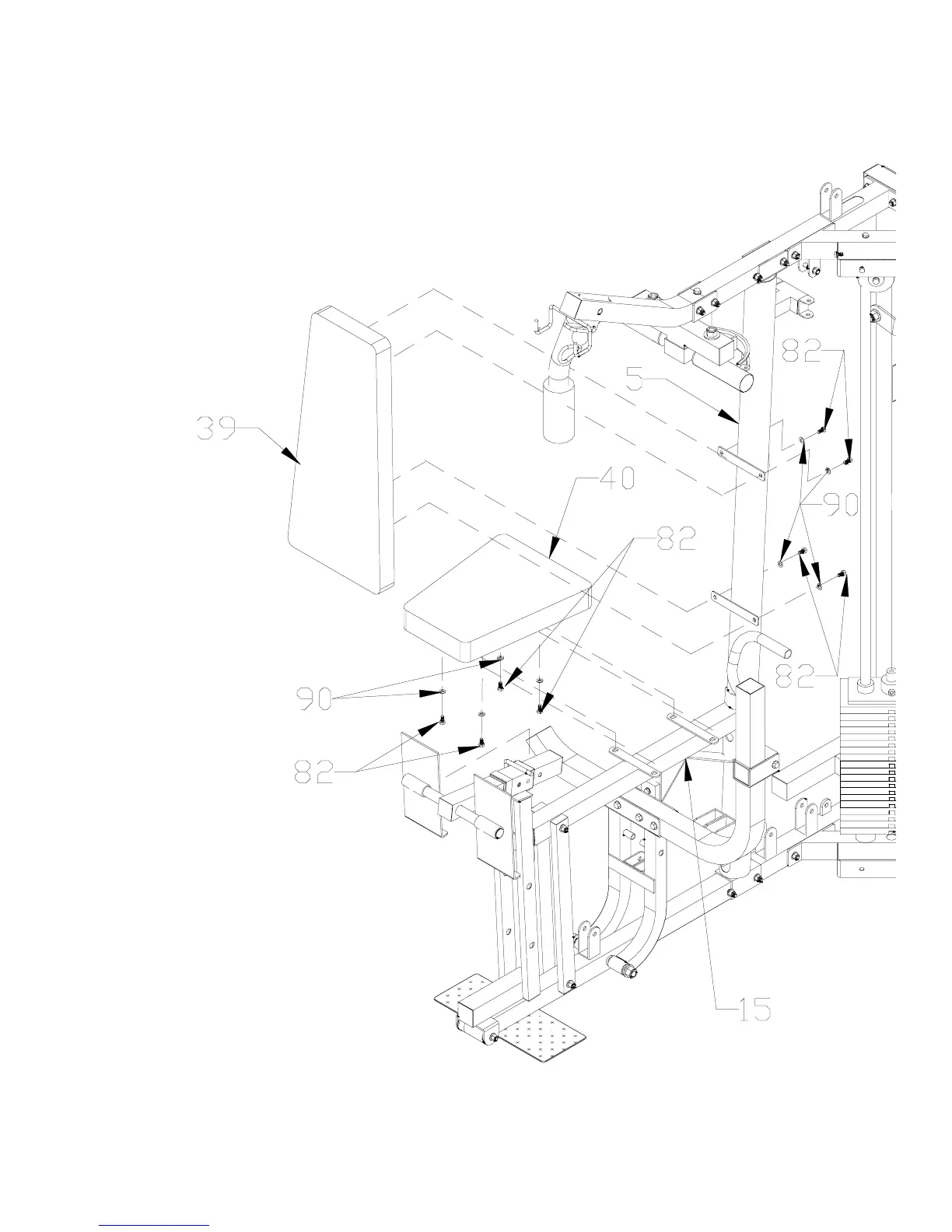

FIGURE 10
Step 52.
Step 53.
Attach BACK CUSHION (39) to RIGHT VERTICAL FRAME (5) with 3/8” x 3/4” HEX BOLTS (82) and 3/8” WASHERS
(90).
Attach SEAT CUSHION (40) to SEAT SUPPORT FRAME (15) with 3/8” x 3/4” HEX BOLTS (82) and 3/8” WASHERS
(90).
FIGURE 10
