23
DO NOT TAKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
customerservice@universal-fitness.com. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
Point MS 39773. Web sight www.universal-fitness.com

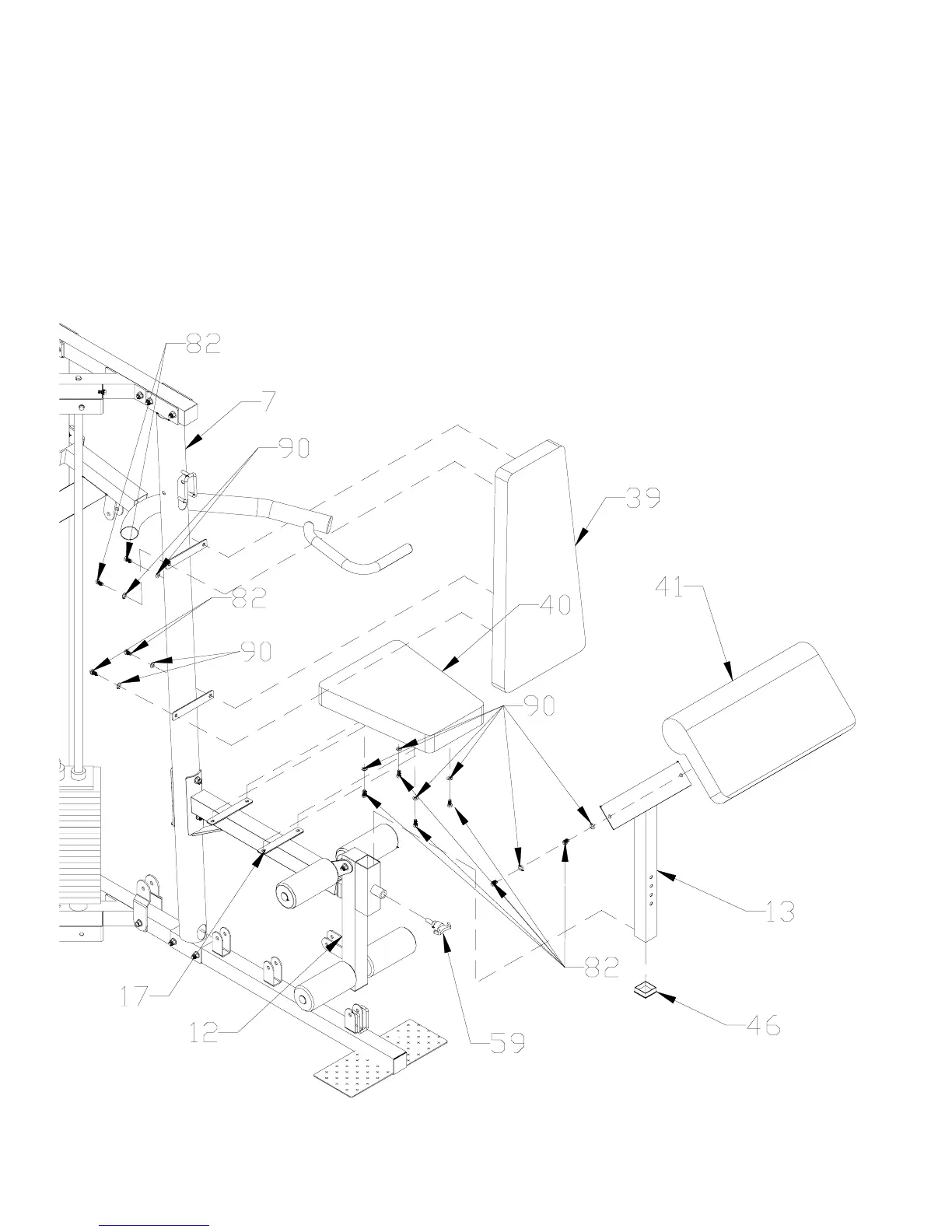

FIGURE 11
FIGURE 11
Step 54.
Step 55.
Step 56.
Step 57.
Step 58.
Attach BACK CUSHION (39) to LEFT VERTICAL FRAME (7) with 3/8” x 3/4” HEX BOLTS (82) and 3/8” WASHERS
(90).
Attach SEAT CUSHION (40) to LEFT SEAT CUSHION FRAME (17) with 3/8” x 3/4” HEX BOLTS (82) and 3/8” WASH-
ERS (90).
Push 45mm SQUARE END PLUG (46) into end of CURL FRAME (13) and attach CURL CUSHION (41) to CURL
FRAME with 3/8” x 3/4” HEX BOLTS (82) and 3/8” WASHERS (90).
Thread PT-1 POP PIN (59) into LEG EXTENSION (12) until tight.
Pull out on PT-1 POP PIN (59), insert CURL FRAME (13) into LEG EXTENSION (12) and release PT-1 POP PIN to
lock in desired position.
