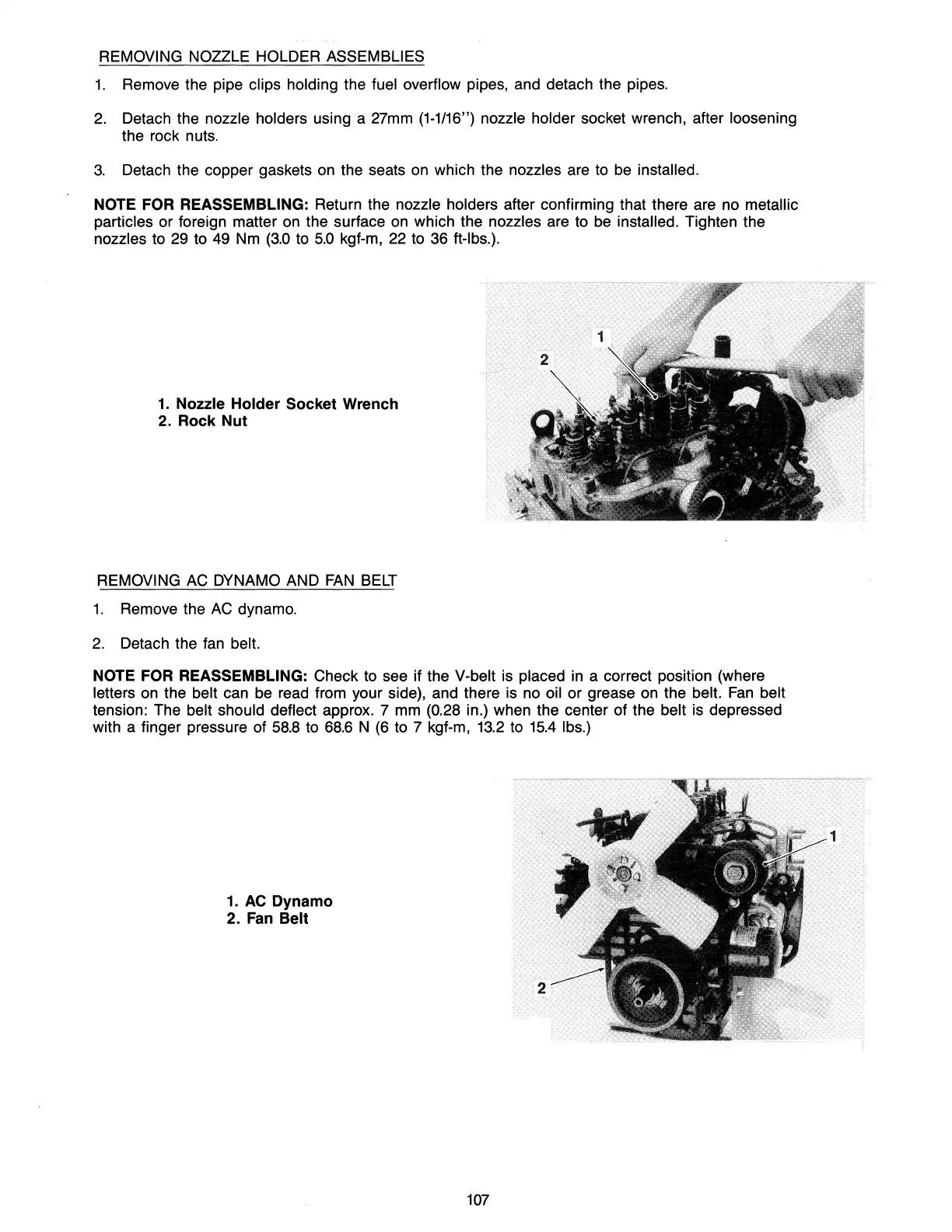

REMOVING NOZZLE HOLDER ASSEMBLIES
1.
Remove the pipe clips holding the fuel overflow pipes, and detach the pipes.
2.
Detach the nozzle holders using a
27mm
(1-1116")
nozzle holder socket wrench, after loosening
the rock nuts.
3.
Detach the copper gaskets
on
the seats
on
which the nozzles are to be installed.
NOTE FOR REASSEMBLING: Return the nozzle holders after confirming that there are
no
metallic
particles
or foreign matter
on
the surface
on
which the nozzles are to
be
installed. Tighten the
nozzles to 29 to 49
Nm
(3.0
to
5.0
kgf-m, 22 to 36 ft-Ibs.).
1. Nozzle Holder Socket Wrench
2. Rock Nut
REMOVING
AC
DYNAMO AND
FAN
BELT
1.
Remove the
AC
dynamo.
2.
Detach the
fan
belt.
NOTE FOR REASSEMBLING: Check
to
see if the V-belt is placed
in
a correct position (where
letters
on
the belt can be read from your side), and there is no oil or grease
on
the belt.
Fan
belt
tension: The belt should deflect approx. 7
mm
(0.28 in.) when the center of the belt
is
depressed
with a finger pressure of
58.8
to
68.6
N
(6
to
7 kgf-m,
13.2
to
15.4
Ibs.)
1.
AC
Dynamo
2.
Fan
Belt
2
107
