OPERATION

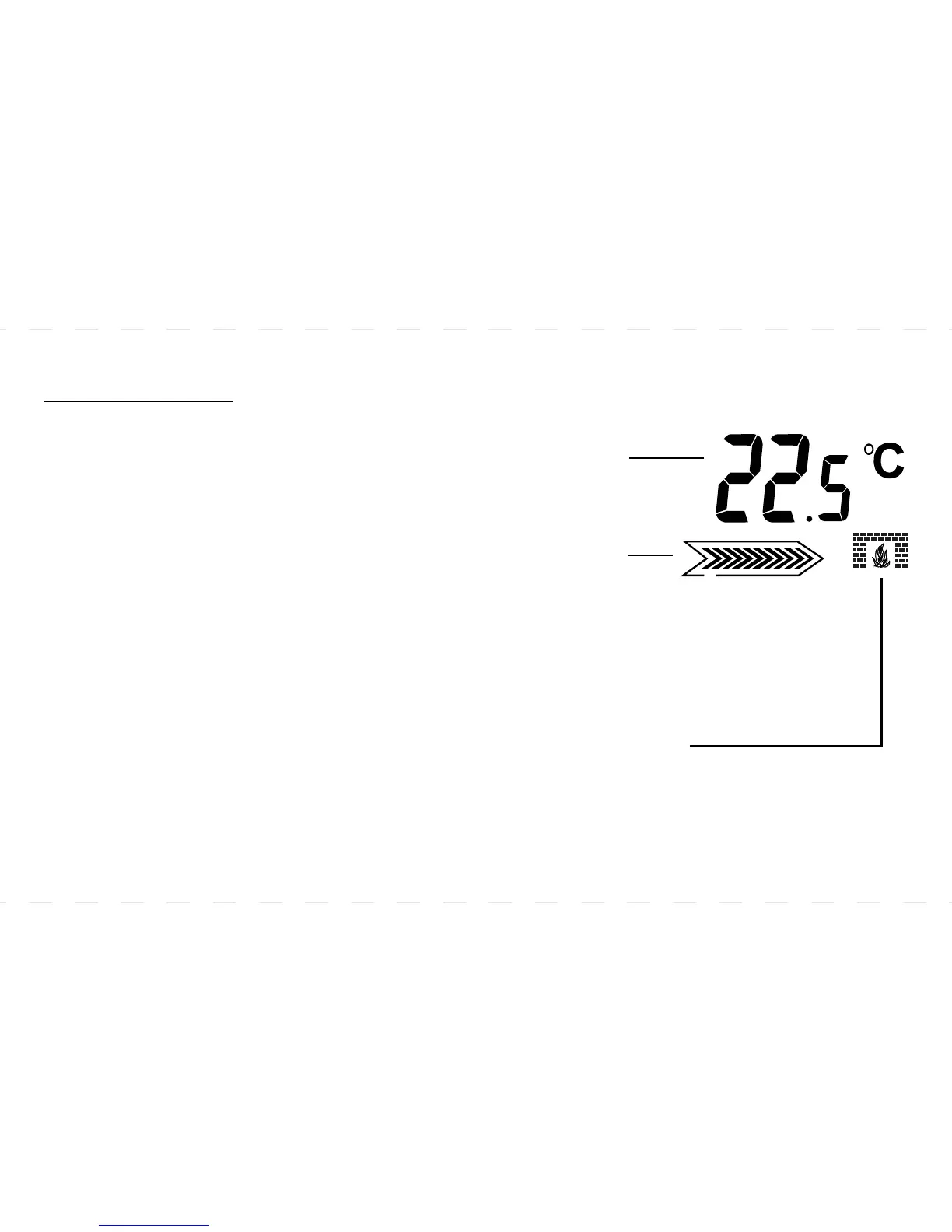

Current Temperature Display
The current (room) temperature is displayed on the LCD screen.
Power Bar Arrows
This thermostat is equipped with an proportional regulation
system, to determine the precise amount of power required
by the electric heater to maintain the temperature setting.
The “Power Bar Arrows” indicate the current output power level.
1 ARROW = 10%, 10 ARROWS = 100%
When the heating system is activated at partial power,
a proportional number of arrows bars will appear
(e.g. 60% - 6 arrows).When the heating system is
activated at maximum power all 10 arrows will display.
Fireplace Symbol
The flashing fireplace symbol will display WHEN the heating system is ON.
