Uponor Smatrix Wave PLUS User Manual

Uponor Smatrix Wave Thermostat Standard T-165
The thermostat temperature settings are adjusted using
the dial. Maximum/minimum temperatures can only
be set using an interface (Wave PLUS only). The 21 °C
position is marked on the dial.
The standard thermostat is also available with a printed
dial (T-165 POD).
Main characteristics:
• Adjust temperature setpoint with large dial.
• LED ring indication when twisting the dial
(changing temperature setpoint).
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• LED in lower right corner indicating, for about
60 seconds, whether a heating or cooling demand
exists.
• Enable or disable Comfort/ECO scheduling for the
room with a dip switch on the back.
• Can be placed up to 30 meters away from the
controller.
Components of the thermostat:

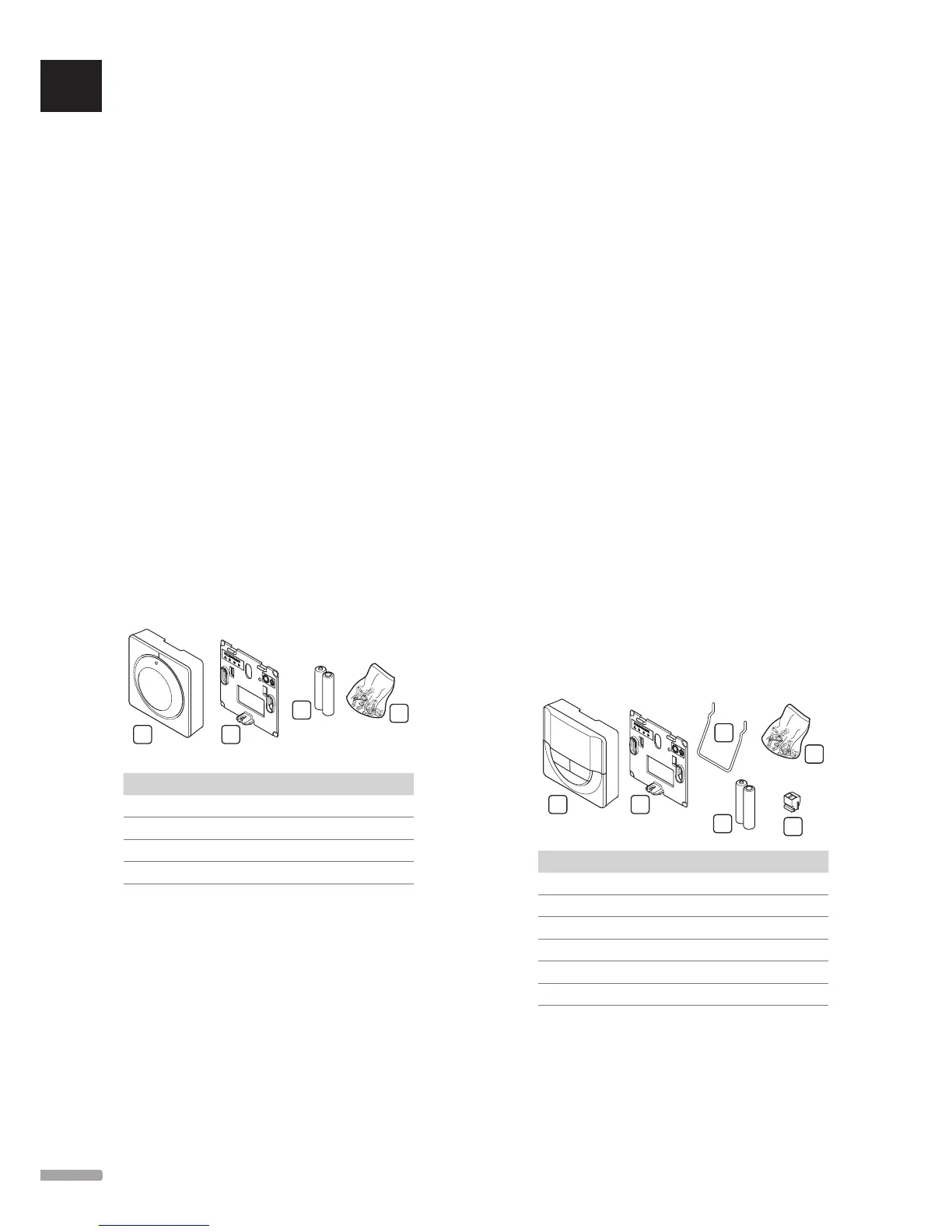

The illustration below shows the thermostat and its
components.
A
D
B
C
Item Description
A Uponor Smatrix Wave Thermostat Standard T-165
B Wall bracket
C Batteries (AAA 1.5 V)
D Mounting material
Uponor Smatrix Wave Thermostat Dig T-166
The thermostat shows the ambient or set temperature
on the display. Temperature settings are adjusted using
the +/- buttons on the front.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Heating/cooling demand as well as low battery
indication in display.
• Displays software version during power up
sequence.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Room temperature regulation with use of optional
external temperature sensors.
• Displays optional temperature sensor values
if sensors are connected and relevant room
temperature regulation is activated.
• Switch between Comfort and ECO mode with
optional timer.
• Adjust ECO setback value.
• Can be placed up to 30 meters away from the
controller.
Components of the thermostat:
The illustration below shows the thermostat and its
components.
A
E
C
B
D
F
Item Description
A Uponor Smatrix Wave Thermostat Dig T-166
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
F Connection terminal
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
10
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
