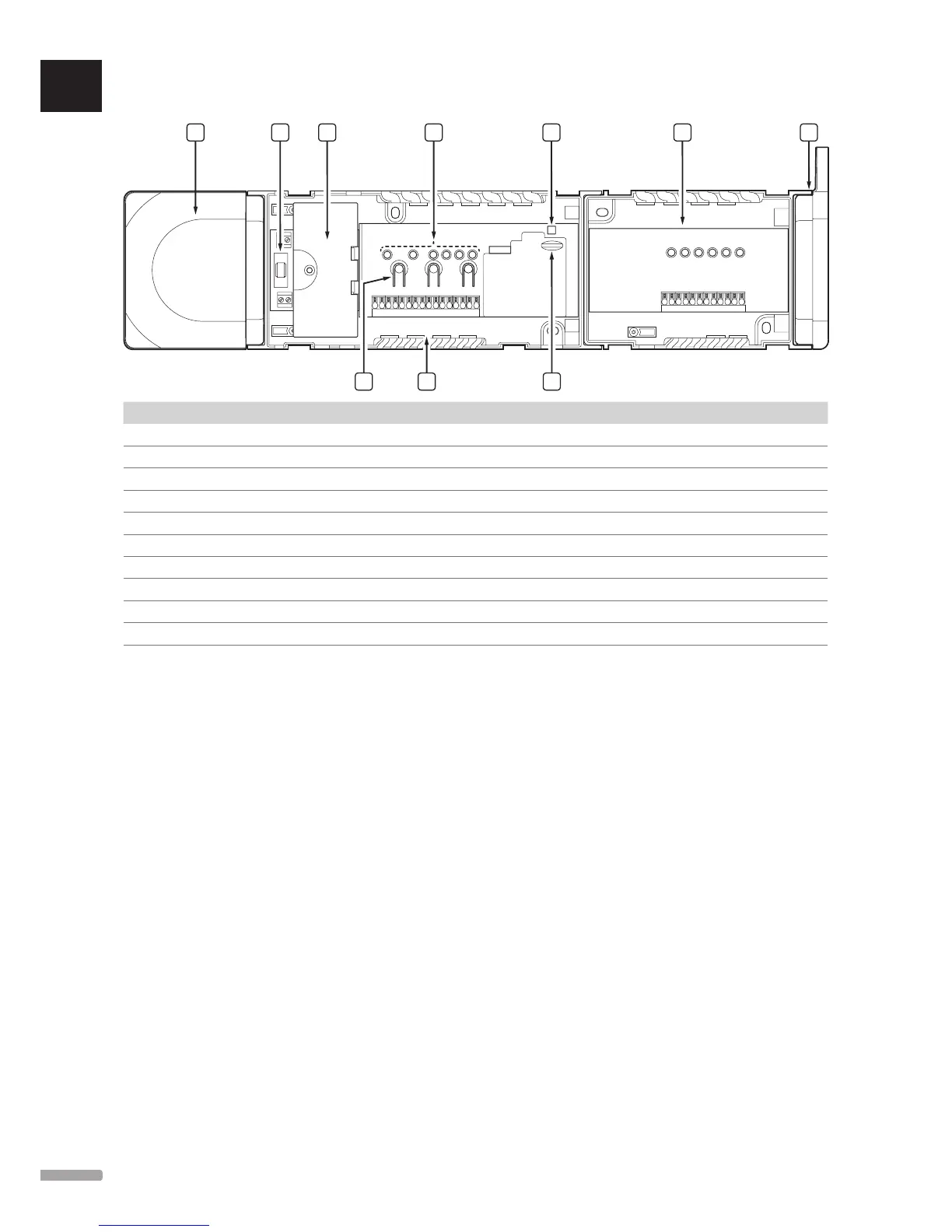

17.3 Controller layout
E H I
FD G
CB JA
Item Description
A Transformer, 230 V AC 50 Hz power module
B Fuse (T5 F3.15AL 250 V)
C Optional inputs and outputs (pump and boiler management, and heat pump connection)
D Channel registration buttons
E LEDs for channels 01 – 06
F Quick connectors for actuators
G MicroSD card (Wave PLUS only)
H Power LED
I Uponor Smatrix Wave Slave Module M-160 (optional)
J Uponor Smatrix Wave Antenna A-165, RJ-45 connector
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
92
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
