Uponor Smatrix Wave PLUS User Manual

The timer (Wave only) provide an option to switch
selected rooms between Comfort and ECO mode using
a 7-day program. It has a display relaying information to
the user and buttons for control.
Timers:
• Uponor Smatrix Wave Timer I-163

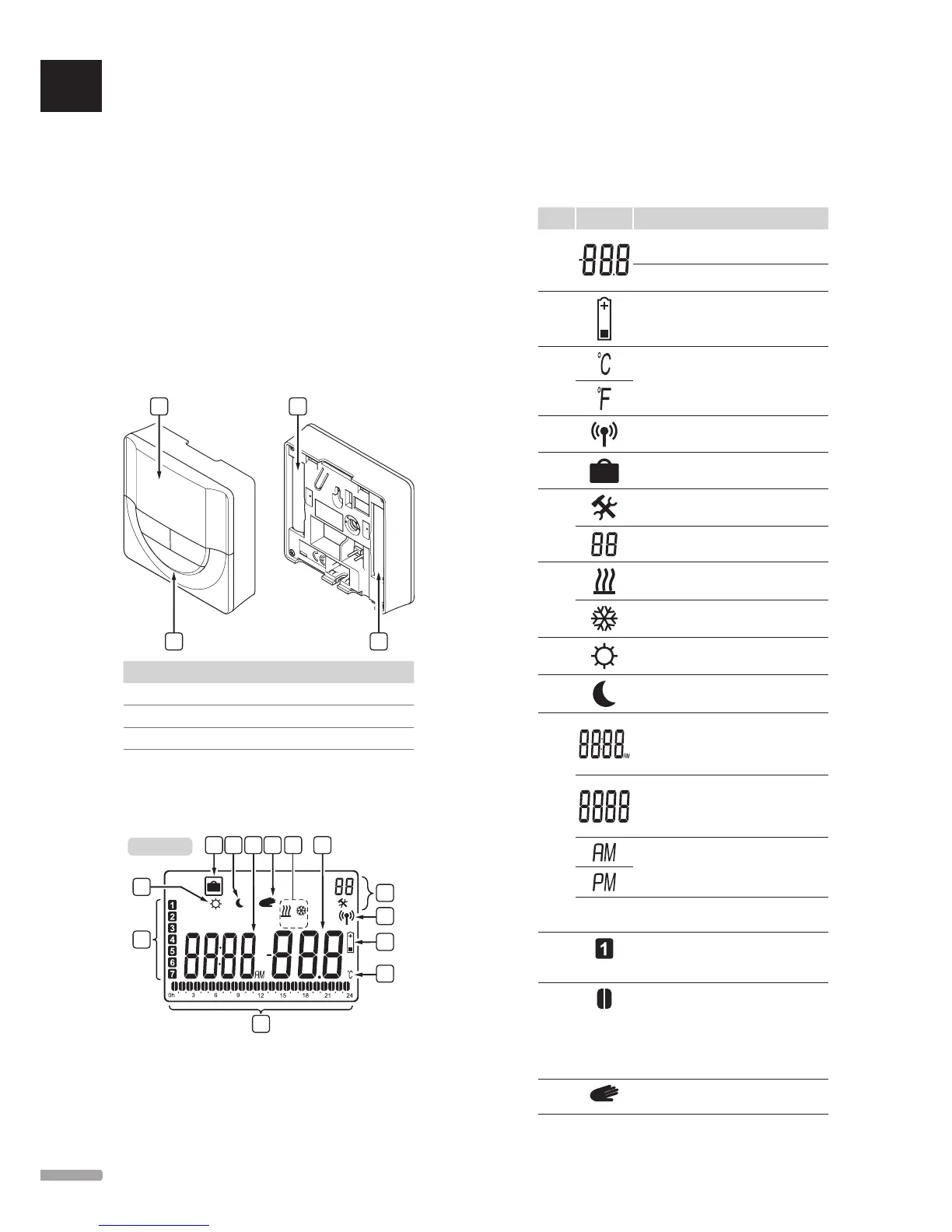

13.1 Timer layout
The illustration below shows the parts of the timer.
C
CB
A
Item Description
A Display
B Buttons
C Batteries
13.2 Screen layout
The figure below shows all possible symbols and
characters that can be shown on the display:
L
C
B
D
F
G
K
J M AI
H
I-163
E
Pos. Icon Description
A
Message field using three
alphanumerical characters
Parameter in settings menu
B
Low battery indicator
C
Temperature unit, shown when the
character group A shows a temperature
D
Communication indicator
E
Holiday mode
F
Settings menu
Settings menu number
G
Heating demand
Cooling demand
H
Comfort mode
I
ECO mode
J
Digital clock
Parameter name in settings menu
Indicator showing AM or PM when the
thermostat is set to 12 h mode
No indication when the thermostat is
set to 24 h mode
K
Weekday selected/activated
1 = Monday
7 = Sunday
L
Time selected or sheduled hour
indicators, for Comfort mode, between
0:00 and 24:00
Half = 30 minutes
Full = 1 hour
M
Manual override. For example forced
Comfort or ECO mode.
13 Operate Uponor Smatrix Wave timer
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
66
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
