Uponor Smatrix Wave PLUS User Manual

Register the interface to a controller
The interface must be registered to a controller to be
able to control the connected system.
Up to four controllers can be registered and controlled
by the interface.
1
Link Touch Screen to controller
3 s
32
4
5 6
Link OK
7
3 s
NOTE!
Registration of at least one thermostat must
be done before registering an interface.
Caution!
Make sure the controller is in run mode.
For information about how to exit to run
mode, see section 10.4 Run mode > Exit to
run mode.

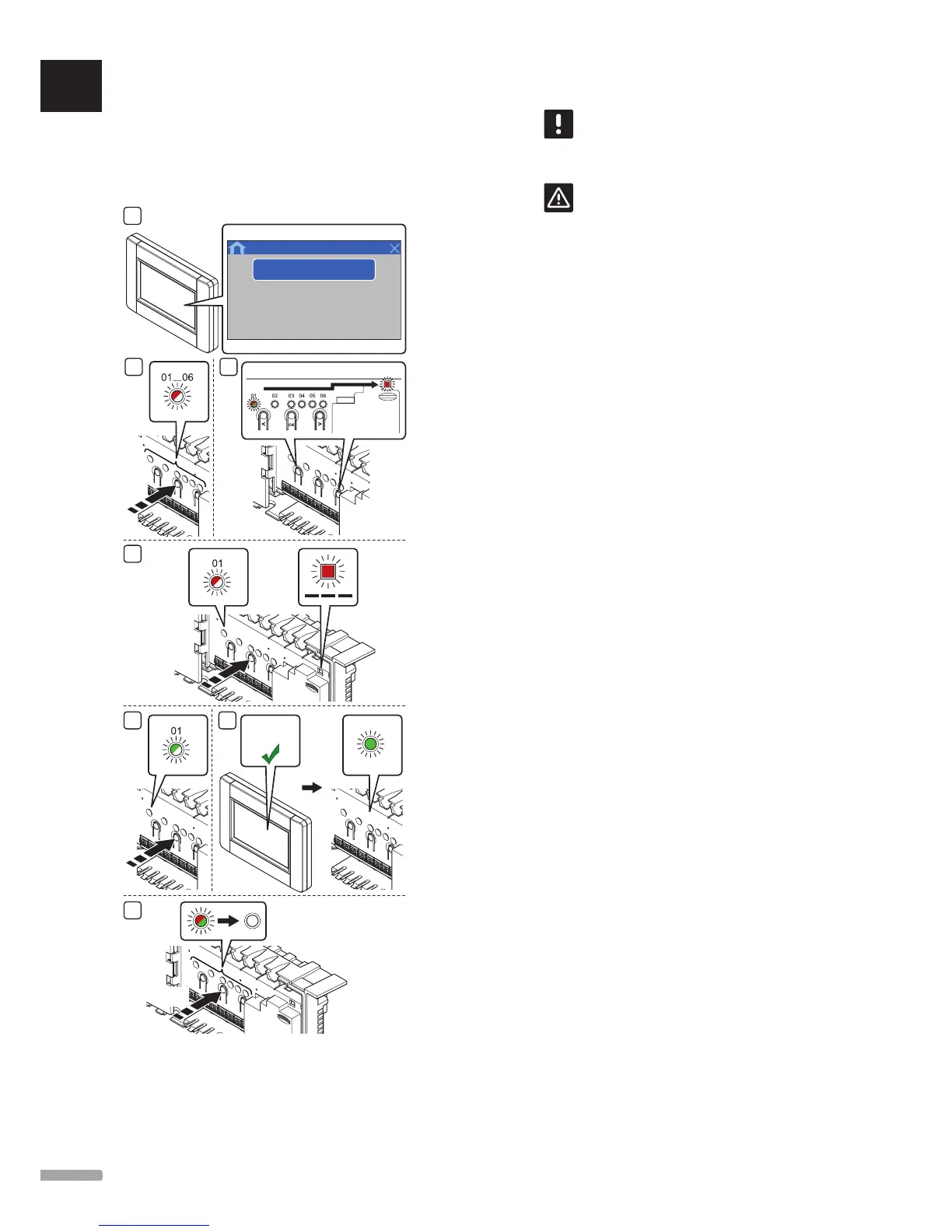

To register the interface to a controller:
1. Press Link Touch Screen to controller in the
RF Link menu (Main menu > Preferences), or
Startup guide, to initialize registration.
2. Press and hold the OK button on the controller
until one of the channel LEDs starts flashing.
3. Use buttons < or > to move the pointer to the
power LED (LED flashes red).
4. Press the OK button to select system device
registration. The power LED starts flashing
according to the pattern long blink, short pause,
long blink. Channel 1 starts flashing red.
5. Press the OK button to register the touch screen
interface to the controller. Channel 1 LED starts
flashing green.
6. The interface gets registered to the controller.
The selected channel LED in the controller turns
fixed green and the registration is complete.
7. Press and hold the OK button on the controller
until the green LEDs turn off to end registration and
return to run mode.
To unregister an already registered interface, see section
10.6 Unregister channels in controller.
