1.3 1067/334 – 1067/335 ELECTRONIC KEY READERS

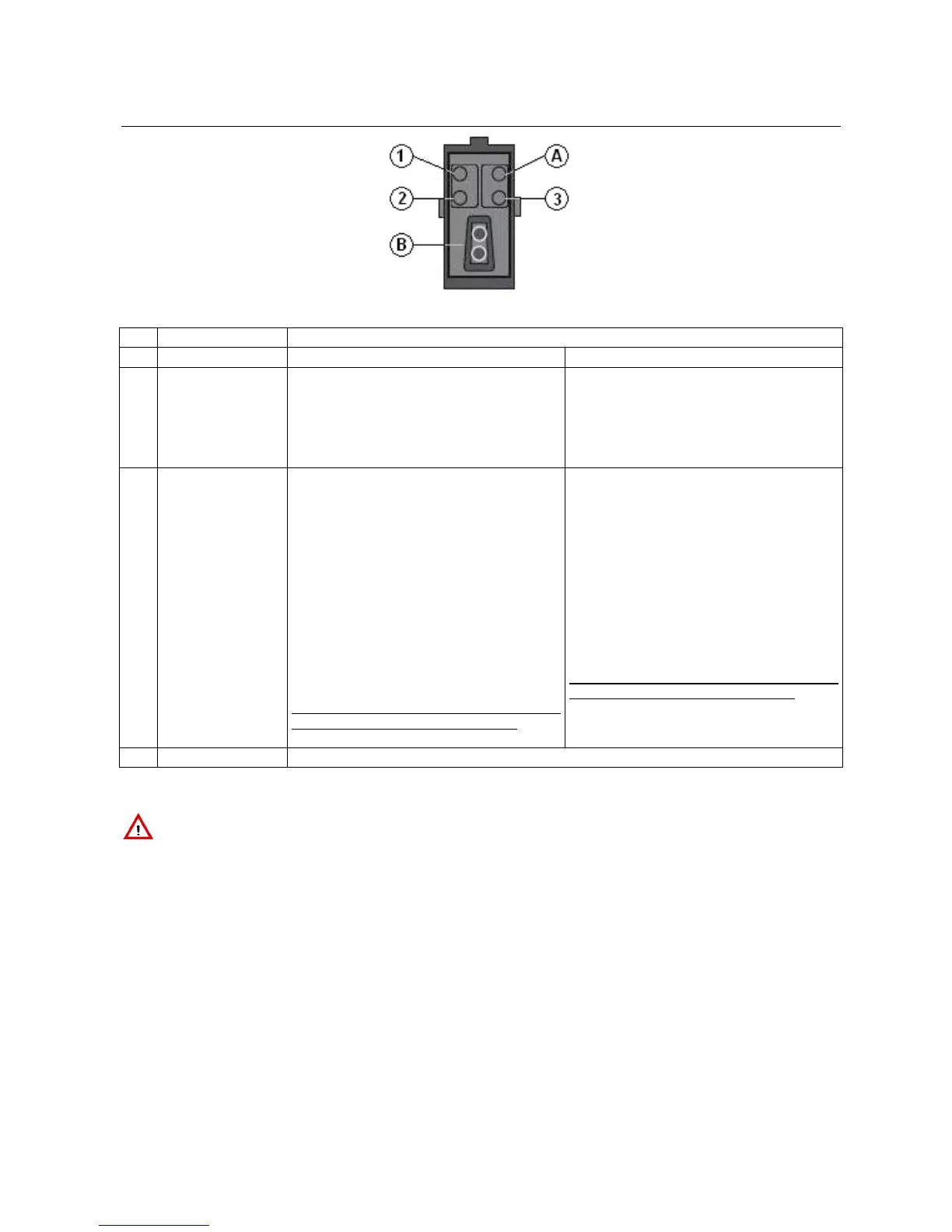

Figure 5 – 1067/334 – 1067/335 electronic key readers
Ref. Description Use or indications provided
Operating mode = Mode 3 Operating mode = Mode 2
1...
2 3
LED (green)
associated
zone status
• Off
* = all zones associated to the LED
are disarmed
• On
* = all zones associated to the LED
are armed
• Blinking * = at least one zone associated
to the LED is armed
• Off = all zones associated to the LED are
disarmed
• On = all zones associated to the LED are
armed
• Blinking = at least one zone associated to
the LED is armed
A
LED (yellow)
alarms and
indications
• Off = no indications for the zones
associated to the reader
• On = alarm indication stored for the
zones associated to the reader or tamper
or system failure (the indication only
appears when the system is disarmed)
• Blinking = presence of at least one open
input in the zones associated to the
reader.
The indication only appears when the system
is disarmed.
The LED will light up fixed if there are alarms,
or failures and open inputs at the same time.
This LED lights up to indicate the need to
check indication details on the keypad.
• Off = no indications for the zones
associated to the reader
• On = alarm indication stored for the
zones associated to the reader or tamper
or system failure (the indication only
appears when the system is disarmed)
• Blinking = presence of at least one open
input in the zones associated to the
reader
The LED will light up fixed if there are alarms,
or failures and open inputs at the same time.
This LED lights up to indicate the need to
check indication details on the keypad.
B
Electronic keyhole 1067/334 – 1067/335 Shaped hole for inserting the electronic key.
Mode 3 is EN50131 grade 3 compliant.
IMPORTANT! Mode 3 is not available for the 1067/024 control panel because this device is EN50131 grade 2,
and not grade 3, compliant.
Mode 2 is EN50131 grade 2 compliant.
*) The LED will remain off in a EN50131 grade 3 compliant system even if an indication is present. Insert the key and
remove it to check system status: the LEDs associated to active zones will light up for a few seconds (fixed or blinking).
