JSD-80 Instruction Manual
Page 34
3rd Edition. February, 2006

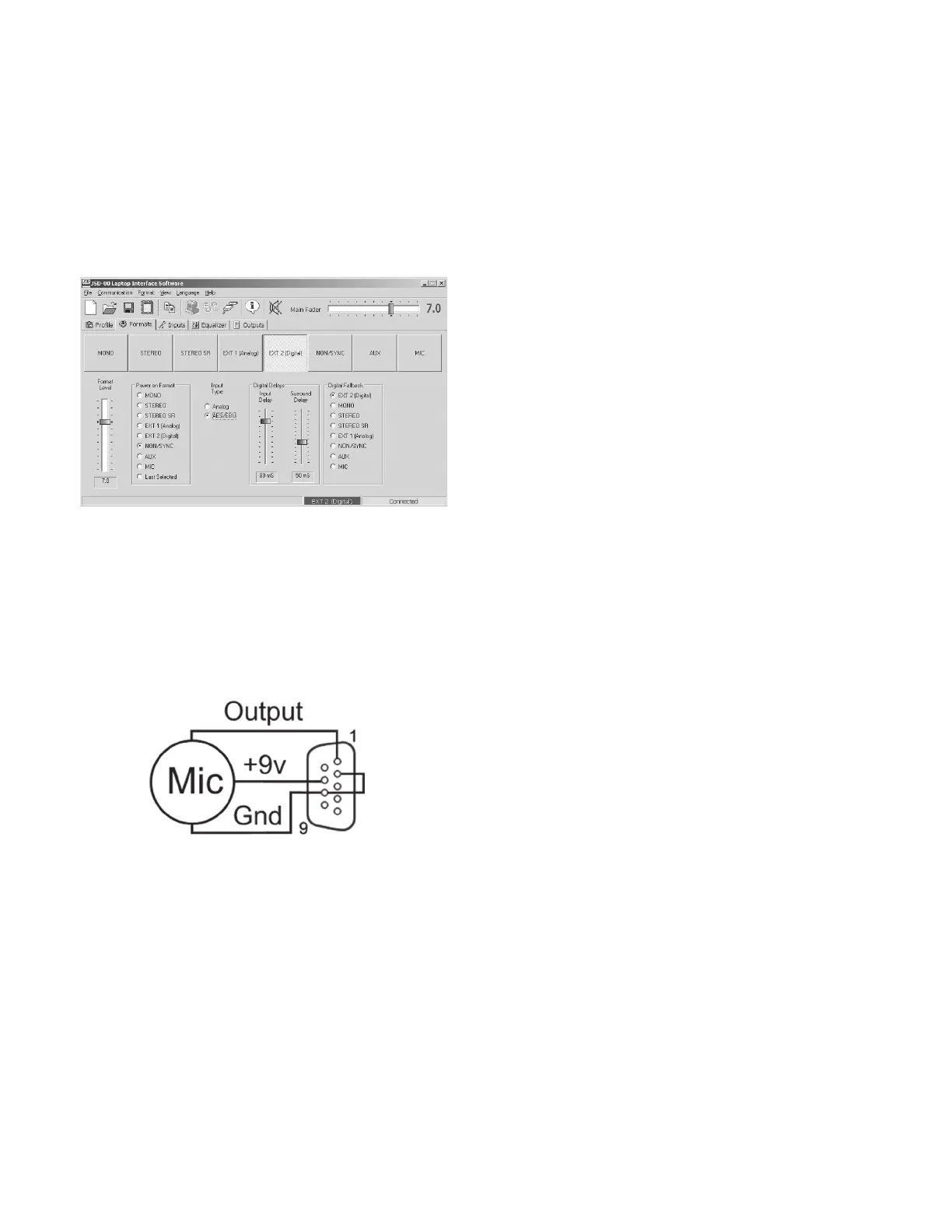

The MONO, STEREO A, STEREO SR buttons
can be confi gured with the following noise
reduction options: “None,” A Type, SR Type.
The same buttons can also be confi gured
with the following matrix decoding options:
“5.1 Stereo,” “2.0 Stereo,” or “Mono.” The 5.1
stereo option is the default setting. The 2.0
stereo option is for either Left/Right stereo
or Center/Surround systems.
The EXT 2 button can be confi gured either
for “AES-EBU” (Digital) or “Analog” inputs.
10.6 Wiring for an Electret
Microphone
An Electret microphone can be connected
to the JSD-80 using a DB-9 male plug as
shown below.
