LAN+LAN+4G mode, user just need set WAN/LAN interface to LAN interface by Web Server as follow:

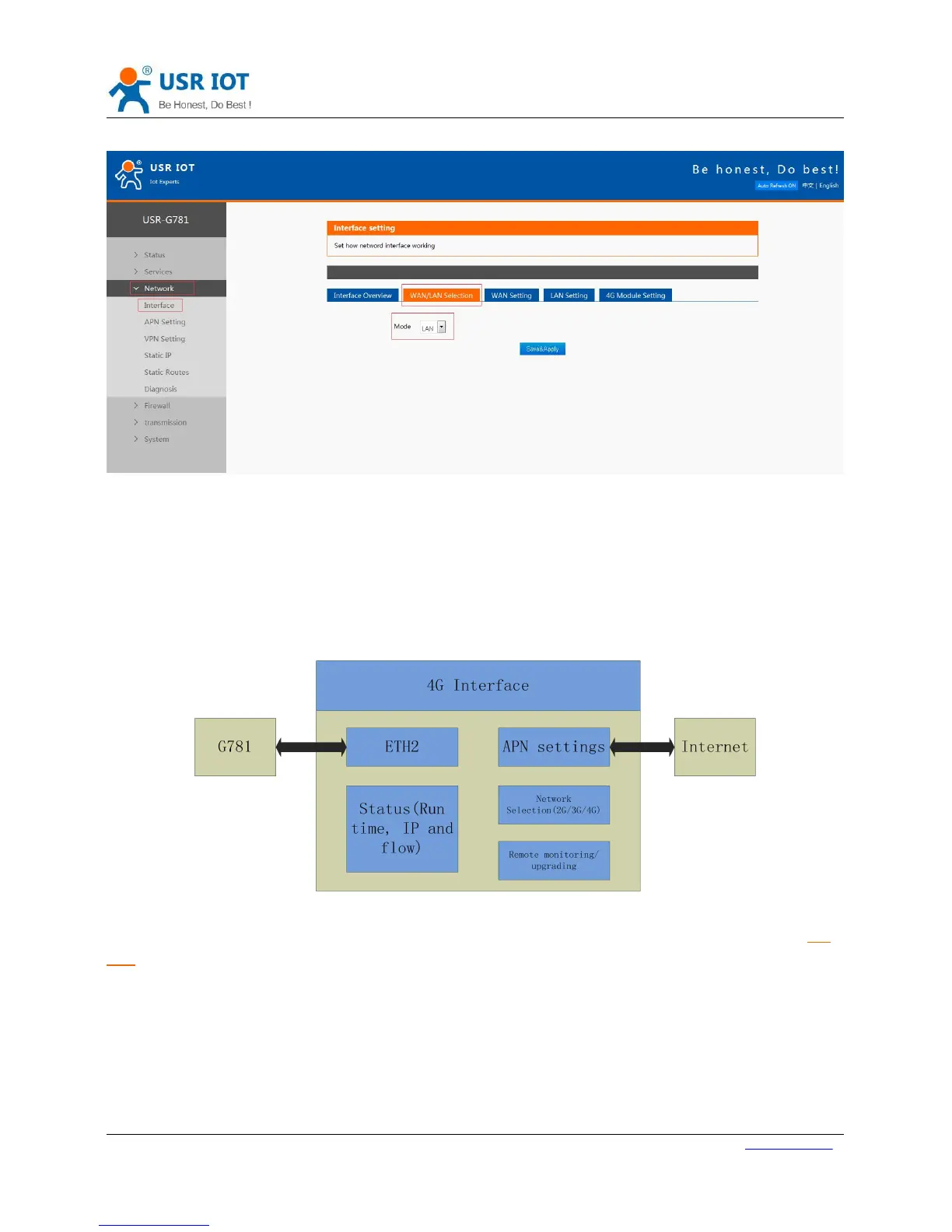

Figure 17 WAN/LAN interface switch
2.2.3. Features
2.2.3.1. 4G Interface
G781 support one 4G interface to connect Internet. Functional diagram as follows:
Figure 18 4G Interface
When user use 4G interface, the most important thing is to configure the APN parameters. User can refer to 2.1.
APN to configure the APN parameters.
2.2.3.2. LAN Interface
When user set WAN/LAN interface into LAN mode, G781 will have two LAN interface.
Default settings: Static IP address: 192.168.1.1; Subnet mask: 255.255.255.0; Open DHCP Server function.
