2.3. DTU Functions
This chapter introduces the DTU functions of USR-G781, as the following diagram shown, you can get an overall
knowledge of it.

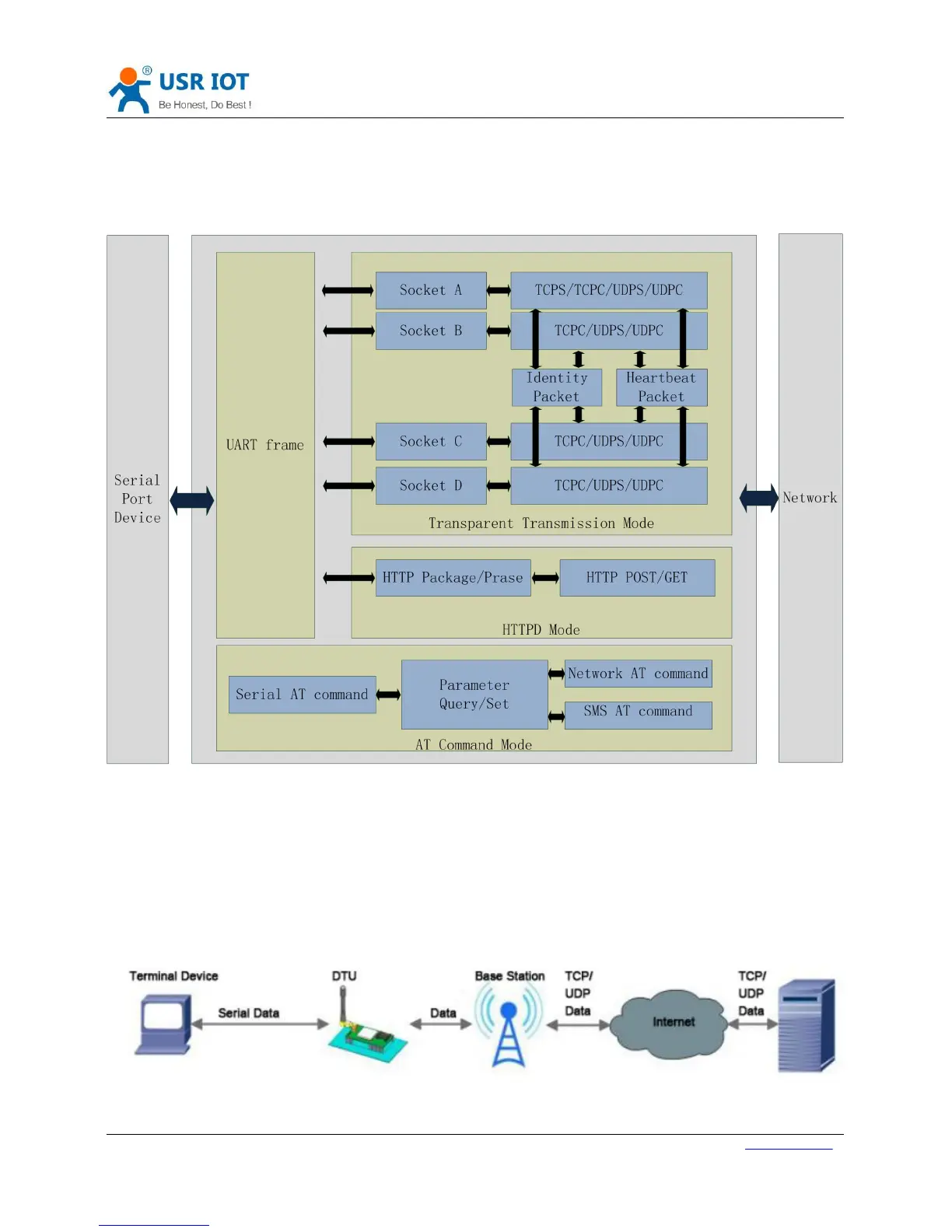

Figure 29 DTU functions diagram
2.3.1. Work Mode
2.3.1.1. Transparent Mode
Transparent Mode: What you sent to serial will be forward to network. The communication is bidirectional.
Figure 30 Transparent Mode
