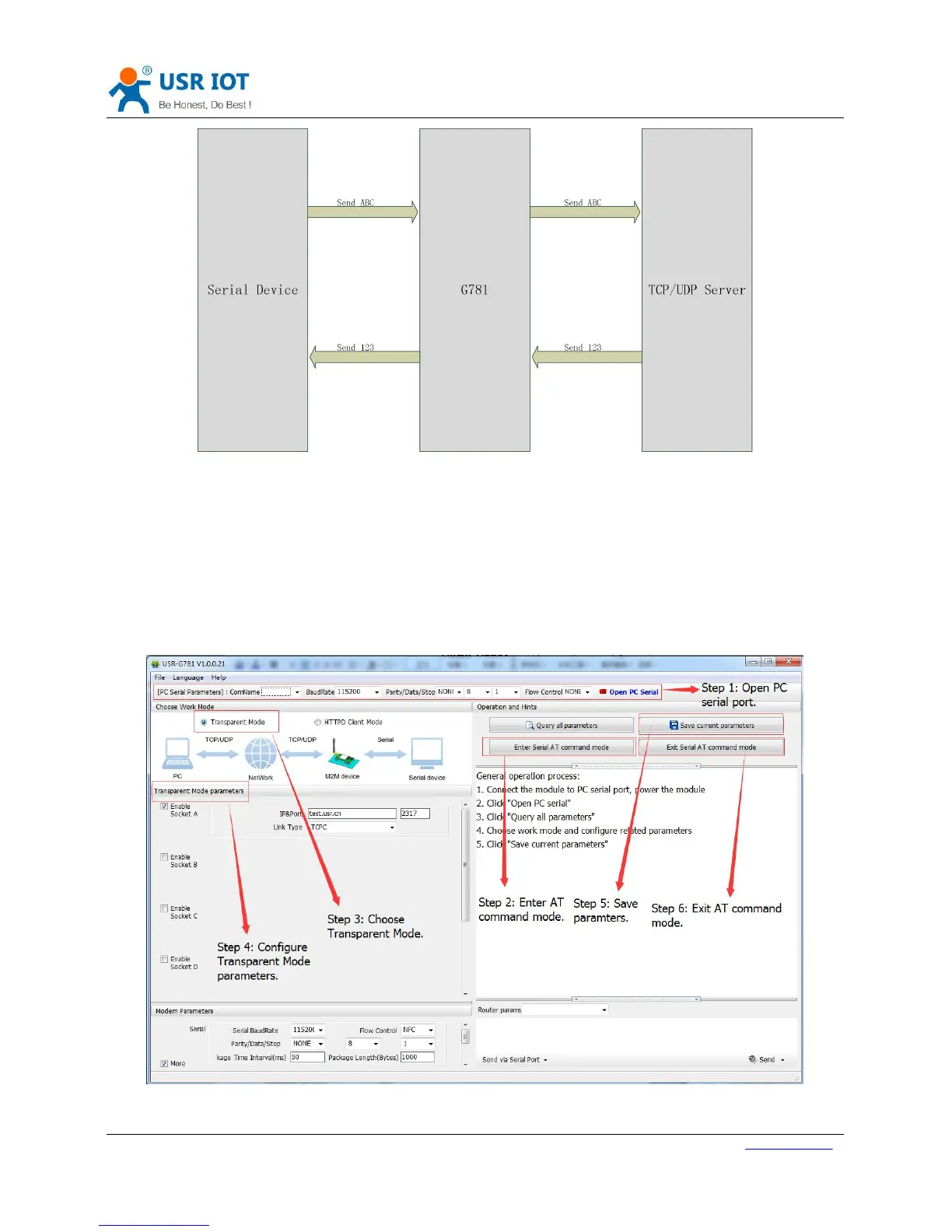

Figure 31 Transparent mode diagram
<Illustration>:
USR-G781 supports 4 socket connections simultaneously: socket A, socket B, socket C and socket D, they are
independent. Socket A supports TCP Server, TCP Client, UDP Server and UDP Client. Socket B, socket C and socket
D support TCP Client, UDP Server and UDP Client.
User can configure the Transparent Mode by setup software as follow:
Figure 32 Transparent Mode configuration
