USR-N540 User Manual www.usriot.com
Jinan USR IOT Technology Limited 64 / 73 inquiry@usriot.com

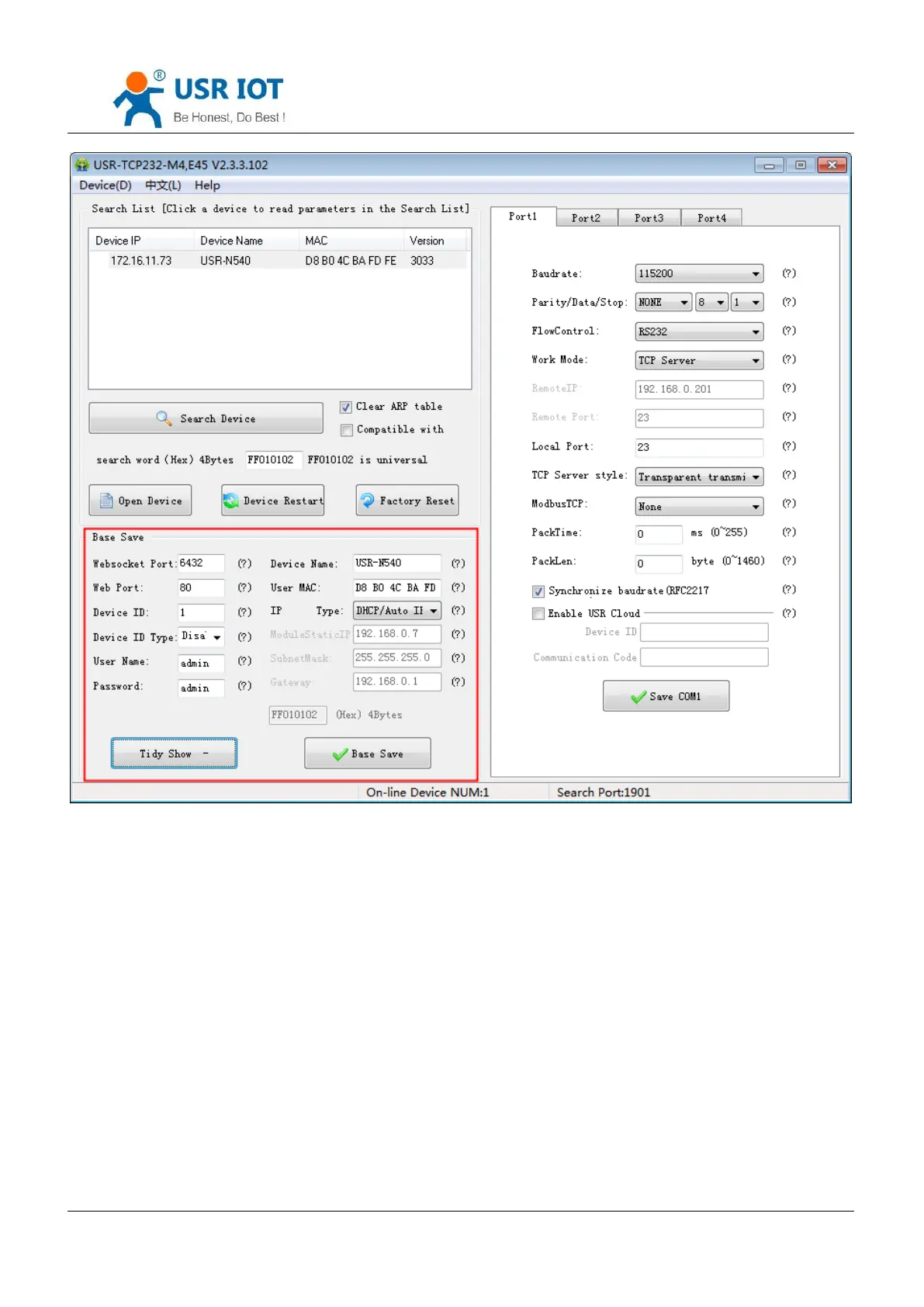

Software Configuration-Base Save
 Websocket port: refer to Chapter 4.1.8.3 Webpage to serial
 Webpage port: it is 80 by default when visit webpage.
 Device ID: refer to Chapter 4.1.8.6 Device ID
 Device ID type: sending ID type
 User name: Authentication Code for revising parameter to avoid other users within same LAN revising it.
 Password: same as user name.
 Device Name: USR-N540 ’s name an be revised.
 MAC address: USR-N540 ’ MAC
 IP address type: Static and DHCP
 USR-N540 static IP: same segment with router.
 Subnet Mask: 255.255.255.0 by default.
 Gateway: it is router IP generally, can transmit cross network segment and DNS if set correctly.
