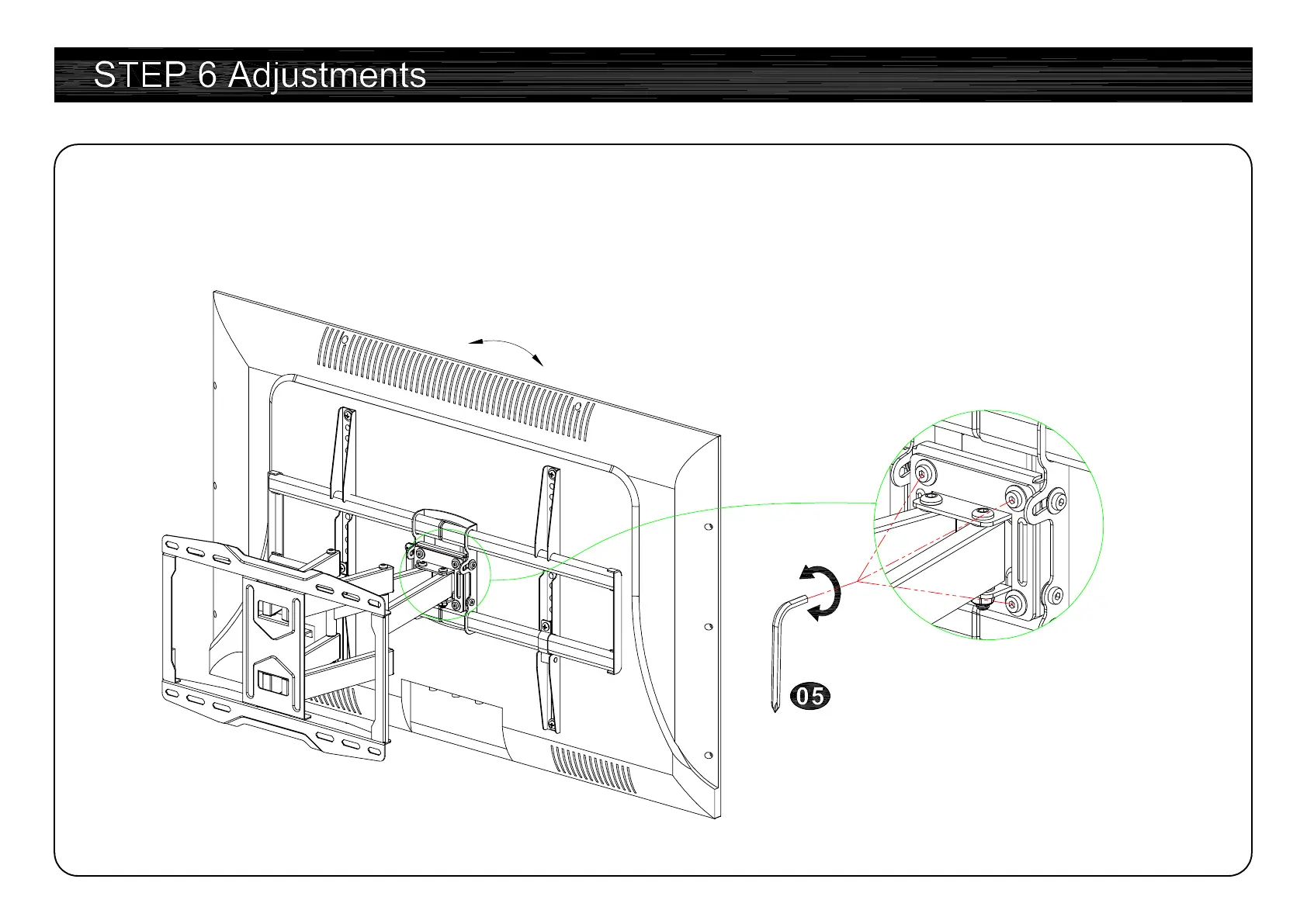

6-1 TV leveling adjustment (±4°):
Loosen 4 leveling bolts on the rear of TV plate by
maximum 2 turns, adjust to level, and retighten to secure.
16
Loosen
Tighten
±4°
