3/8"
(10mm)
2.36"(60mm)
11

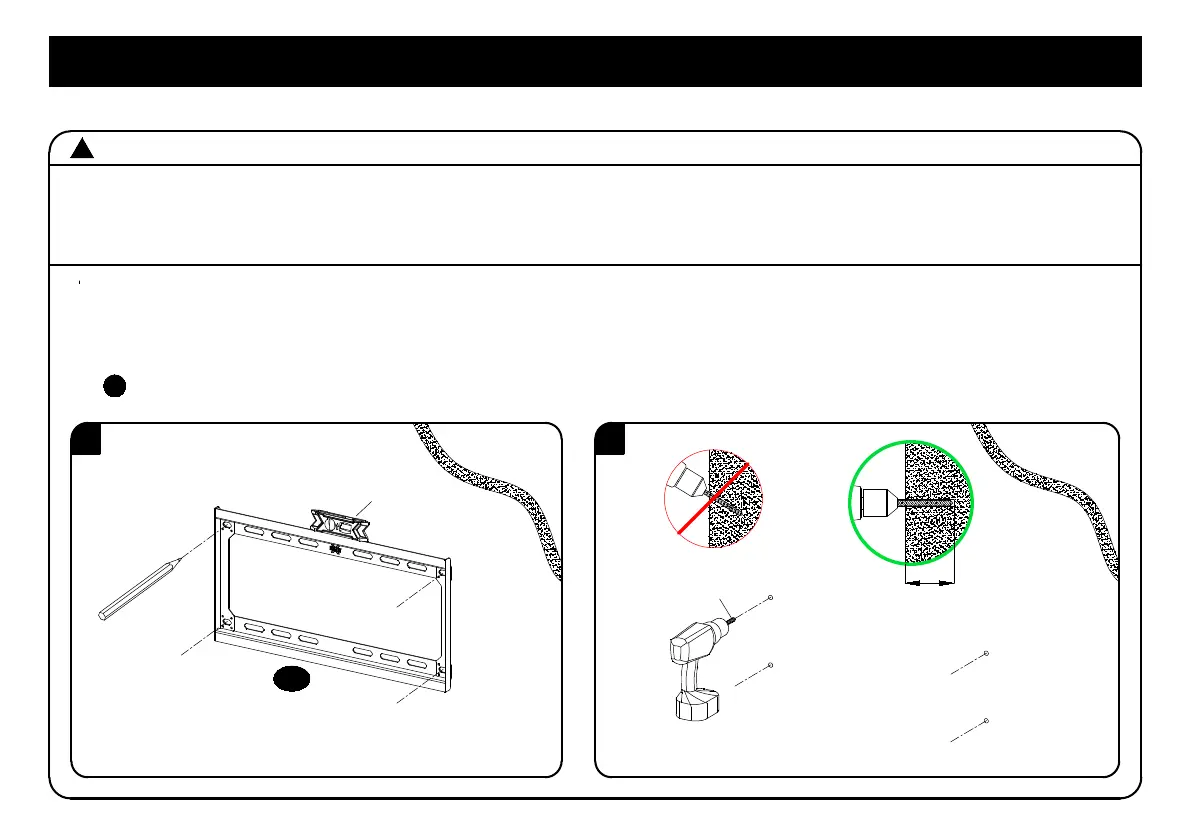

CAUTION: Avoid potential personal injury or property damage!
● Mount the wall plate assembly unit directly onto the concrete surface.
1. Position the wall plate unit on the wall at your desired height. Level the wall plate and mark the hole
locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.36 in. (60 mm).
● Minimum solid concrete thickness: 8 in. (203 mm).
STEP 2B Attach Wall Plate to Solid Concrete Wall
!
!
1 2
03
Level
To Next Page
