Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm).
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm).
● Maximum horizontal space between fasteners: 16 in. (406 mm).
● Stud center must be verified.

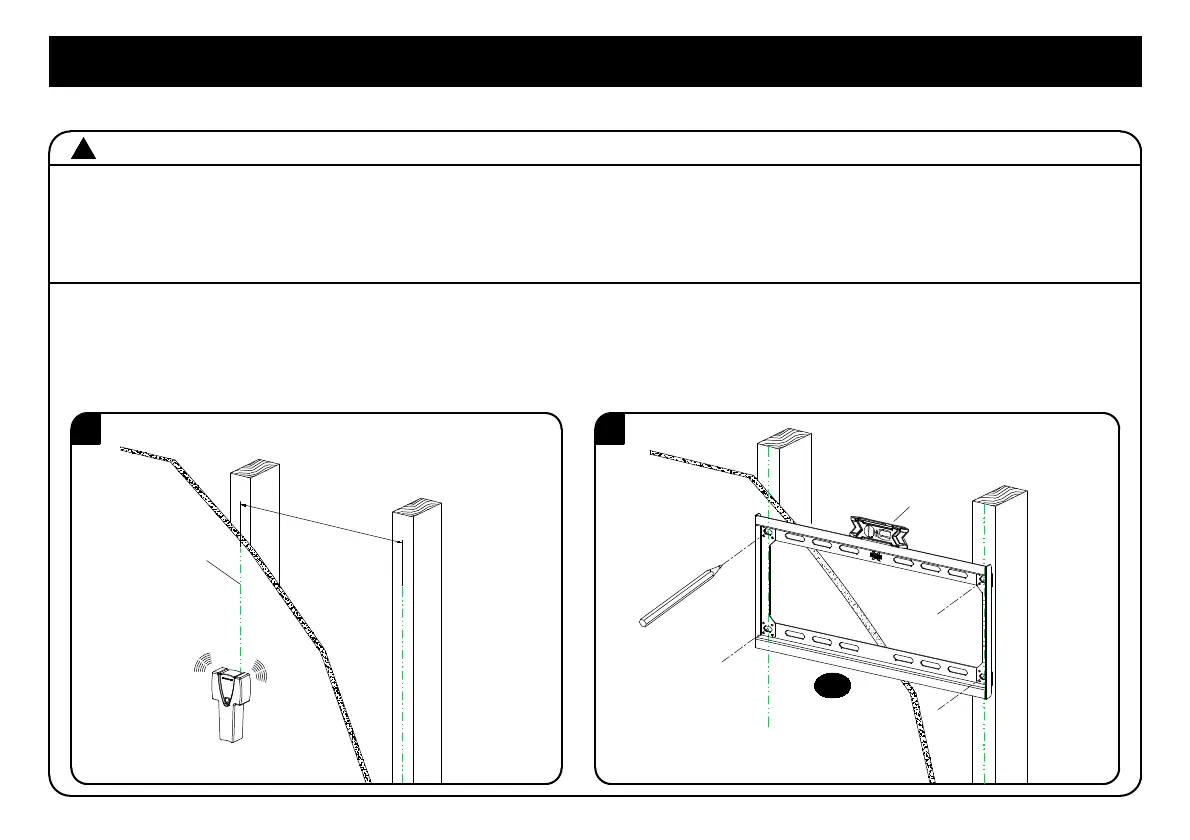

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the wall plate unit at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"
9
STEP 2A Attach Wall Plate to Wall Wood Stud Option
!
03
1 2
Level
