1-5-7 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Remove the outer covers (See page 1-5-3).
2. Remove three connectors.

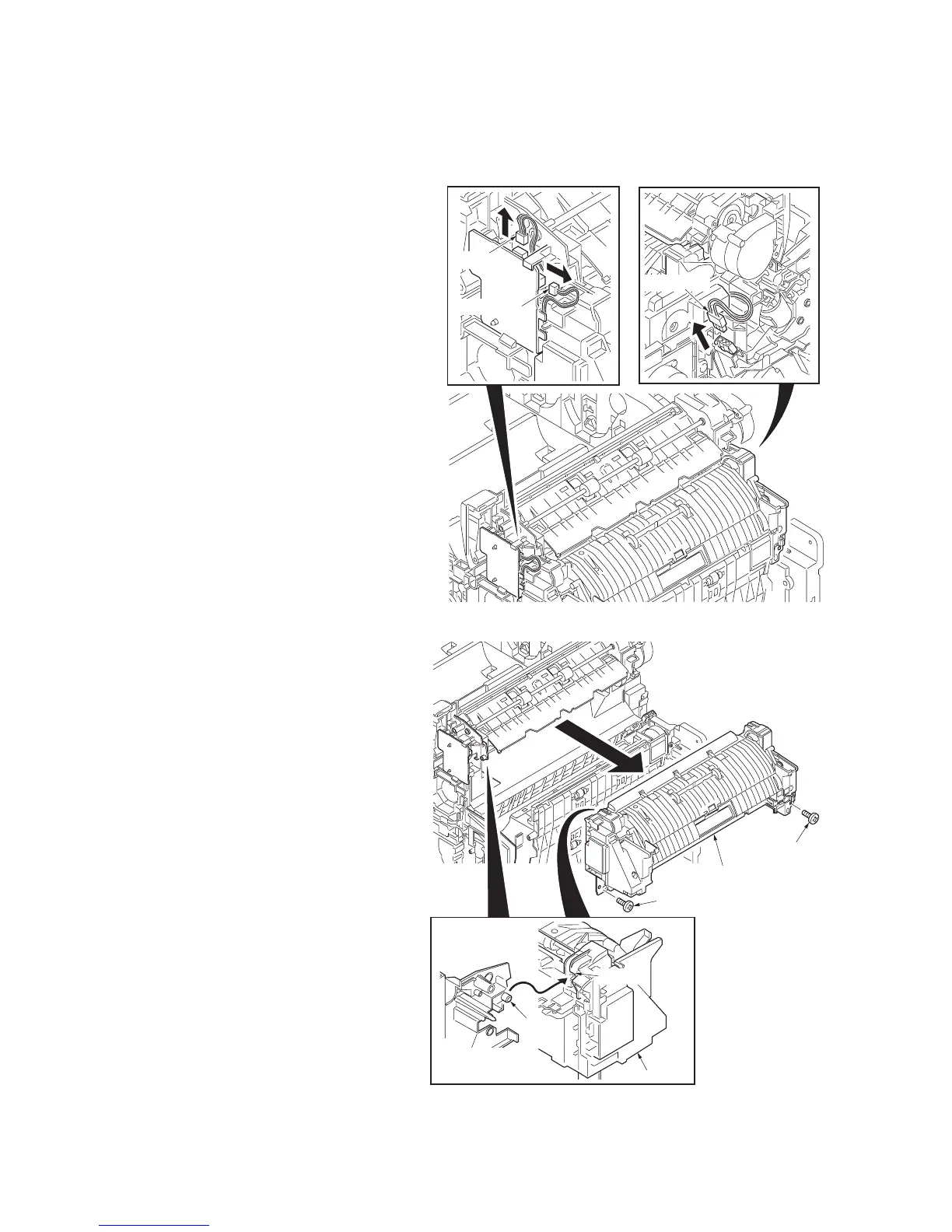

Figure 1-5-32
3. Remove two screws.
4. Unhook the hook and then remove the fuser
unit.
5. Check or replace the fuser unit and refit all
the removed parts.
Figure 1-5-33
Connector
Connector
Connector
Screw
Screw
Boss
Fuser unit
Fuser unit
Hook
