Utax CLP 3521 - Page 112

2HL/2HM/2HN
1-5-27
1-5-8 PWBs
(1) Detaching and refitting the power source PWB
Procedure
1. Remove the right rear cover (See page 1-5-
6).
2. Remove the three screws and then remove
the power source shield.

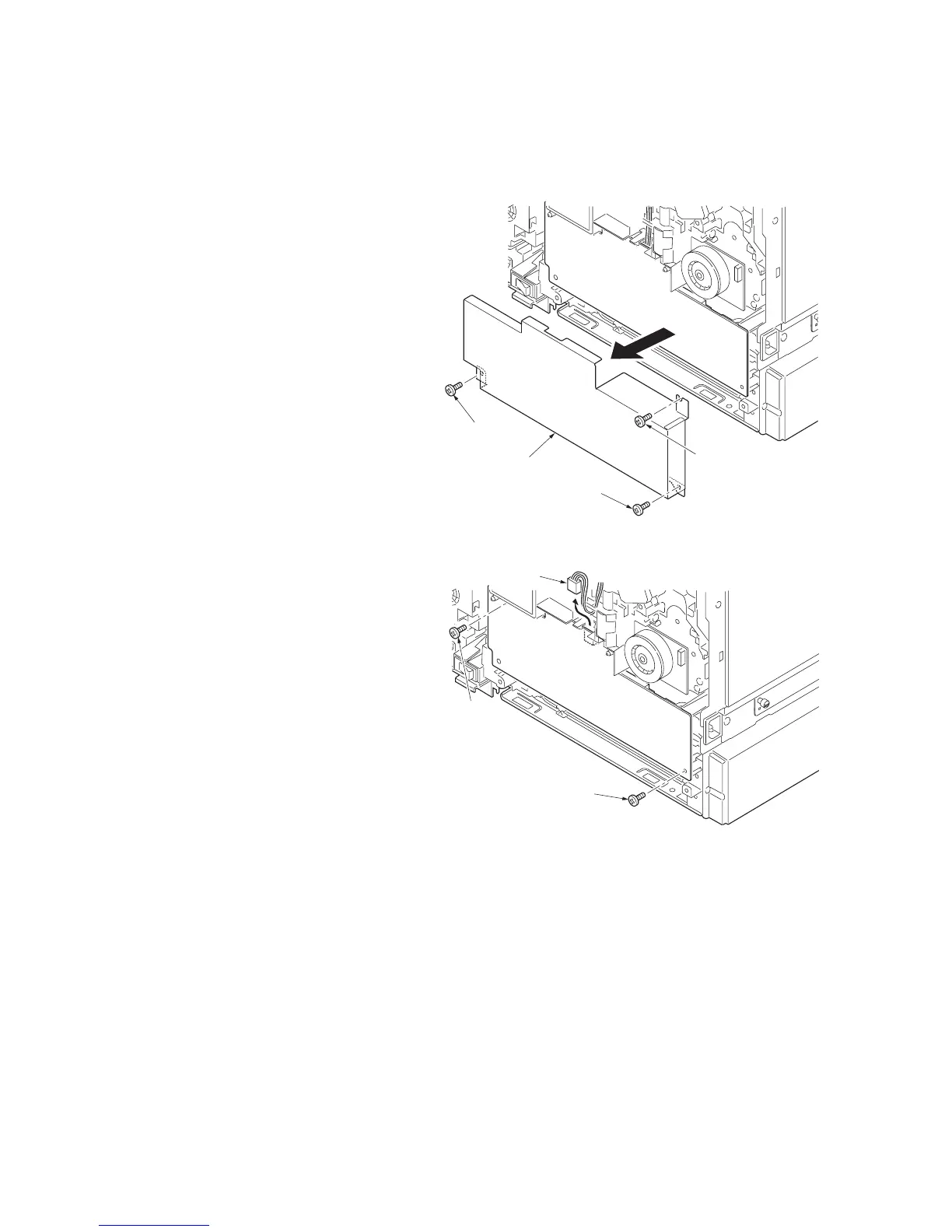

Figure 1-5-34
3. Remove the connector.
4. Remove the two screws.
Figure 1-5-35
Power source shield
Screw
Screw
Screw
Screw
Screw
Connector
