6. Remove the each three screws and then
remove the laser scanner units (MC,YK).
7. Check or replace the laser scanner units
and refit all the removed parts.

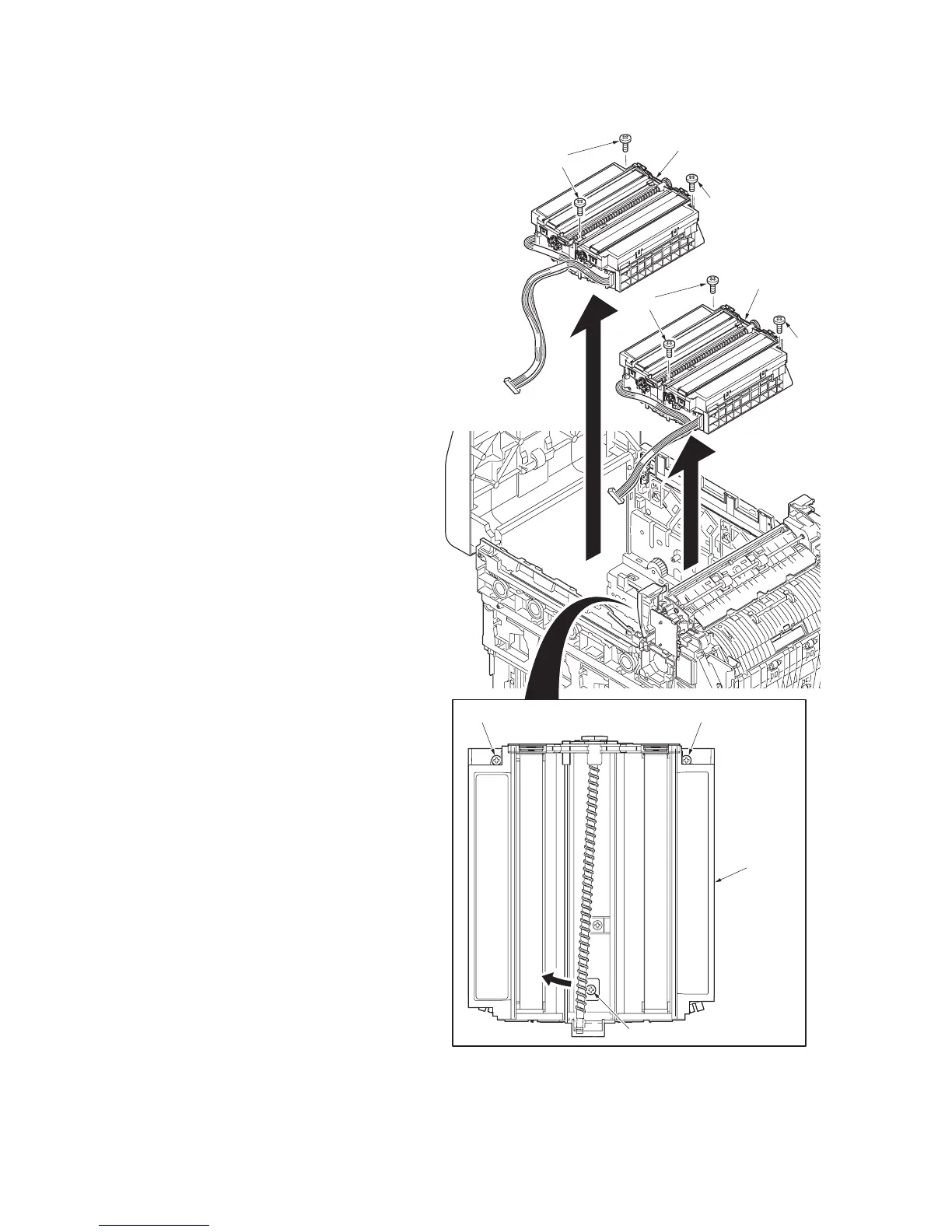

Figure 1-5-54
Screw
Laser
scanner
unit
Screw
Screw
Laser scanner unit MC
Screws
Screws
Laser scanner
unit YK
Screw
Screw
