2HL/2HM/2HN
2-1-4
(3) Paper conveying section
The paper conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or MP
tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the middle roller to the position where the
registration sensor is turned on, and then sent to the transfer/separation section by the front registration roller and rear
registration roller.

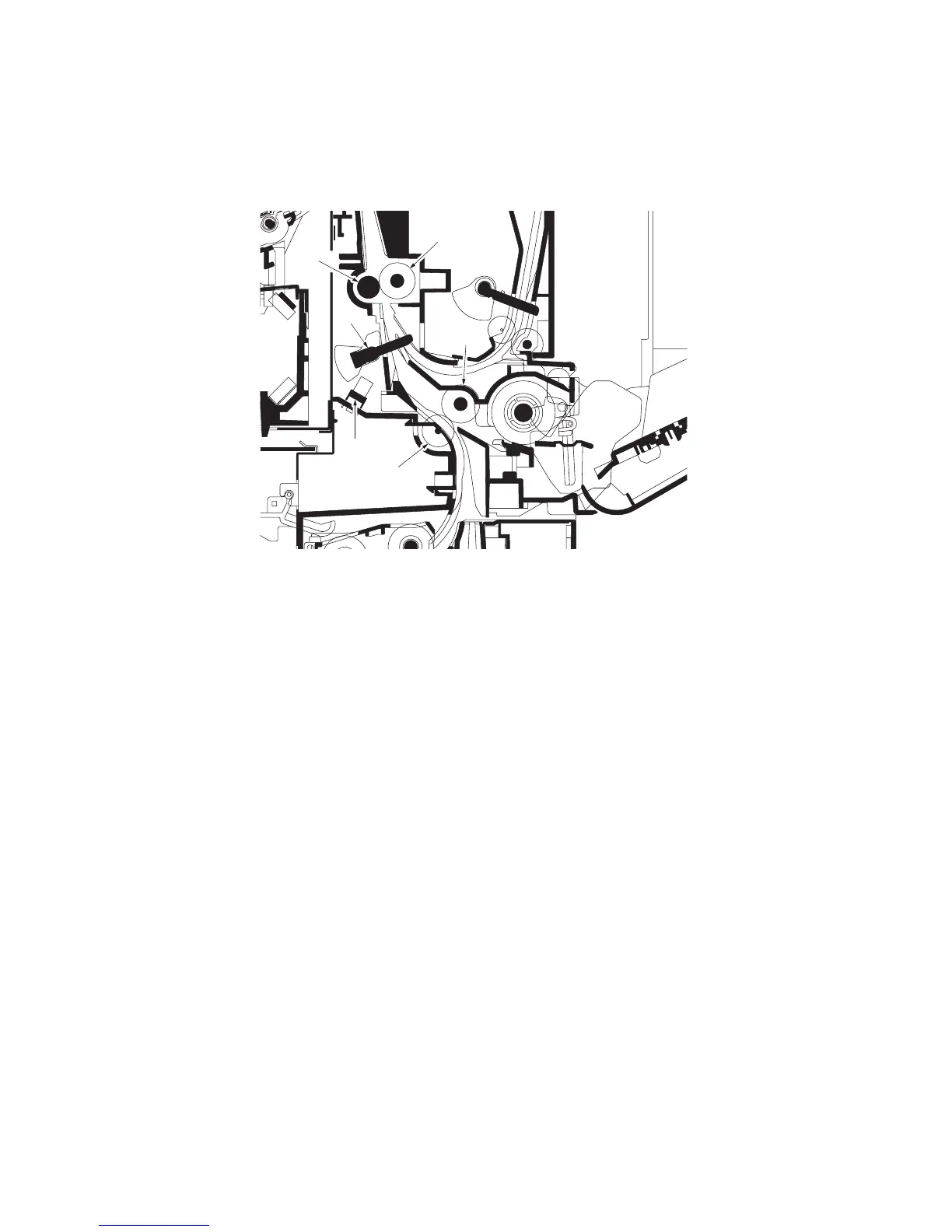

Figure 2-1-5 Paper conveying section
1
3
4
2
5
6
(1) Feed pulley
(2) Middle roller
(3) Registration sensor
(4) Actuator (registration sensor)
(5) Front registration roller
(6) Rear registration roller
