2HL/2HM/2HN
2-1-17
2-1-6 Fuser section
The paper sent from the transfer/separation section is interleaved between the heat roller and the press roller. The heat
roller is heated by the fuser heater lamp, and the toner is fused by heat and pressure and fixed onto the paper because the
press roller is pressed by the fuser press spring. The surface temperature of heat roller is detected by the fuser thermistor
and controlled by the engine PWB. If the fuser section shows extremely high temperature, the power line will be shut off
and the fuser heater lamp is forced to turn off.

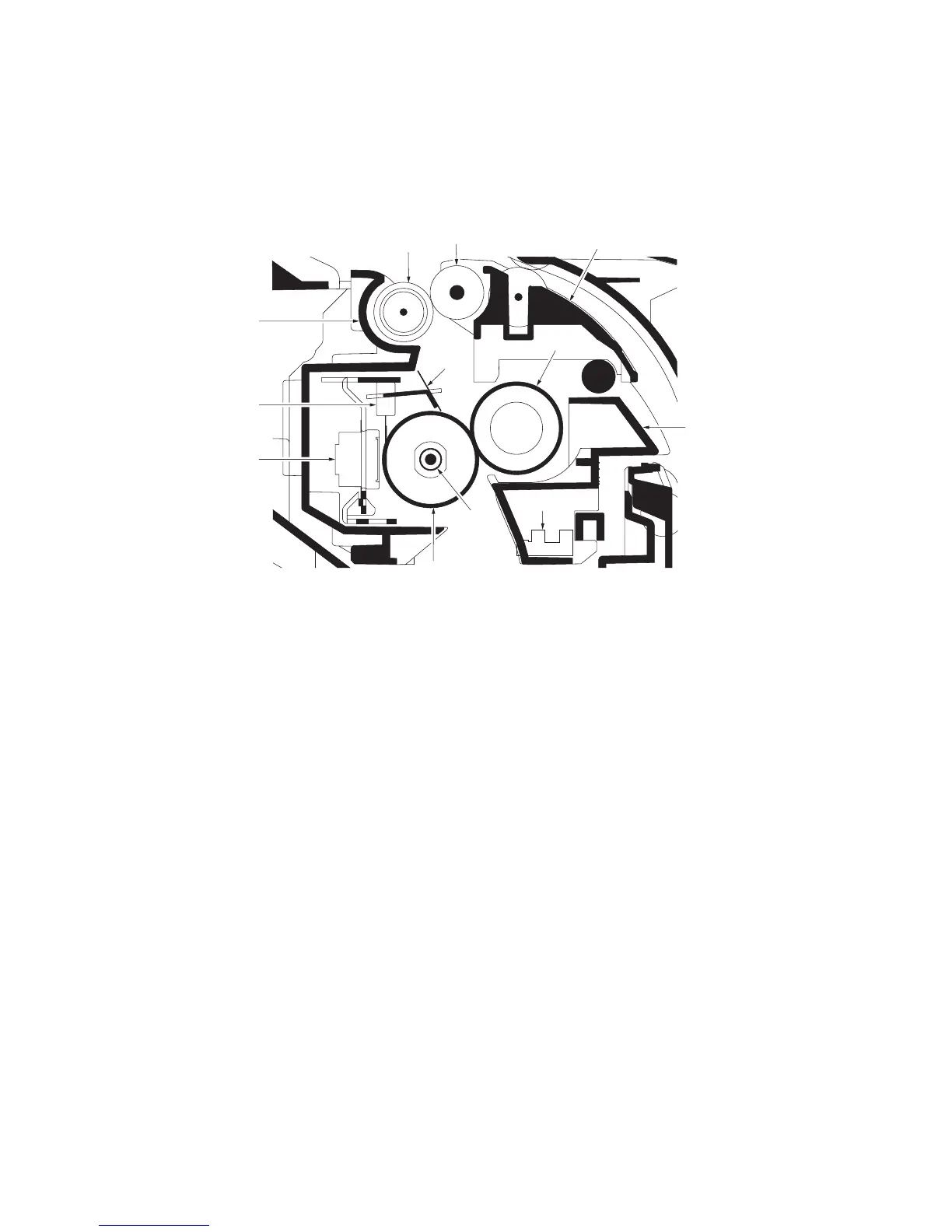

Figure 2-1-18 Fuser section
3
5
4
8
7
1
11
10
12
9
2
6
(1) Upper fuser frame
(2) Lower fuser frame
(3) Heat roller
(4) Press roller
(5) Fuser heater lamp
(6) Fuser thermal cutout
(7) Fuser thermistor
(8) Separators
(9) Paper exit guide
(10) Paper exit roller
(11) Paper exit pulley
(12) Envelope switch
