Chapter 3: Installation

20 Stratos EX Hazardous Area Aspirating Smoke Detection System Installation Manual

There is no substitute for carrying out smoke tests prior to installation of pipework

to indicate suitable sampling point location. Remember that cool smoke from an

incipient fire does not behave in the same manner as hot smoke.

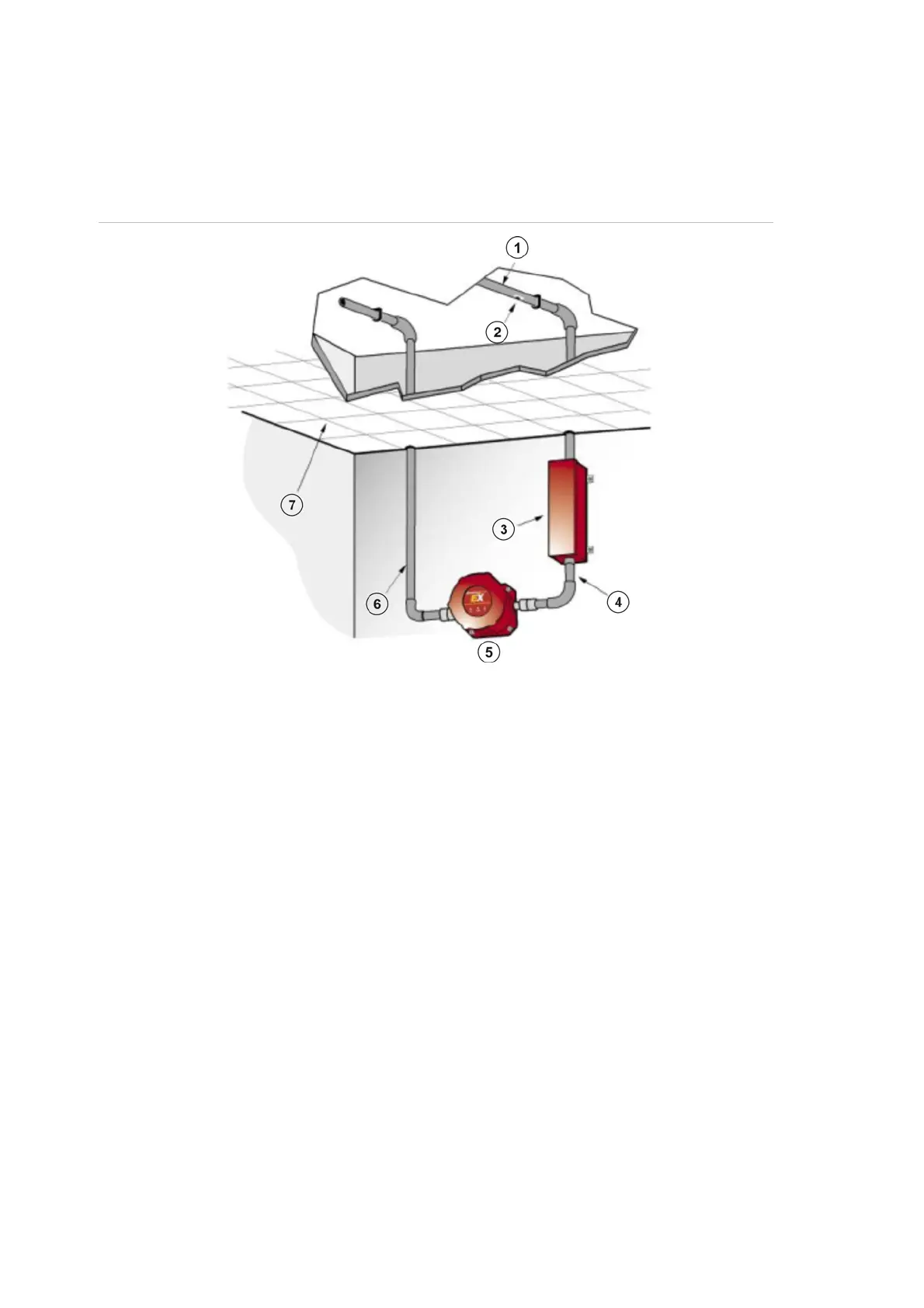

Figure 5: Locating the detector outside the area to be protected

(1) Earth bonded metallic sampling pipe

(2) Sampling hole

(3) Filter

(4) Inlet pipe

(5) EX detector

(6) Exhaust pipe

(7) False ceiling
