Chapter 3: Installation

Stratos EX Hazardous Area Aspirating Smoke Detection System Installation Manual 21

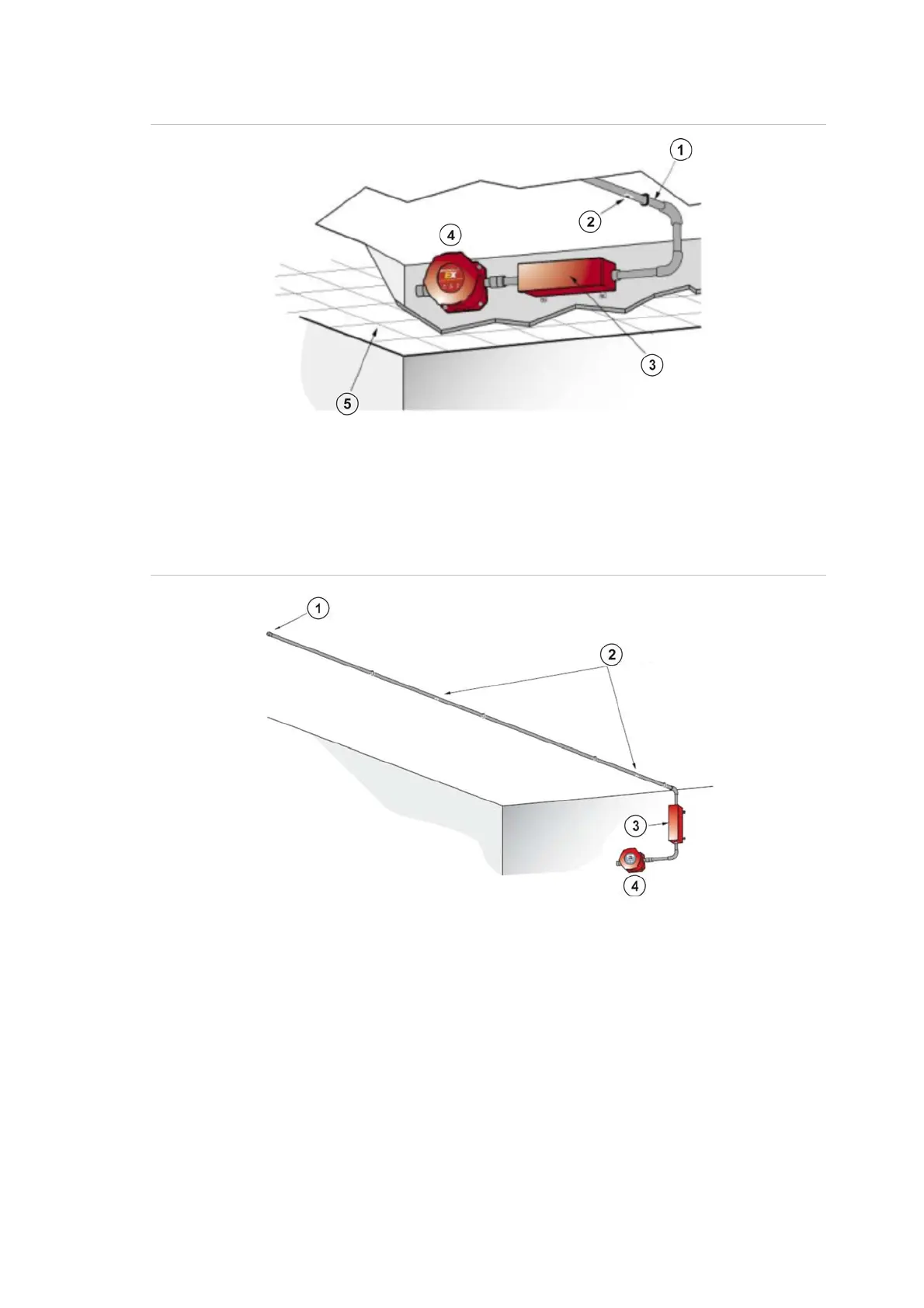

Figure 6: Locating the detector within the area to be protected

(1) Earth bonded metallic sampling pipe

(2) Sampling hole

(3) Filter

(4) EX detector

(5) False ceiling

Figure 7: Suggested maximum sampling pipework configurations

(1) End cap holes drilled to 7 mm diameter

(2) Sampling holes at 5 metre intervals

(3) Filter

(4) EX detector
