NAC wiring using CC1(S) modules
The following wiring diagrams show Signature Series CC1(S) module
connections. However, other Signature Series signal modules can be used.

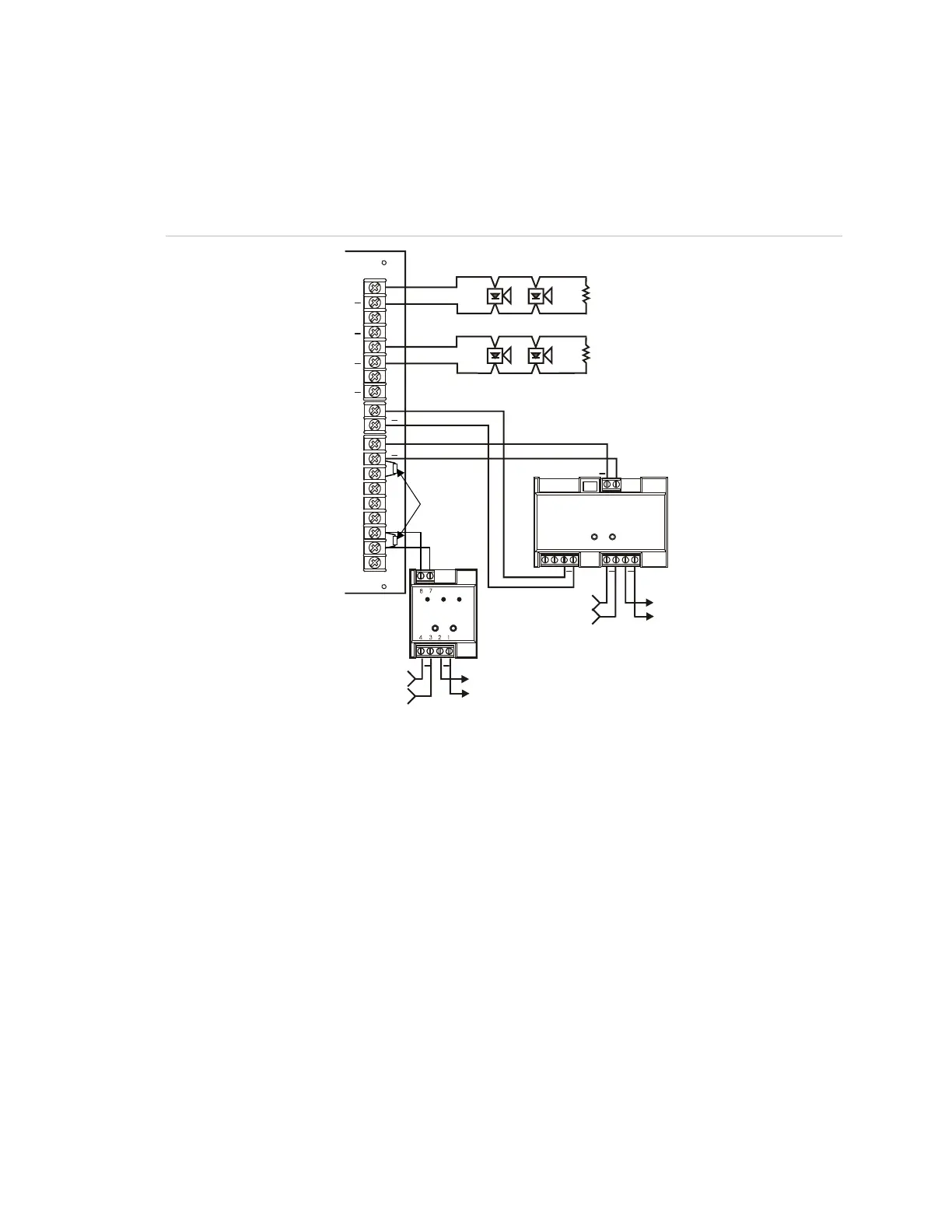

Figure 18: Single CC1(S) using the BPS’s 200 mA AUX continuous circuit
+
+
+++
TB2
TB1
TB5
(19)
(18)
+
(17)
4
8
3
7
2
6
10
1
5
9
++
+
+
CC1(S)
CT1
(21)
(20)
++
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(15)
(16)
Legend
(1) NAC1/AUX1
(2) NAC2/AUX2
(3) NAC3/AUX3
(4) NAC4/AUX4
(5) 200 mA AUX Continuous
(6) Sense 1 IN
(7) Sense 1 COM
(8) Sense 1 OUT
(9) Sense 2 IN
(10) Sense 2 COM
(11) Sense 2 OUT
(12) Trouble NO
(13) Trouble COM
(14) Trouble NC
(15) Notification appliance circuit (NAC)
(16) UL listed EOL 15 k
(17) EOL 47 k
(18) Data in from previous device or
Signature controller
(19) Data out to next device
(20) Data in from previous device or
Signature controller
(21) Data out to next device
