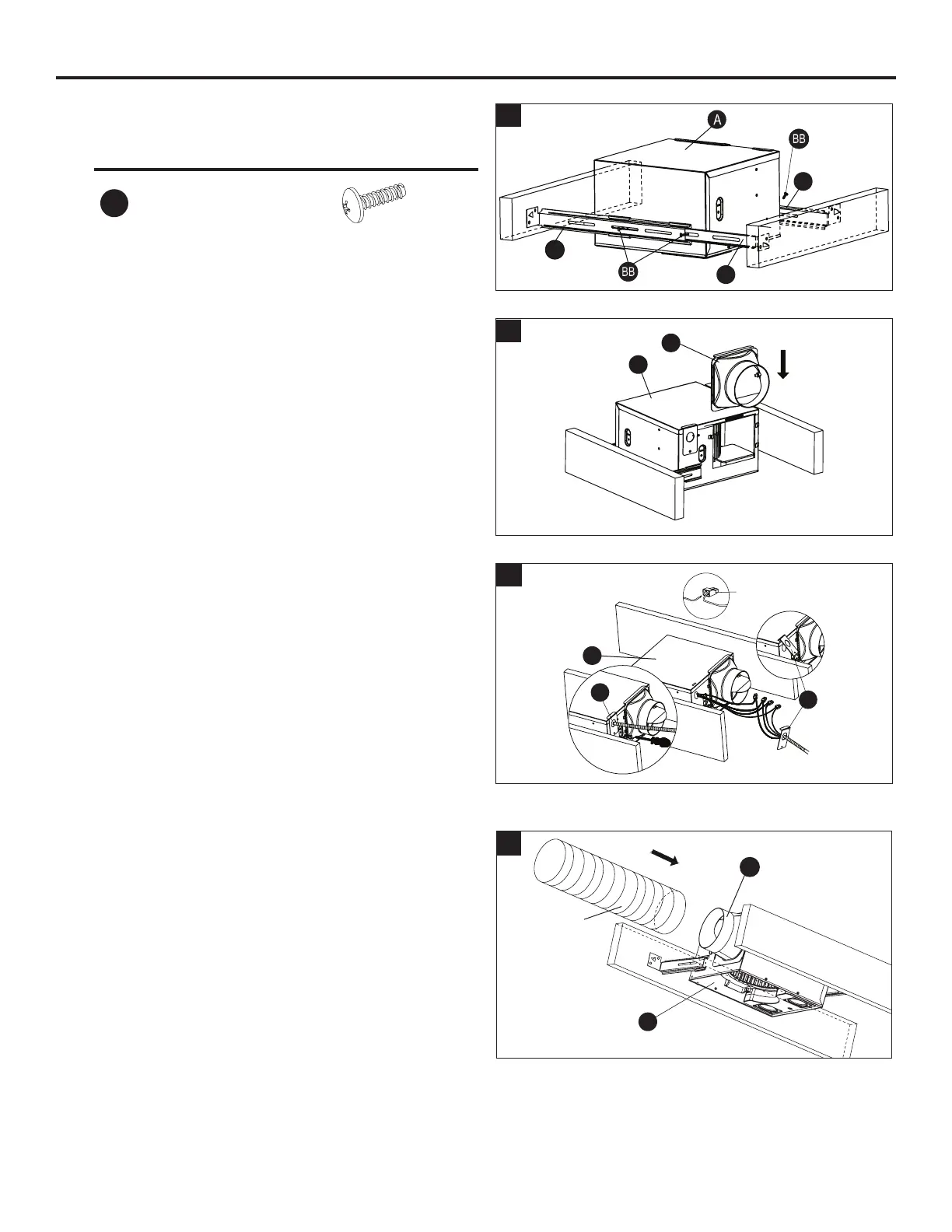

INSTALLATION INSTRUCTIONS (Continued)
9. Secure the suspension brackets (E, F, G) to the fan
housing (A) using the small machine screws (CC).
Hardware Used
CC
Small machine screw x 3
9
D
C
E
10. Slide the duct connector (H) into the tabs on the fan
housing (A) until the duct connector (H) snaps rmly
into place over the opening in the fan housing (A).
NOTE: Remove the protective tape on the duct
connector (H) ap.
10
A
H
11. Remove the wiring box cover from the fan housing (A).
Pull the house wires through the hole in the wiring box
cover (11.1). Using the quick connectors, connect the
house wiring from the wall switch to the fan housing (A).
14 AWG is the smallest conductor that should be used for
branch circuit wiring. Please refer to the wiring diagram on
page 5 to ensure proper wire connections are made.
Carefully push the wire connections into the wiring box and
reattach the wiring box cover (11.1).
CAUTION: If the electrical wires do not match the colors
listed, you must determine what each house wire
represents before connecting the wiring. You may need
to consult an electrical contractor to determine how to
make the electrical connections safely.
11
Quick
connector
A
12. Connect a 4 in. circular duct to the duct connector (H) on
the fan housing (A), securing it with duct tape or a clamp.
Vent the duct to the outside.
A
12
4 in. Circular
duct
11.1
11.1
H
