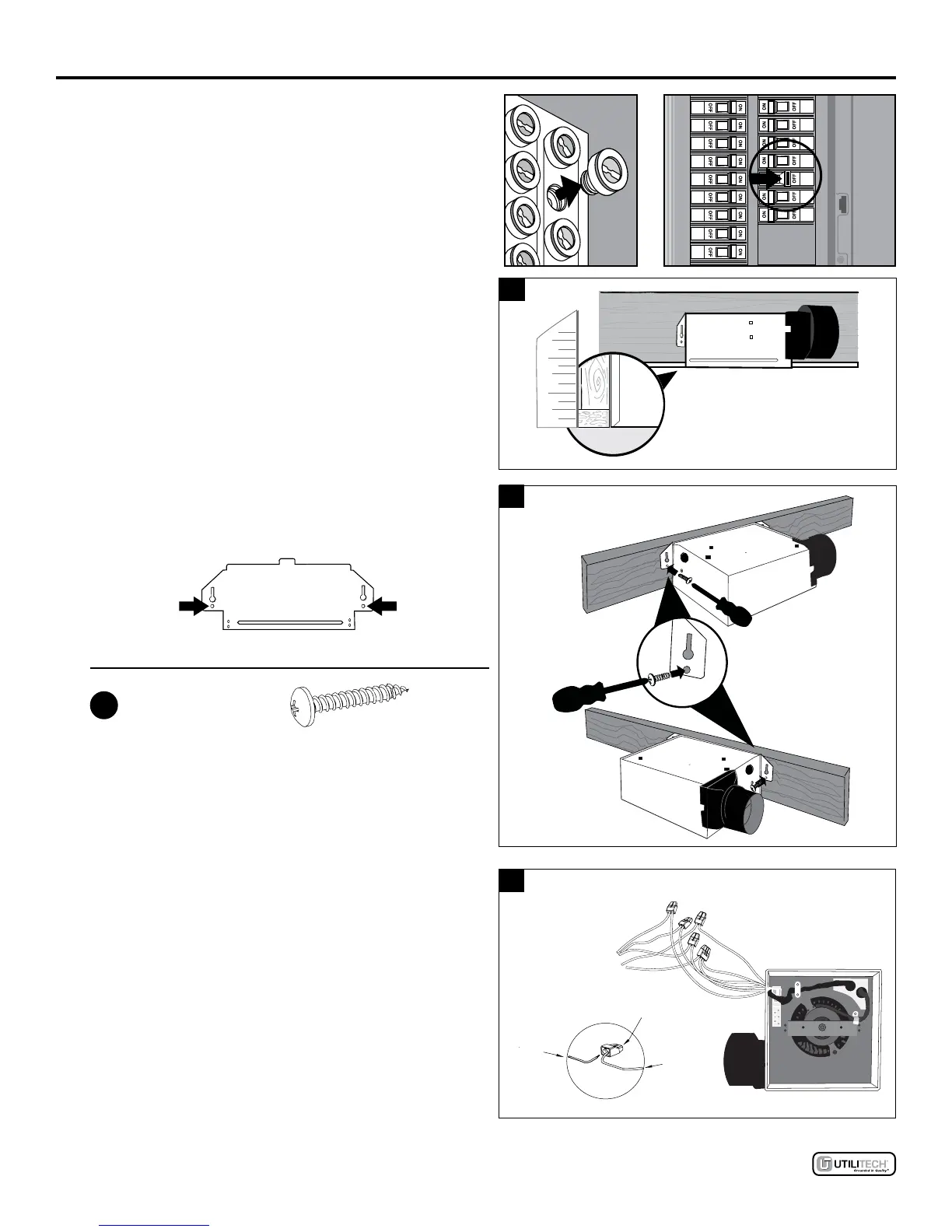

NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS
NEW CONSTRUCTION – ATTACHING TO THE
JOIST
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
1. Place the fan body (A) next to a ceiling joist or
wall stud. The fan housing should be level and
perpendicular to the joist or stud. Allow for
thickness of ceiling board used in your applica-
tion. DO NOT ush mount to joist. Bottom of fan
(A) should be ush with ceiling board.
2. Mount fan body to the joist or stud using long
wood screws (AA) where indicated by arrows
outside fan body (A).
Hardware Used
AA
Long wood screws x 4
3. Pull wire through hole (5.1) and into junction box
(not included). Using quick connector, secure
120-volt AC house wiring from wall switch to fan
as shown in wiring diagram on page 5.
Note: 12 AWG is the minimum conductor to be
used for branch-circuit wiring.
CAUTION: If your electrical wires do not match
the colors listed, you must determine what each
house wire represents before connecting. You
may need to consult an electrical contractor to
determine safely.
1 2
1
2
3
Quick connector
House
wires
Product
wires
To Next Page
