V-TEK DT607C-S1 - Wiring; Connecting Electric Lock

-9-

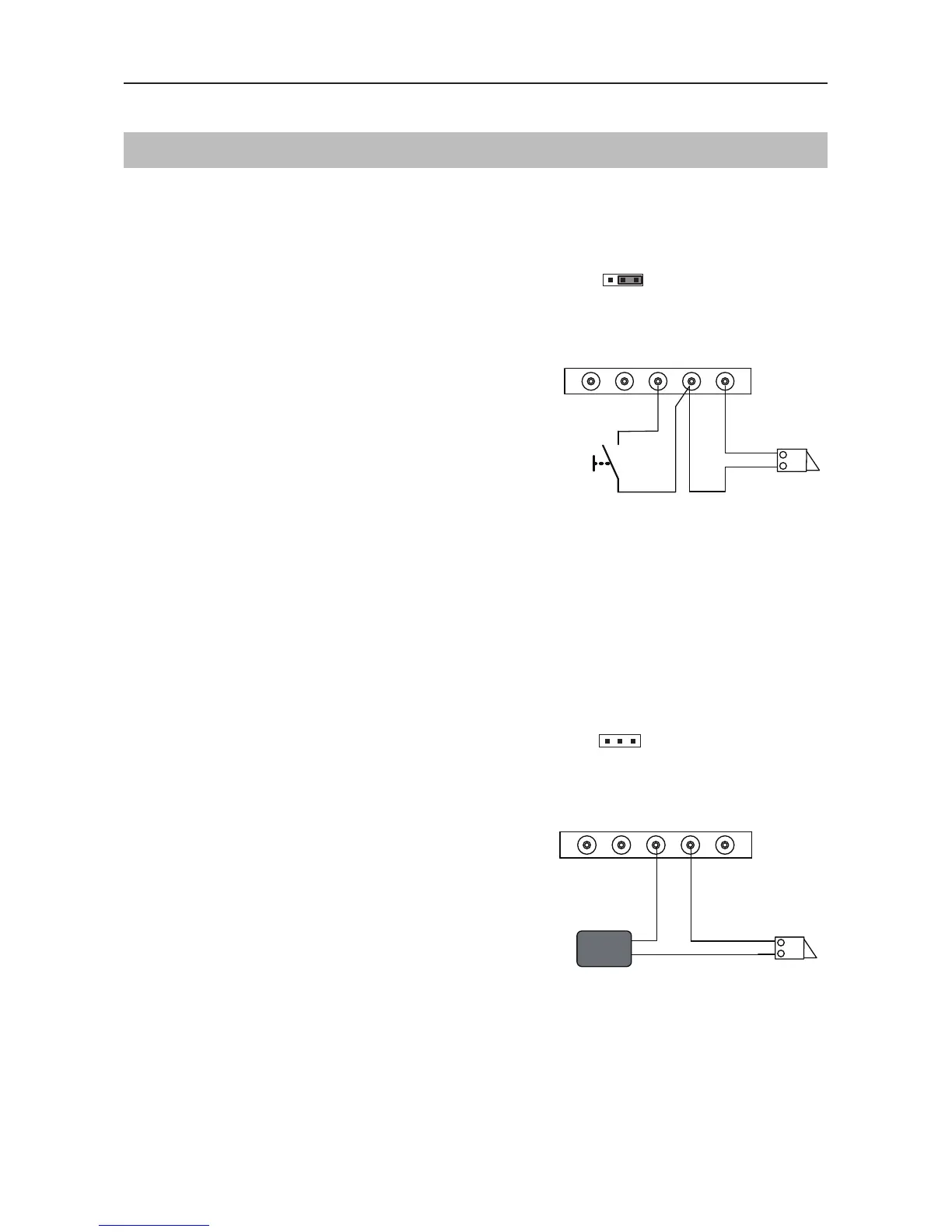

Connecting Electric Lock
Door Lock Controlled with Internal Power
Door Lock Controlled with Dry Contact
1.Electronic lock of Power-on-to-unlock
type should be used
2.The door lock is limited to 12V, and
holding current must be less than
250mA
3.The jumper should be placed on position
2 and 3 before connecting the lock
4.The door lock control is not timed from
Exit Button(EB). Can be timed with
additional RLC Lock Control Interface
5.The
Unlock Mode
must be set to 0
(default)
1.The external power supply must be used
according to the lock specs
2.The inside relay contact is restricted to
230Vac 1A or 24Vdc 1A
3.The jumper must be taken off
before connecting the lock
4.Set the
Unlock Mode
according to
different lock types:
• Power-on-to-unlock type:Unlock
Mode=0 (default)
• Power-off-to-unlock type:Unlock
Mode=1
EB
*
LOCK
Jumper position on 2&3
1 2 3
L1 L2 PL S+ S-
Take off the jumper
1 2 3
L1 L2 PL S+ S-
LOCK
POWER
SUPPLY
WIRING
* DT-RLC Lock Control Interface is needed to connect second lock or to make EB timed
