-2-

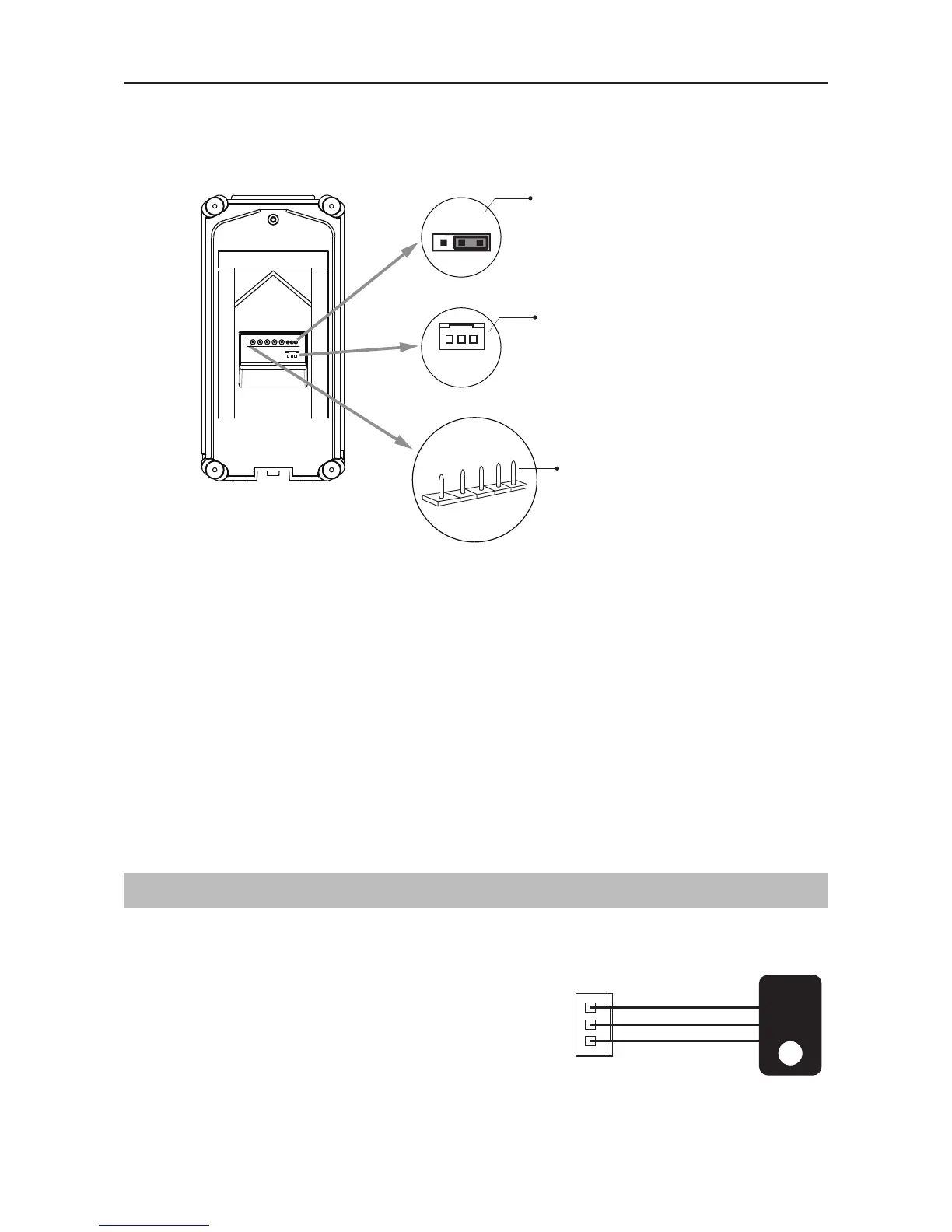

PARTS AND FUNCTIONS
Terminals description
Lock Control Jumper:
To set lock type
Motion Detector Connection Port:
To connect external PIR motion
detector
Main Connection Port:
To connect the bus line and the electric lock
• L1,L2: Connect bus line, no-polarity
• PL: External lock power input, connect to the power positive (power +).
• S+: Lock power(+) output
• S-: Lock power(-) output, connect to the power(-) input of lock(only when lock is powered
from the Door Station)
1 2 3
Lock Control Jumper
PIR Motion Detector
Connection Port
+12V
GND
PIR
L1
L2
PL
S+
S-
Main Connection Port
External Motion Detection
The door station is equipped with a terminal to
connect external motion detector sensor
If the external motion detector is connected to
the system and it detect someone passing by, it
will turn on security light. Additional DT-RLC is
required
12V
Motion
