4.12 - ELECTRICAL CONNECTION
J1 START - Open command for connecting
traditional devices with N.O. contact
m WARNING: If you use maintained
command devices (magnetic loop detectors,
timers, presence detectors, etc.) clock mode
must be used (parameter Strt = oroL).
J2 START P. - Pedestrian open command for
connecting traditional devices with N.O. contact
m WARNING: If you use maintained
command devices (magnetic loop detectors,
timers, presence detectors, etc.) clock mode
must be used (parameter Strt = oroL).
J3 STOP command. N.C. contact
J4 Common (-)
J5 Photocell 1. N.C. contact
J6 Photocell 2. N.C. contact
J7 Type 1 edges. N.C. contact
J8 Type 2 edges. N.C. contact
J9 Accessories common (-)
E1 +24Vdc supply for photocells and other
accessories
E2 Accessory power common (-)
E3 +24Vdc supply - photocell/optical edge TX for
functional Test.
Connect power supply cables of photocells
transmitter between terminals E2 and E3
E4 - E5 Warning light or flashing light (24V)
A1 Antenna shield
A2 Antenna
B1 - B2 Courtesy or flashing lights (230V/120V)
L Power phase 230V/120V
N Neutral 230V/120V
BATTERY Battery pack (code 161212)
RECEIVER Connector for MRx receiver
ADI ADI Module interface
OVERLOAD It shows that there is an overload on accessories
power supply
MAINS It shows that the control unit is power supplied
M Motor
LIMIT
SENSOR
Limit sensor
ENCODER Encoder
24 Vdc
POWER
SUPPLY
Control unit power supply (+24 VDC)
4.11 - ADI INTERFACE
The ADI (Additional Devices Interface) interface of the control unit
PD14 allows the connection to V2 optional modules.
Refer to V2 catalogue or to the technical sheets to see which
optional modules with ADI interface are available for this control
unit.
m WARNING: Please read the instructions of each single
module to install the optional modules.
For some devices, it is possible to configure the mode for
interfacing with the control unit; in addition, it is necessary to
enable the interface so that the control unit can process the
signals arriving from the ADI device.
Please refer to the i.Adi programming menu to enable the ADI
interface and access the device configuration menu.

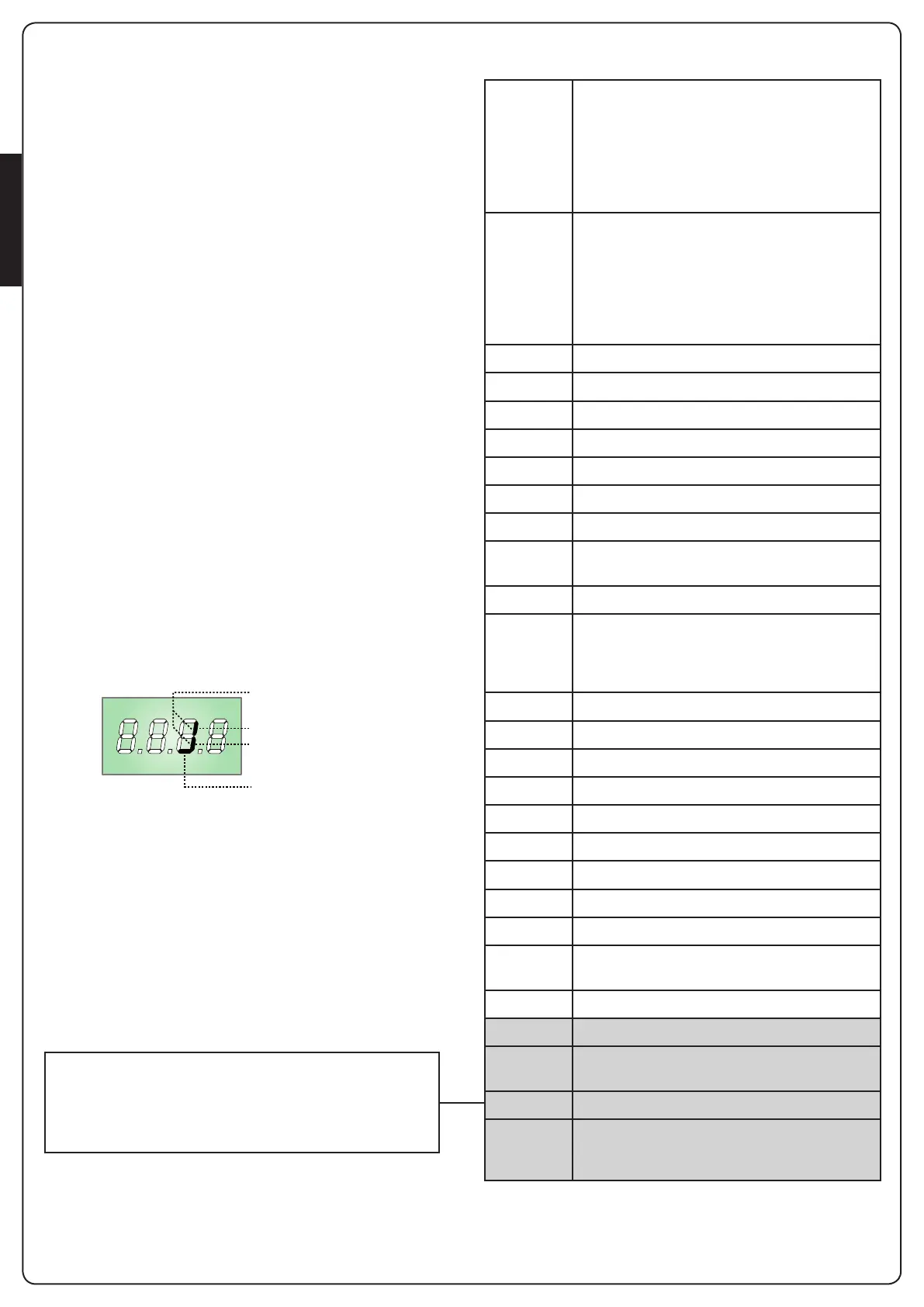

ADI devices use the display of the control unit to issue alarms or
display the configuration of the control unit.
The device connected to the Adi interface is able to signal to the
control unit three alarm signals, which are displayed on the
control unit display as follows:
• PHOTOCELL ALARMS - the upper segment comes on: the gate
stops moving, when the alarm stops opening restarts.
• EDGE ALARM - the lower segment comes on: inverts motion of
the gate for 3 seconds.
• STOP ALARM - both segments start flashing: the gate stops
and cannot restart until the alarm stops.
• SLAVE - segment steadily lit: it is used by the optional module
SYNCRO to indicate that the control unit is configured as
SLAVE.
PLEASE NOTE: the highlighted connections are factory
pre-wired
m CAUTION: Never reverse the connectors
PHOTOCELL ALARM
STOP ALARM
EDGE ALARM
SLAVE
