ENGLISH
- 35 -
97 mm
2 mm
>5 mm
D

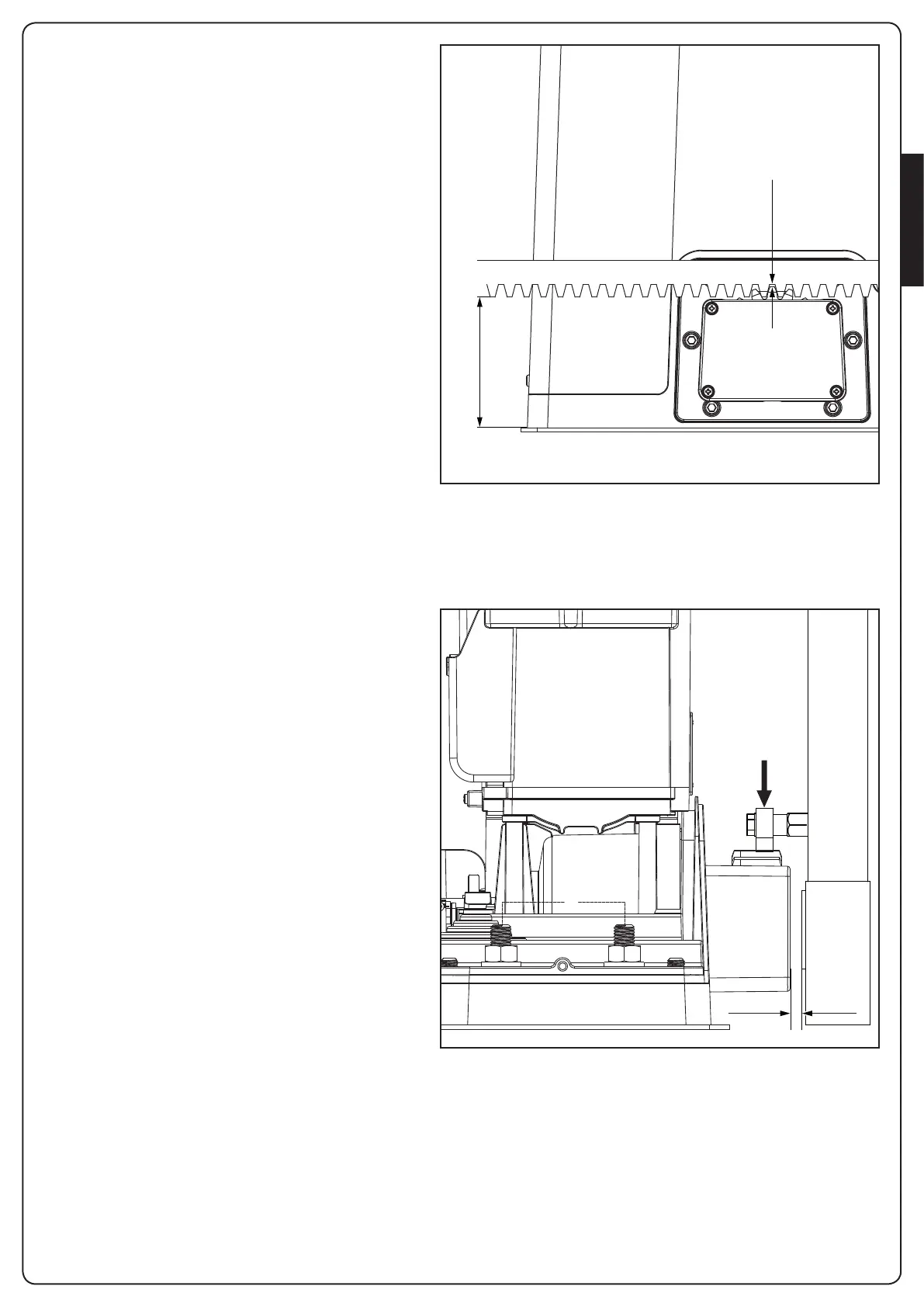

3.2 - MOUNTING THE RACK
1. Release the motor and turn the gate completely open.
2. Fix all the rack elements to the gate, making sure that
they stand at the same height than the motor pinion.
The rack MUST BE positioned 1 or 2 mm over the
pinion of the motor all the gate length.
3.3 - FIXING OF THE MOTOR
Check the following points:
1. the motor must be on a levelled surface and perfectly
parallel to the gate
2. the distance between pinion and rack must be
1 or 2 mm. If needed, adjust the 4 grains
3. the rack must be trued up with the pinion of the motor
4. the minimum distance between the maximum overall of
the gate and the case of the pinion of the motor must
be of at least 5 mm
5. Check the above indicated conditions and proceed
fixing the 4 bolts D anchoring the motor to the plate.
