3.4 - INSTALLING THE MAGNETIC LIMIT
SWITCHES
m WARNING: For your safety, it is necessary that the gate
is equipped with mechanical stoppers.
If the gate is not equipped with these stoppers, an erratic
movement past the range limit may cause the gate to fall.

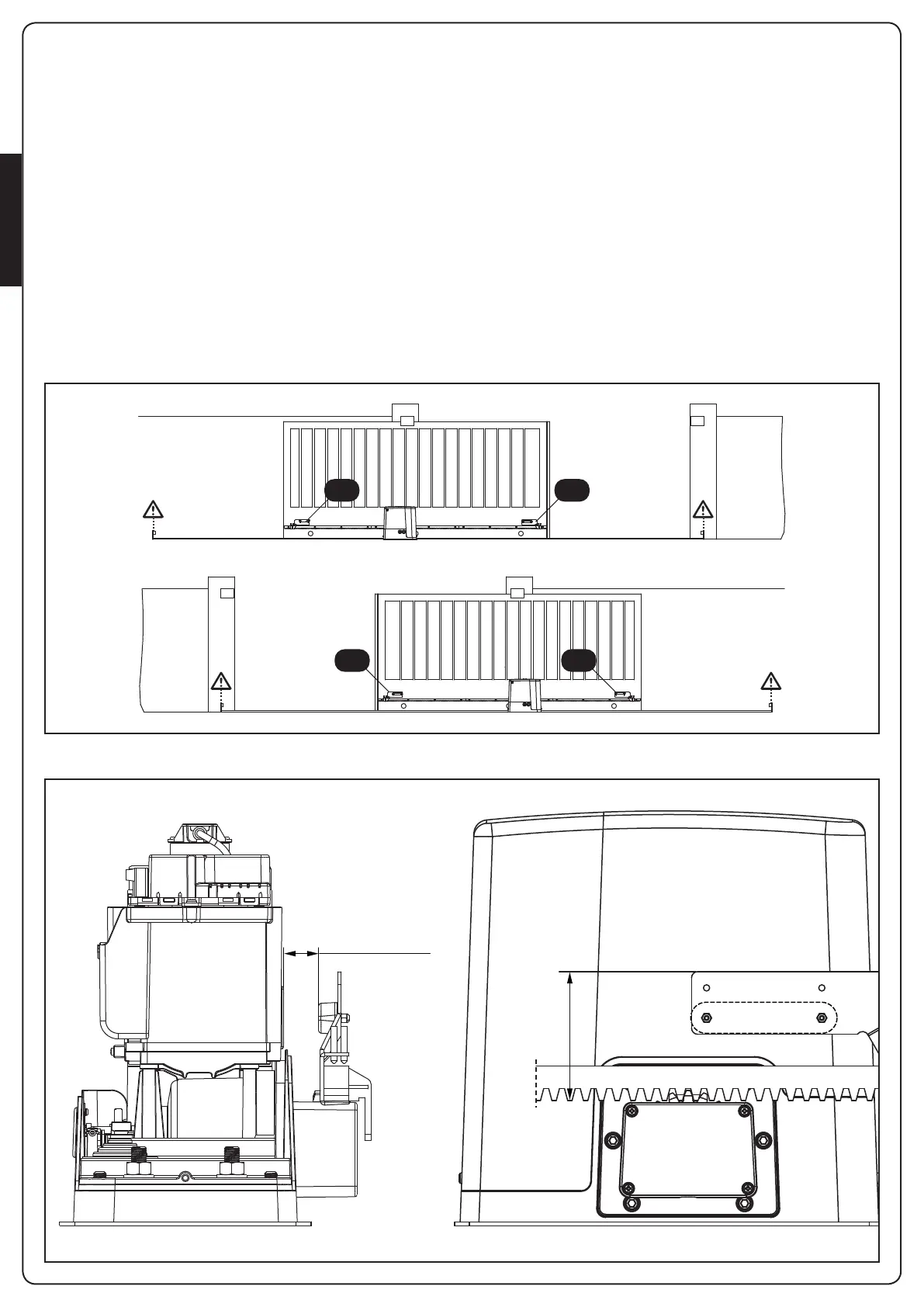

Install the supplied magnet holder on the rack in a way that, in
the opening and closing limit positions, the magnet be positioned
next to the magnetic sensor behind the hood (as near as possible
to the hood).
The supplied magnets have been colored differently in order to be
distinguished from each other:
BLUE MAGNET = RIGHT LIMIT SWITCH (DX)
RED MAGNET = LEFT LIMIT SWITCH (SX)
The type of limit switch (RIGHT/LEFT) depends on the position
of the limit switch towards the motor, independently from the
opening sense.
m WARNING: Once checked the proper working of the
system, we suggest to weld the end-of-stroke brackets on
the rack.
