ENGLISH
- 29 -

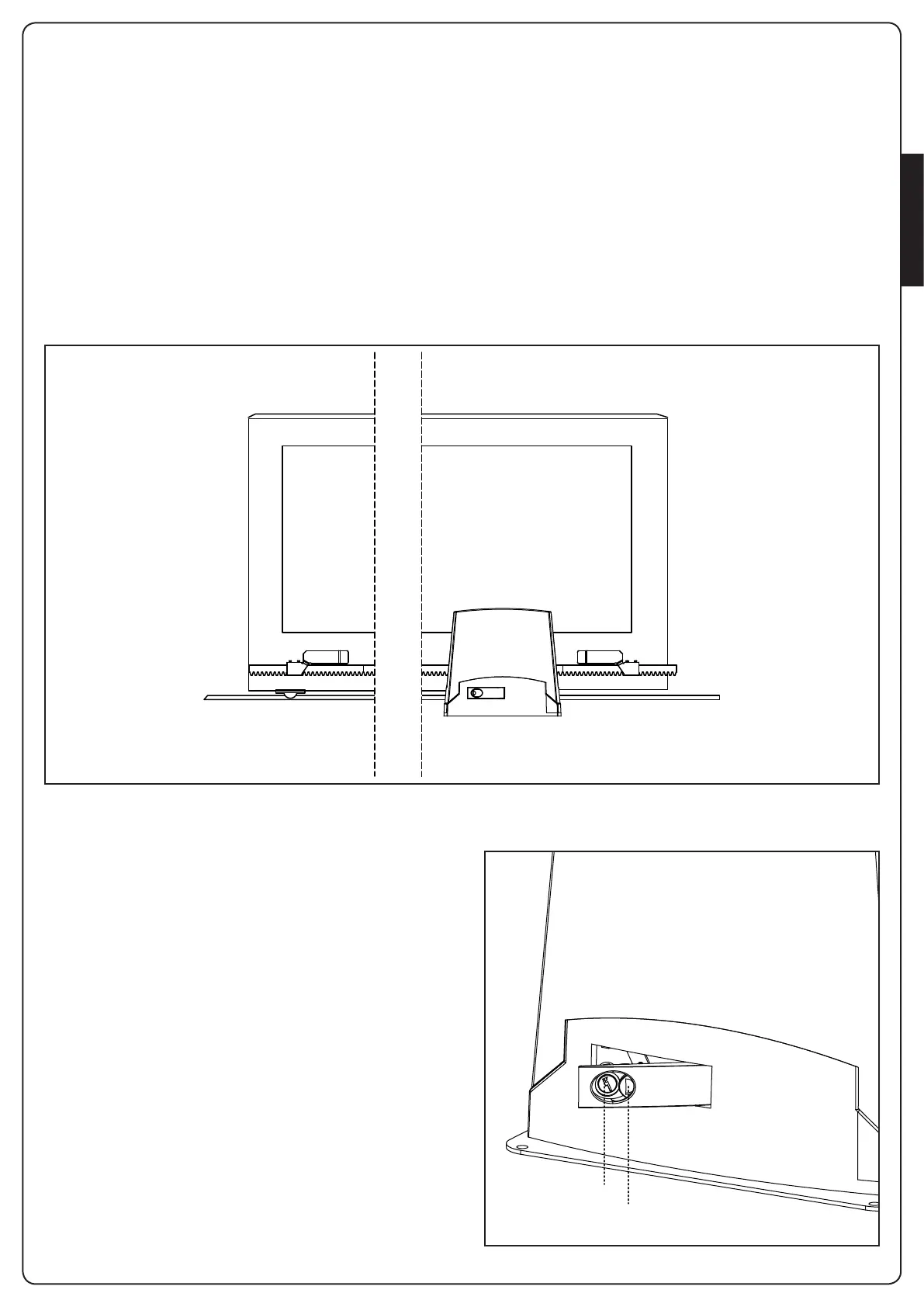

3.4 - INSTALLING THE LIMIT SWITCHES
m WARNING: For your safety, it is necessary that the gate
is equipped with mechanical stoppers.
If the gate is not equipped with these stoppers, an erratic
movement past the range limit may cause the gate to fall.
Move the door to open/close position. Fix the left and right
stopstirrups on the rack with the screws provided, considering
that when stopping, the gate slides for 2/3 cm more after the limit
switch intervenes. Set the motor authomatic functioning
m WARNING: Once checked the proper working of the
system, we suggest to weld the end-of-stroke brackets on
the rack.
3.5 - MOTOR OVERRIDING SYSTEM
m ATTENTION: before operating the manual release
disconnect the power. The motor is anyway disconnected
during the release, thanks to the presence of a safety
micro-switch.
Manual control has been thought for manual opening of the gate
in case of power-cut or motor breakdown.
1. Operate the manual release moving back the key hole cover.
2. Insert the key in the cylinder lock and turn it of 90° clockwise
direction.
3. Pull the lever till it is perpendicular to the gear-motor.
Automation restore:
1. Bring back the lever in the original position.
2. Insert the key in the cylinder lock and turn it of 90°
anticlockwise direction
K
J
