2. DESCRIPTION OF DIFFERENT PARTS AND THEIR FUNCTIONS

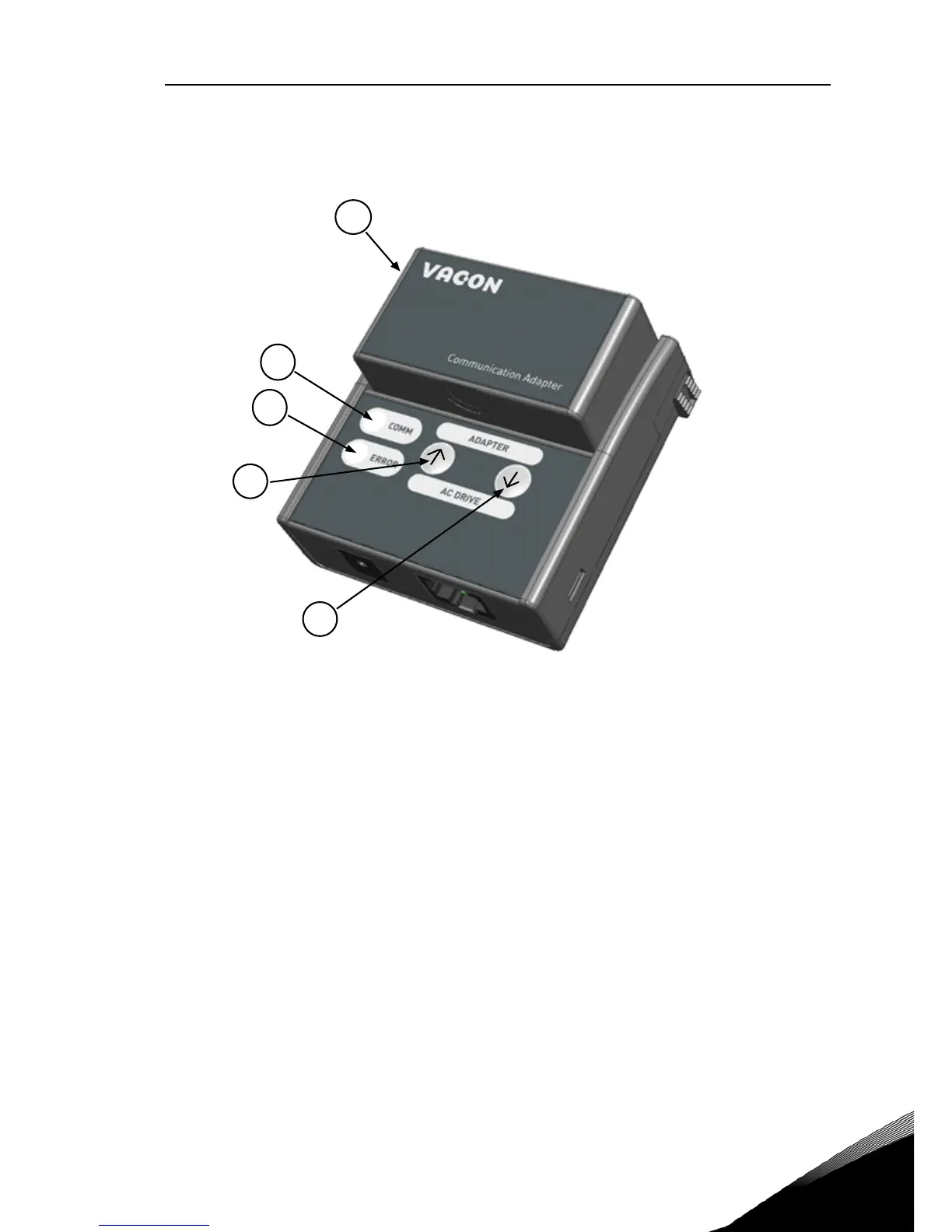

Communication adapter external parts I:
Figure 1.1: Communication adapter external parts I
1) Communication indicator (green): the indicator blinks when information is
being transferred between the MCA adapter and the drive.
2) Error indicator (red); blinks when when there is an error in communication
between MCA adapter and the drive.
3) Upload button: Pressing this button uploads the parameter settings from
the drive to the adapter.
4) Download button: Pressing this button downloads the parameter settings
from the adapter to the drive.
5) Battery cover: Cover for a 9V battery (for future use).
