vacon • 2 Vacon 100 X - Control Keypad

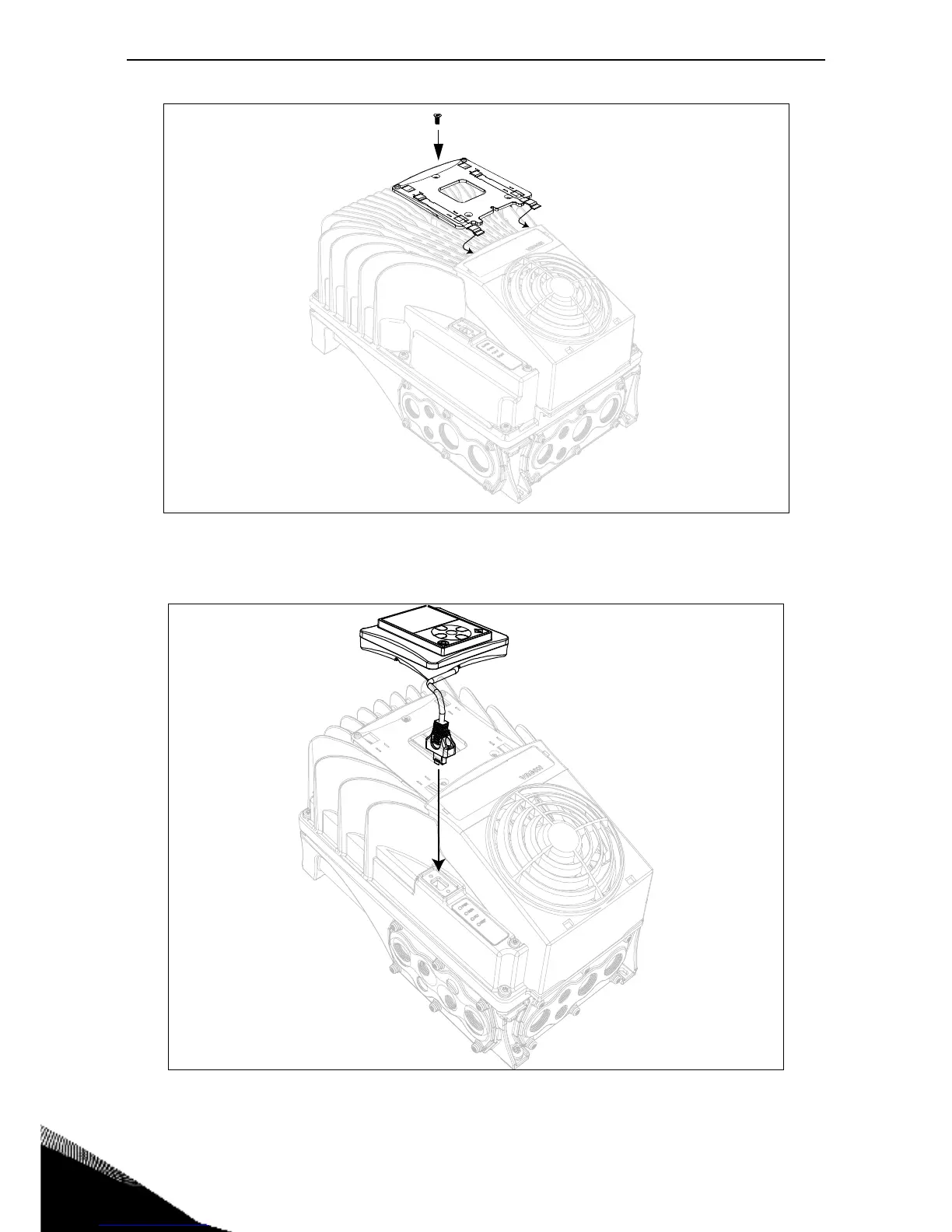

Figure 3. Installation of the keypad holder on the powerhead. The metal sheets of the keypad
holder have to be mounted under the fan holder as shown in Figures 3 and 4.
Figure 4. Mounting of the keypad.
