Vacon 100 X - Control Keypad vacon • 3
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
1

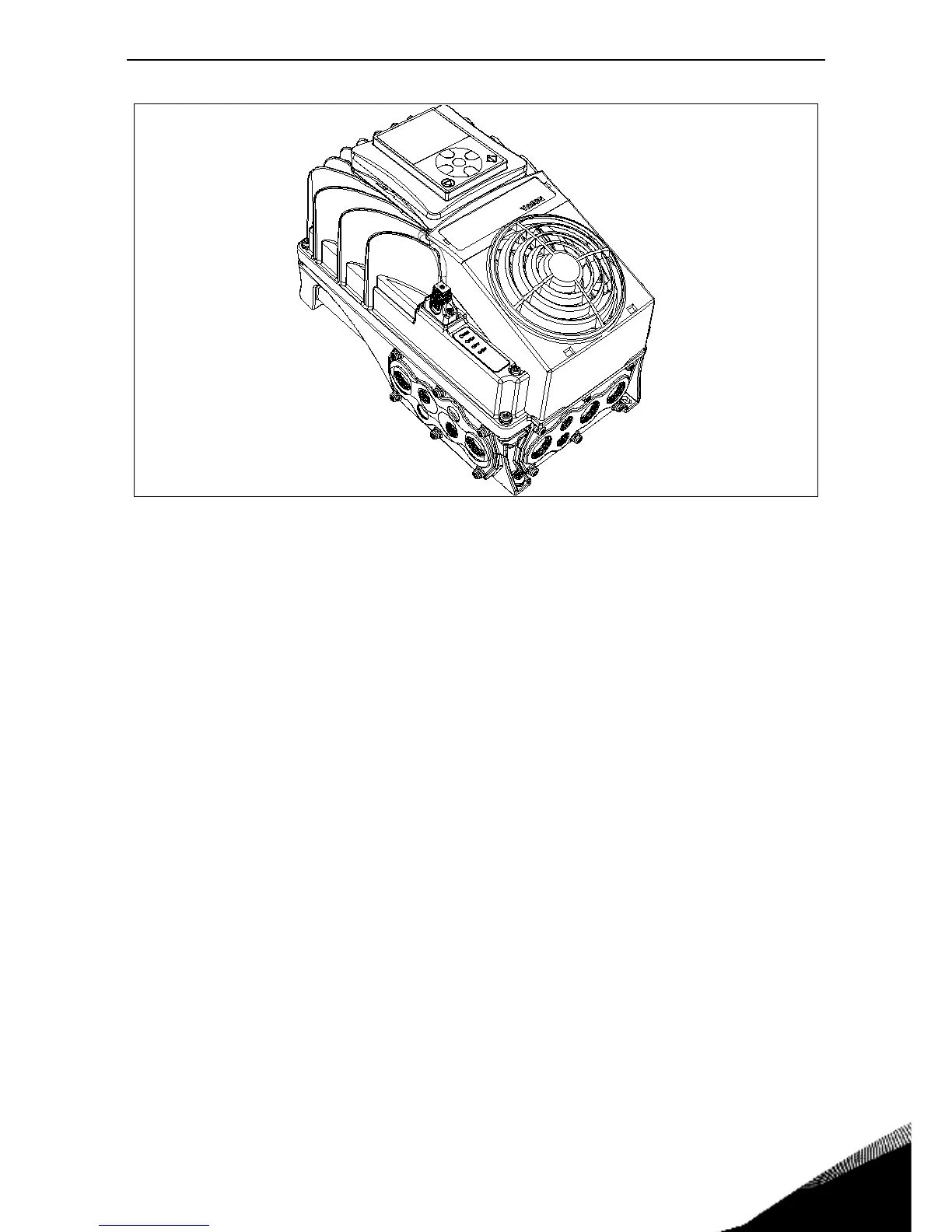

Figure 5. Keypad mounted onto the drive. Tighten the fixing screws of the cable connector to
the enclosure of the drive. This is to keep the high IP66 protection degree of the drive.
