Vacon NX series Maintenance Manual

Maximum ambient temperature +30°C
Maximum ambient relative humidity 95%
Primary circuit minimum +45°C (40°C+5°C)
VACON LIQUID COOLED NX DRIVE
Secondary circuit
maximum +40°C
HXL040
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54
Relative humidity, %
Primary circuit water temperature, °C

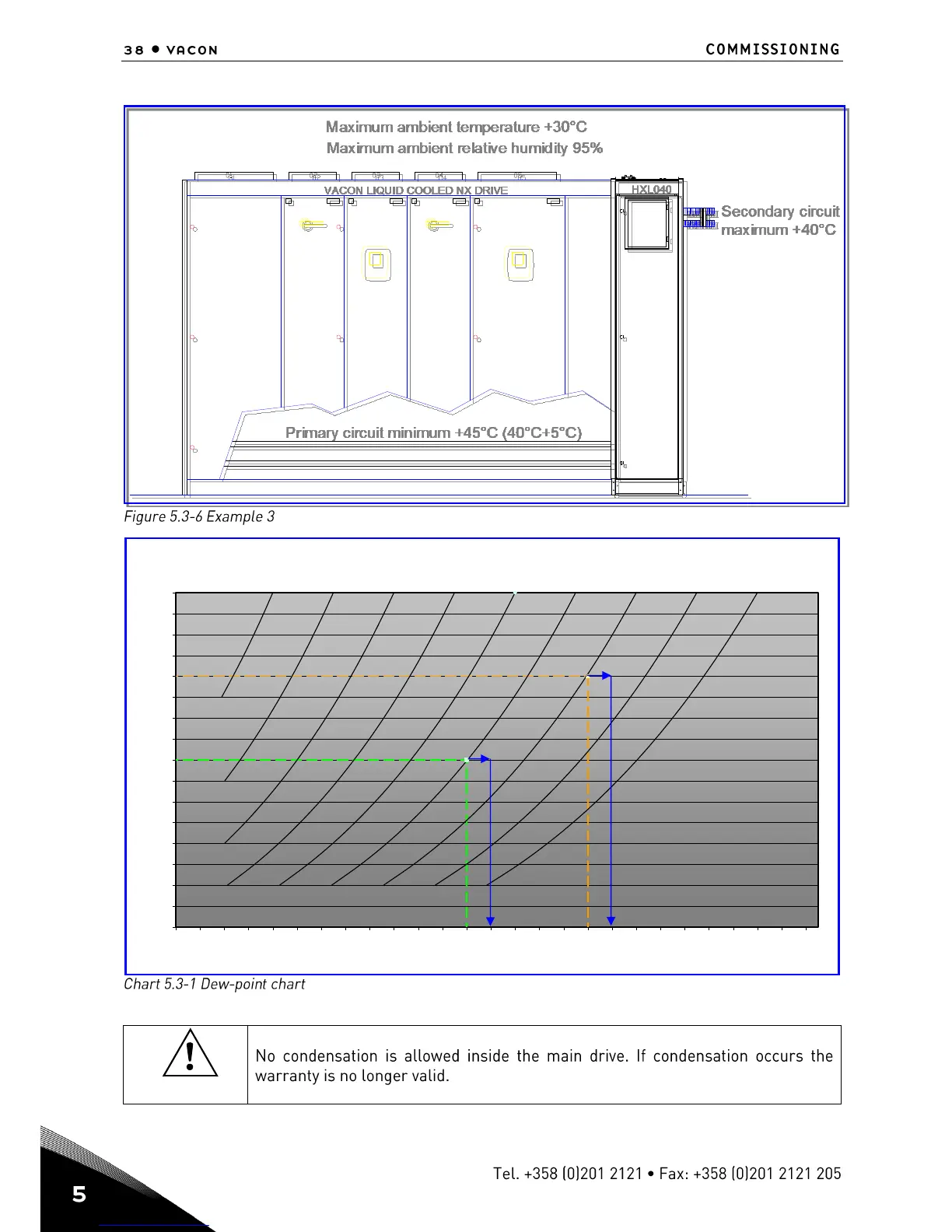

Dew-Point chart for ambient temperatures between +10..+50 @ 1013 mbar
10°
15°
20°
25°
30°
35°
40°
45°
50°
WARNING

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
