Vacon NX Installation Manual

4 • vacon Vacon IP54 kit contents
Tel. +358 (0)201 2121 • Fax +358 (0)201 212 205
2
2.2 FR5 (Type designation code: NXIP54FR5)

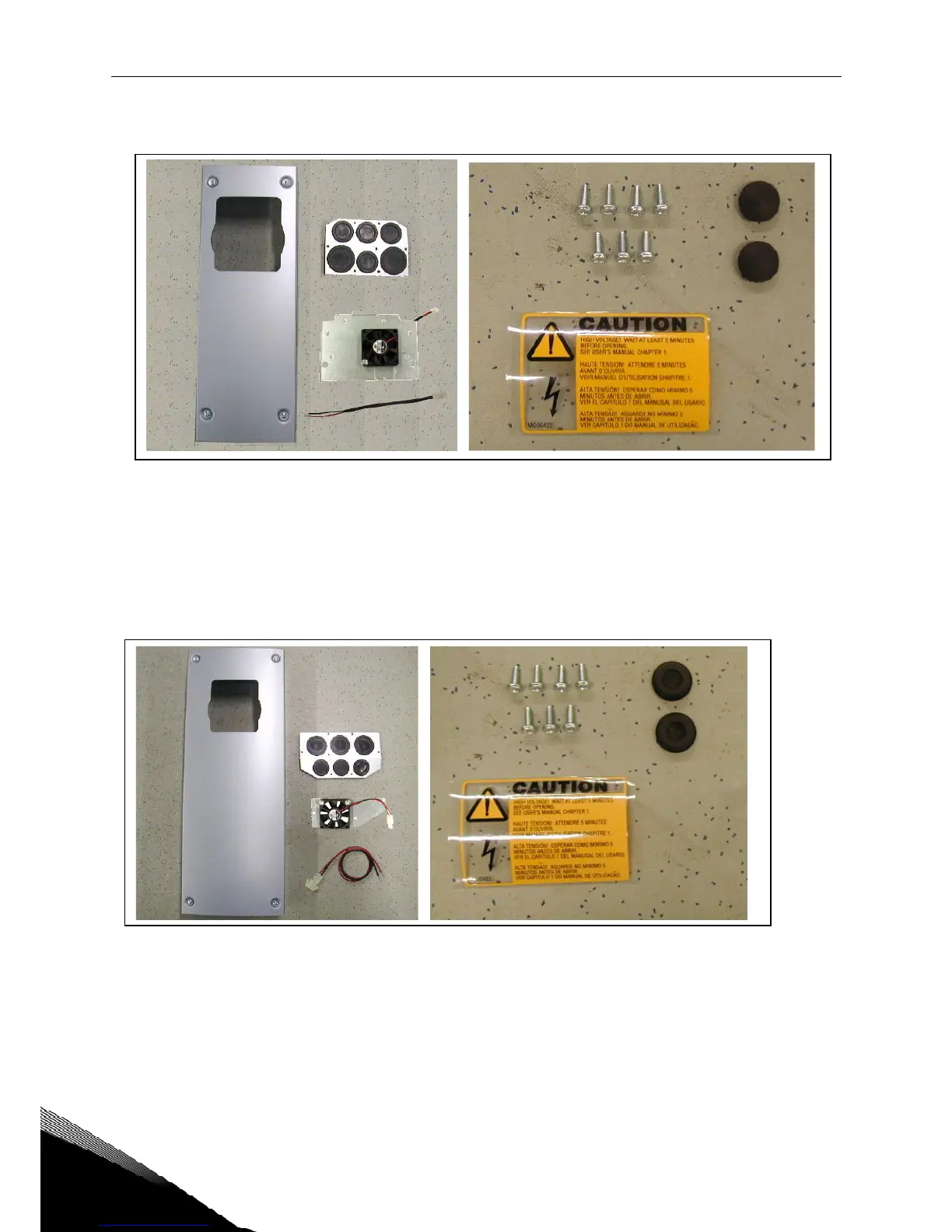

Figure 2. Contents of IP54 kit for FR5
1 IP54 enclosure for FR5
2 IP54 cable cover with fan
3 Cable entry flange with rubber grommets
4 Cable extension for fan
5 Rubber sealings
6 Screws (4x10)
7 Warning sticker
2.3 FR6 (Type designation code: NXIP54FR6)
Figure 3. Contents of IP54 kit for FR6
1 IP54 enclosure for FR5
2 IP54 lid with fan
3 Cable entry flange with rubber grommets
4 Cable extension for fan
5 Rubber sealings
6 Screws (4x10)
7 Warning sticker
1
5
1
2
3
6
7
5
2
3
5
6
7
7
4
4
