3. INSTALLATION
These instructions guide you through the installation of the IP54 kit that you have purchased for your
FR4, FR5 or FR6 size frequency converter enclosure class IP21. NOTE: If you have purchased your
converter before March 2004, follow the installation instructions under Error! Reference source
not found..

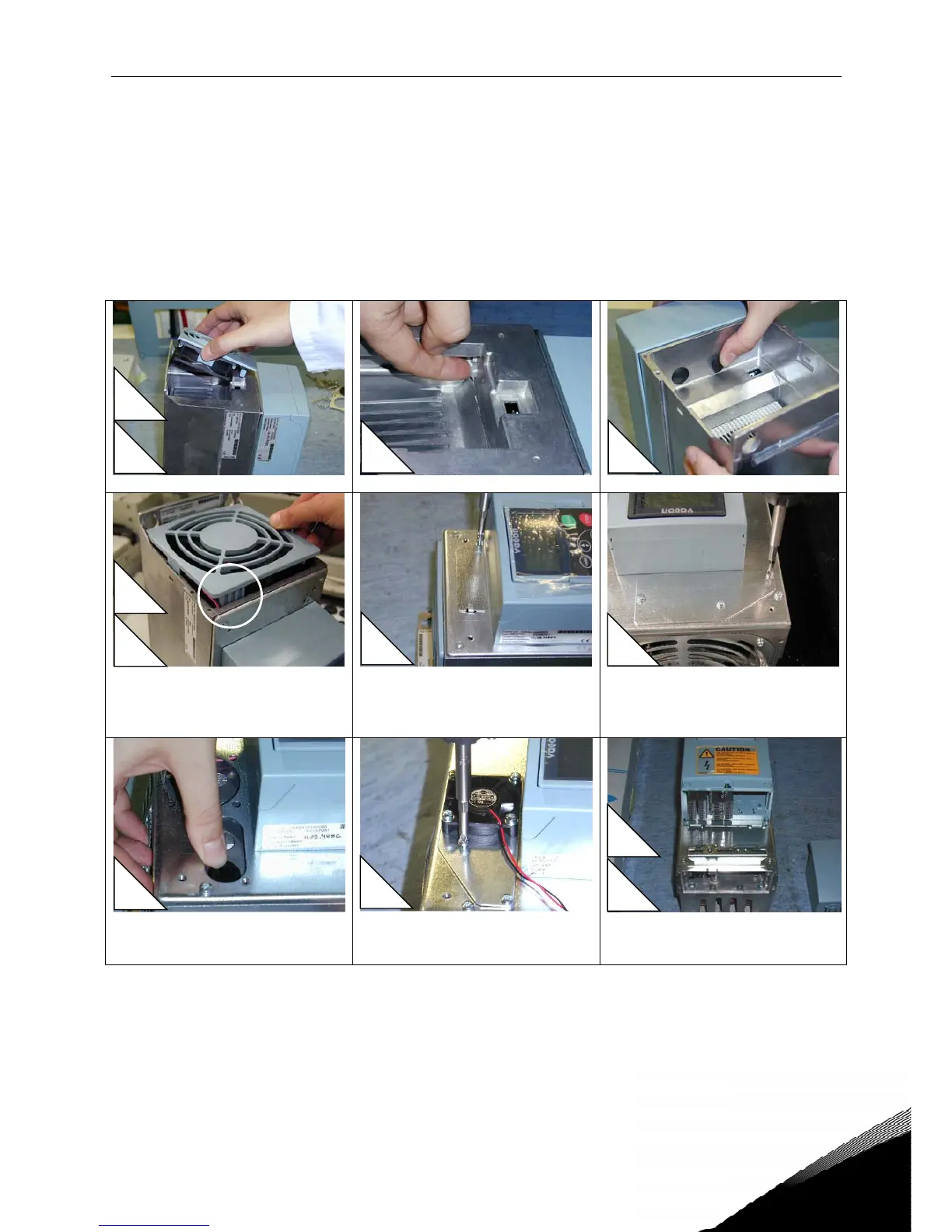

Please note the white triangles in the lower left corners of the installation pictures. They designate
the frame(s) the picture applies to. If no triangles exist, the step is applicable to all frames.
3.1 Installation instructions #1
1. Detach the fan. 2a. Insert the plastic sealing (#4). 2b. Insert the rubber sealing
3. Carefully re-install the fan en-
suring that the connector clip fits
accurately. DO NOT SLAM, DO NOT
FORCE!!
4a. Remove the plastic cover of
the frequency converter and open
the small lid on the power unit
cover. Leave the opening uncovered.
4b. Remove the plastic cover of
the frequency converter and open
the small lid on the power unit cover.
5. Seal the air inlets with the rub-
ber sealings (#4). Leave the open-
ing uncovered.
6. Fix the IP54 lid with fan (#2) on
the power unit cover.
7. Open the control cable cover
and remove the cable entry flange.
FR4
FR6
FR4
FR5
FR5
FR4
FR5
FR5
FR6
FR4
FR5
FR6

Vacon NX Specifications

General

Product Type	AC Drive
Control Method	Scalar Control
Enclosure	IP00, IP21
Communication	Ethernet
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Ambient Temperature Range	-10°C to +50°C (with derating above +40°C)
Cooling Method	Air-cooled, Liquid-cooled
