1. GENERAL
Using these instructions, you can enhance the enclosure protection class of your IP21 class frequency
converter to IP54. Such a higher protection level may be necessary when the frequency converter is
used in such ambient conditions that might constitute a risk for the proper functioning of the
converter (moist, dust).
According to standard IEC 60529 (EN 60 529), the IP54 frequency converter enclosure provides
protection against dust and water sprayed from all directions. Limited ingress of both is permitted.
2. VACON IP54 KIT CONTENTS
The contents of the IP54 kits for different frames are shown in the following pictures.
2.1 FR4 (Type designation code: NXIP54FR4)

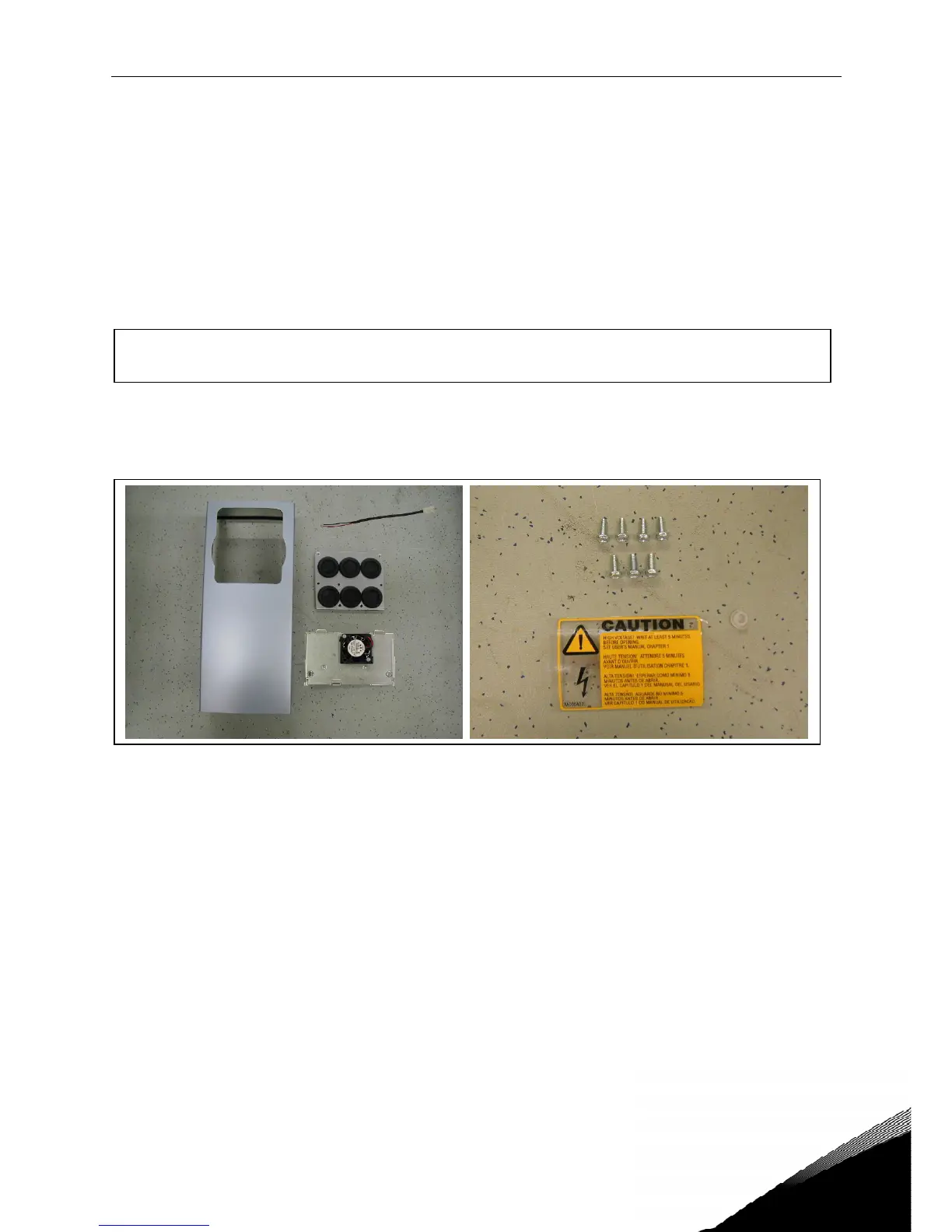

Figure 1. Contents of IP54 kit for FR4
1 IP54 enclosure for FR4
2 IP54 cable cover with fan
3 Cable entry flange with rubber grommets
4 Cable extension for fan
5 Plastic sealing
6 Screws (4x10)
7 Warning sticker
NOTE: An IP54 enclosure does not protect the frequency converter against strong jets of water or
the effects of immersion.
