vacon • 16 Receipt of delivery
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3.6 Lifting the modules
The modules can be lifted by the holes on top. Place the lifting hooks symmetrically in at least four
holes. The maximum allowed lifting angle is 45º. For enclosure sizes FI9 and FI10, see Figure 1 and
for the enclosure size FI13, see Figure 2.
The lifting equipment must be able to carry the weight of the module.

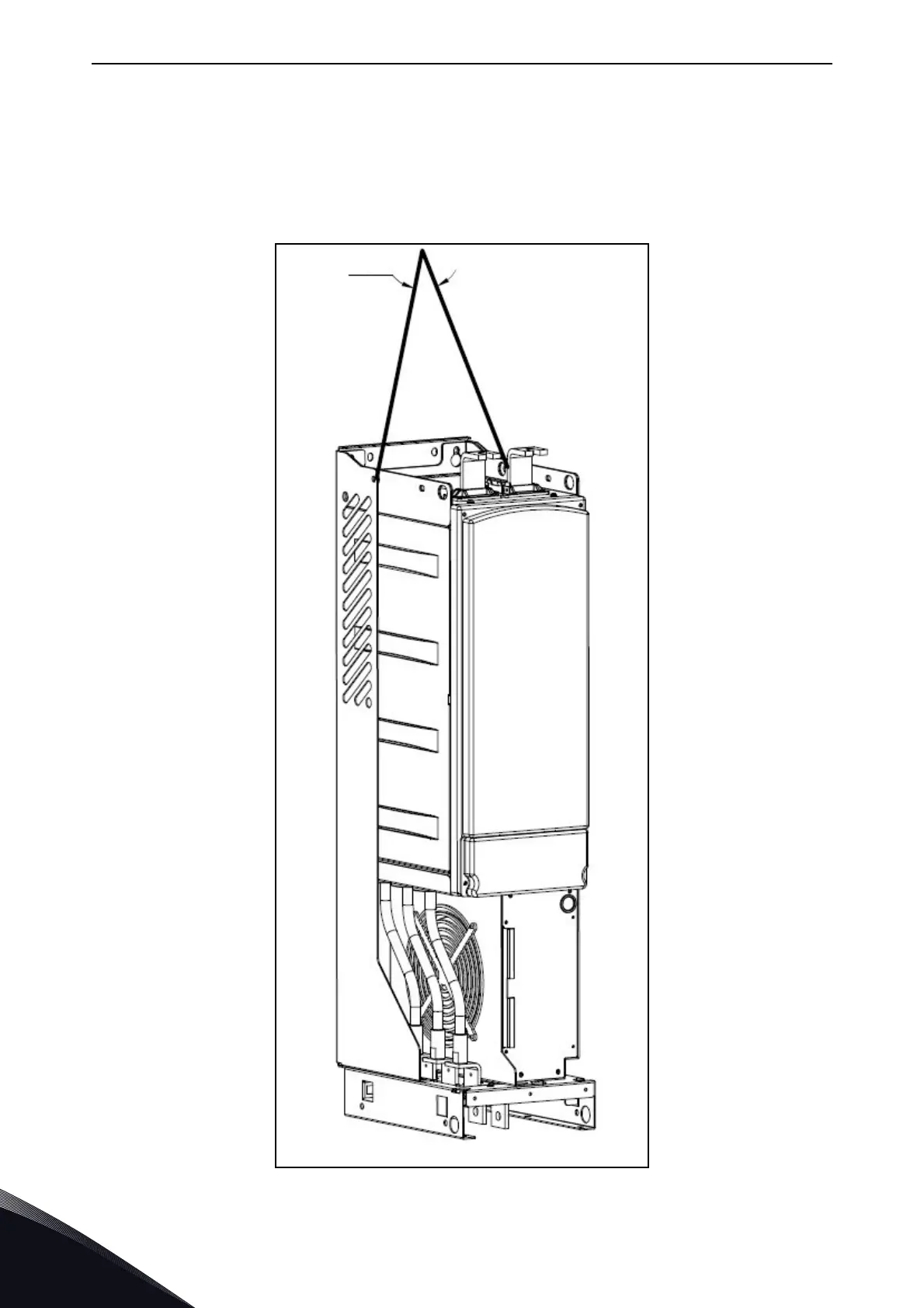

Figure 1. Lifting points for FI9 and FI10 modules
