45IA_20901569_EN_R9_V1_061223
Maintenance

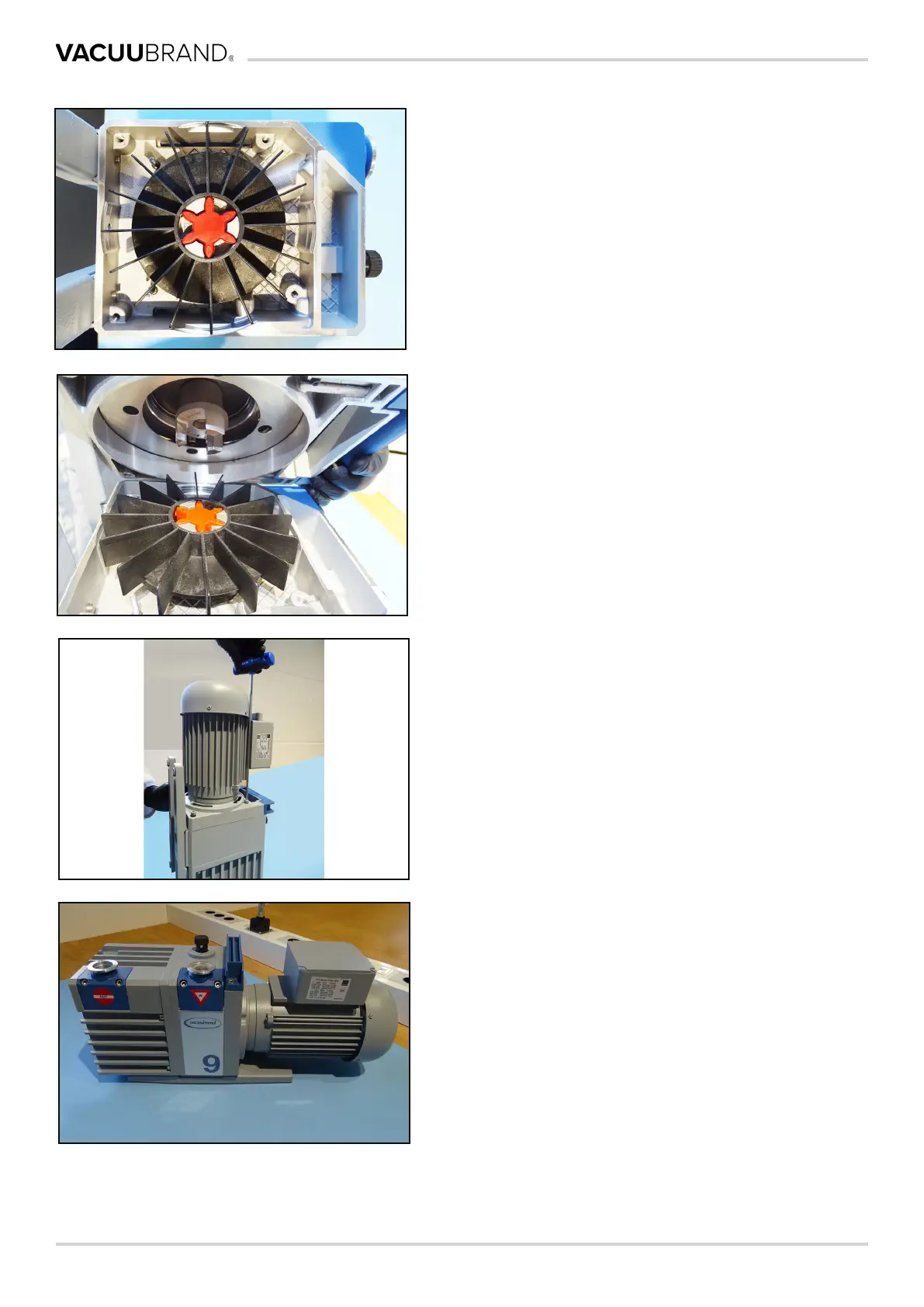

95. Insert the cross coupling.
96. Carefully place the motor in the housing.
97. Screw the motor tight.
> The terminal box of the motor must be alig‑
ned in the direction of the pump handle.
> Recommended torque: 12 Nm.
98. Place the pump on the pump feet.
