4 Assembly
8 Installation and maintenance instructions ecoFIT pure 0020230533_01
Quantity Description
1 Gas pipe
1 Expansion relief valve discharge pipe
1 Installation template
1 Enclosed documentation

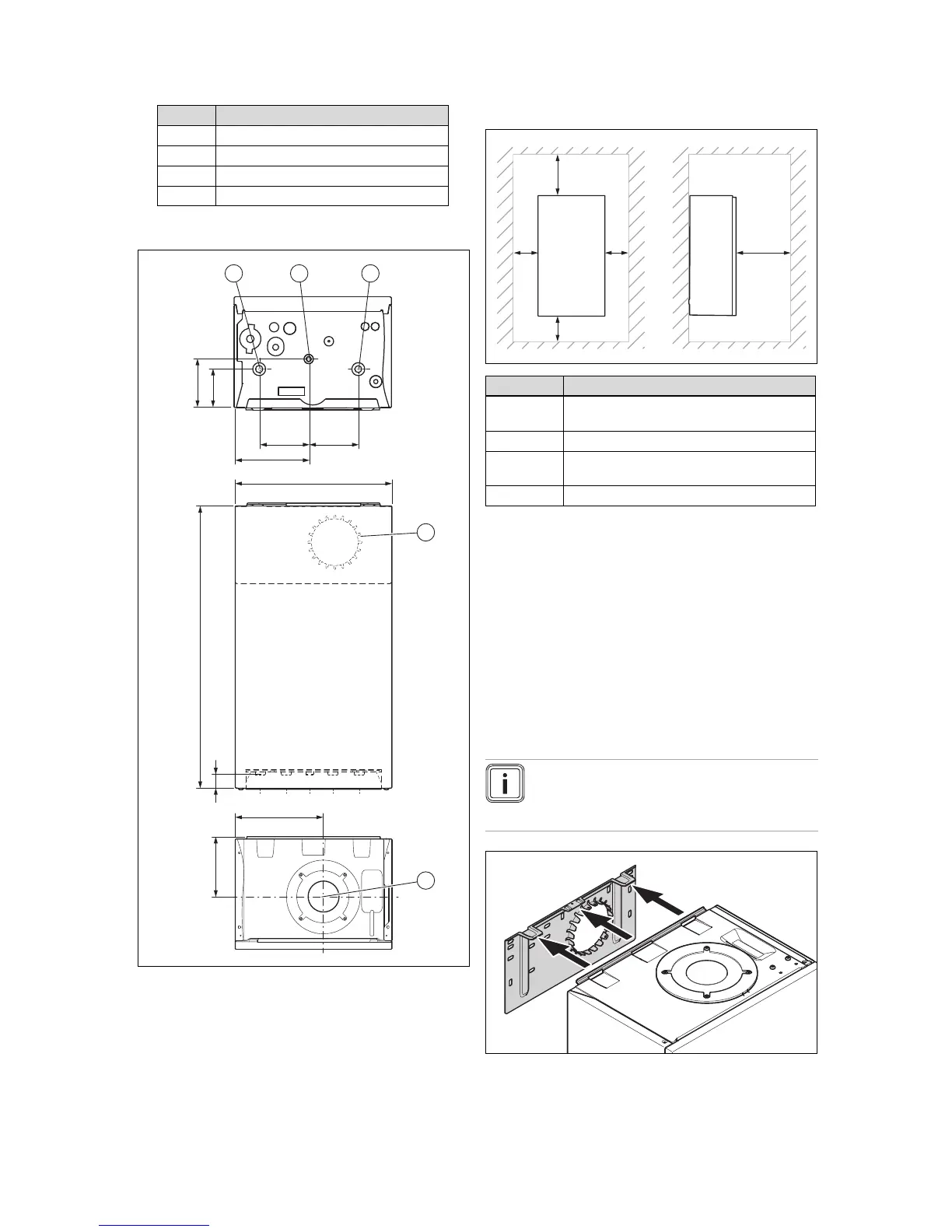

4.4 Dimensions
96
121
34
123
185
390
123
170
702
150
1 2 3
5
4
1 Heating flow
2 Gas connection
3 Heating return
4 Connection on the back
of the air/flue pipe
5 Connection on the top
of the air/flue pipe
4.5 Minimum clearances
CC
A
B
D
Minimum clearance
A 150 mm (upper air/flue gas connection)
20 mm (air/flue gas connection on the rear)
B 150 mm
C 5 mm
(70 mm if the side panels ought to be removed)
D 600 mm
It is not necessary to maintain a clearance between the
product and components made of combustible materials that
go beyond the minimum clearances.
4.6 Clearance from combustible components
It is not necessary to maintain a clearance between the
product and components made of combustible materials that
go beyond the minimum clearances (→ Page 8).
4.7 Using the installation template
▶ Use the installation template to ascertain the locations at
which you need to drill holes and make breakthroughs.
4.8 Wall-mounting the product
Note
If you are using the rear air/flue gas connection,
install the air/flue pipe before you wall-mount the
product.
1. Check whether the wall has sufficient load-bearing ca-
pacity to bear the operational weight of the product.
