9.1 Fitting the boiler hanging bracket
If previously removed, reposition the wall template over
the flue hole and mark the position of the fixing holes for
the hanging bracket, see fig 9.1.
Mark and drill the fixing holes and secure the hanging
bracket. Fix the hanging bracket to the wall using the
screws supplied. Ensure the uppermost set of screw
positions are used (it may be necessary to use additional
or alternative fixings to ensure adequate support).
NOTE:
If the boiler is to be fitted in a timber framed
building ensure that the bracket is secured to a
substantial part of the timber frame capable of
taking the weight of the boiler.
9.2 Boiler Fixing
Lift the boiler into position in the following manner:
Lean the top of the boiler slightly to the wall and
position just above the hanging bracket. Allow the boiler
to slowly move downwards until engaged in the hanging
bracket.

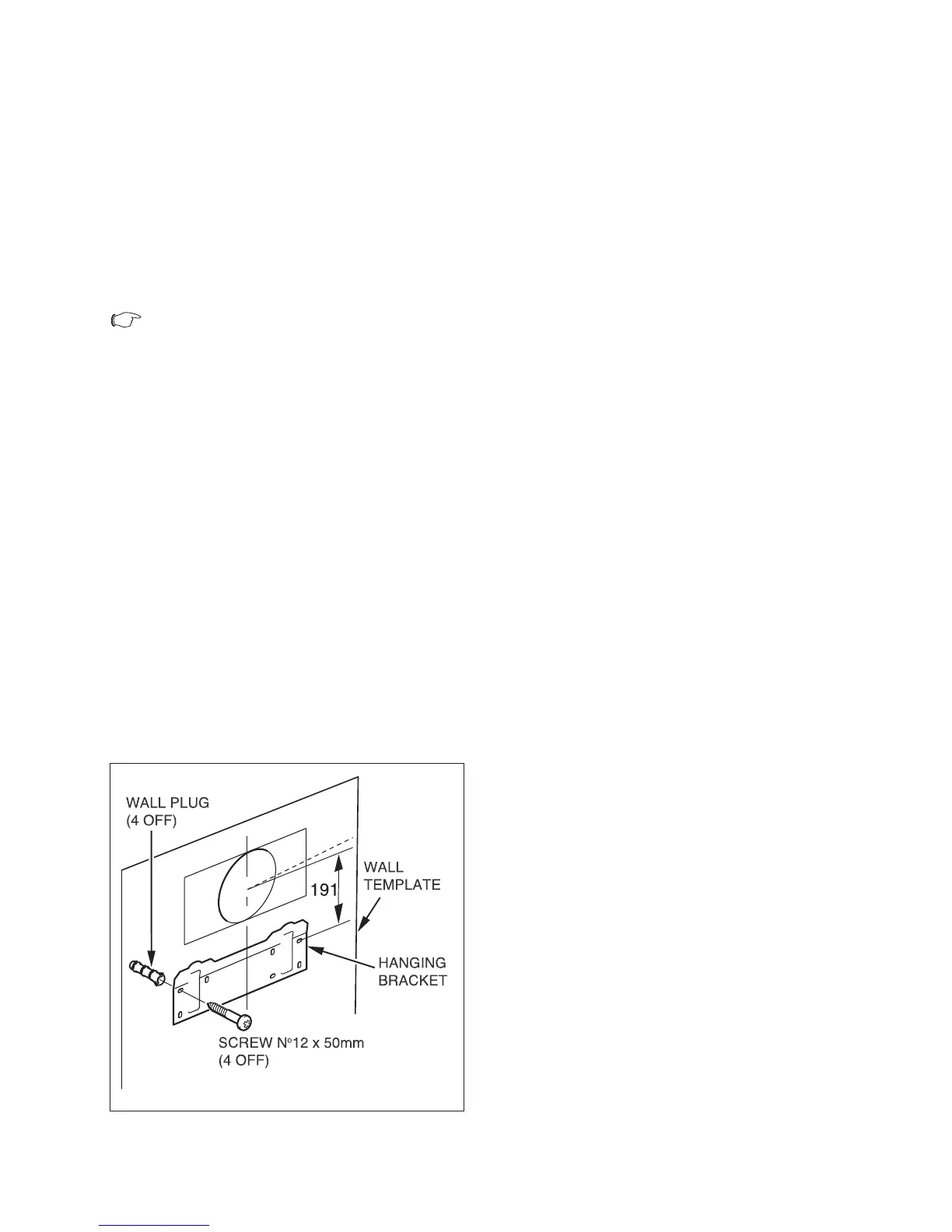

Fig 9.1
12690
9 Boiler fixing
