Instructions for Use, Installation and Servicing ecoMAX pro18
8.1 Unpacking of Boiler
Stand the boiler carton upright.
Cut and remove the securing straps and lift off the carton
sleeve. Place aside the flue adaptor and connections
pack until required.
NOTE:
Care should be taken not to scratch the white
surface of the boiler casing.

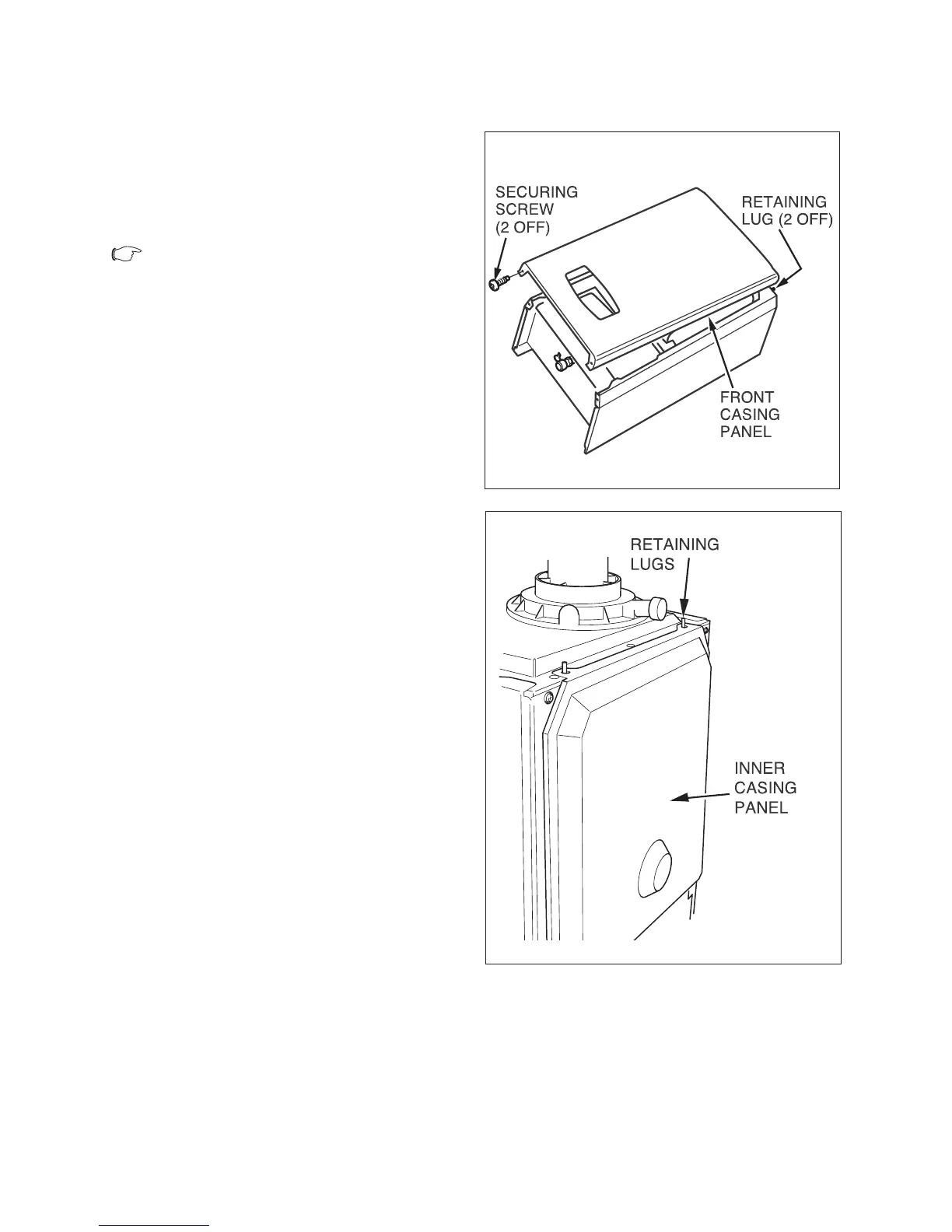

Carefully lay the boiler on its back, remove the two front
casing panel securing screws and lift off the panel from
two retaining lugs, see fig 8.1.
Remove the two inner casing panel securing screws at
the bottom front of the panel, then lift off the two retaining
lugs, see fig 8.2.
8.2 Rear flue exit
Refer to flue system installation instructions for full details.
8.3 Other flue options
Flue instructions for other flue systems such as vertical
RSF flues, flues run to the side of the boiler and the use
of additional bends etc. are detailed in the flue
installation instructions.
Fig 8.1
12678
Fig 8.2
12688
8 Installation preparation
