Boiler Specification 2
Instructions for installation and servicing ecoMAX 9
2.6 Design

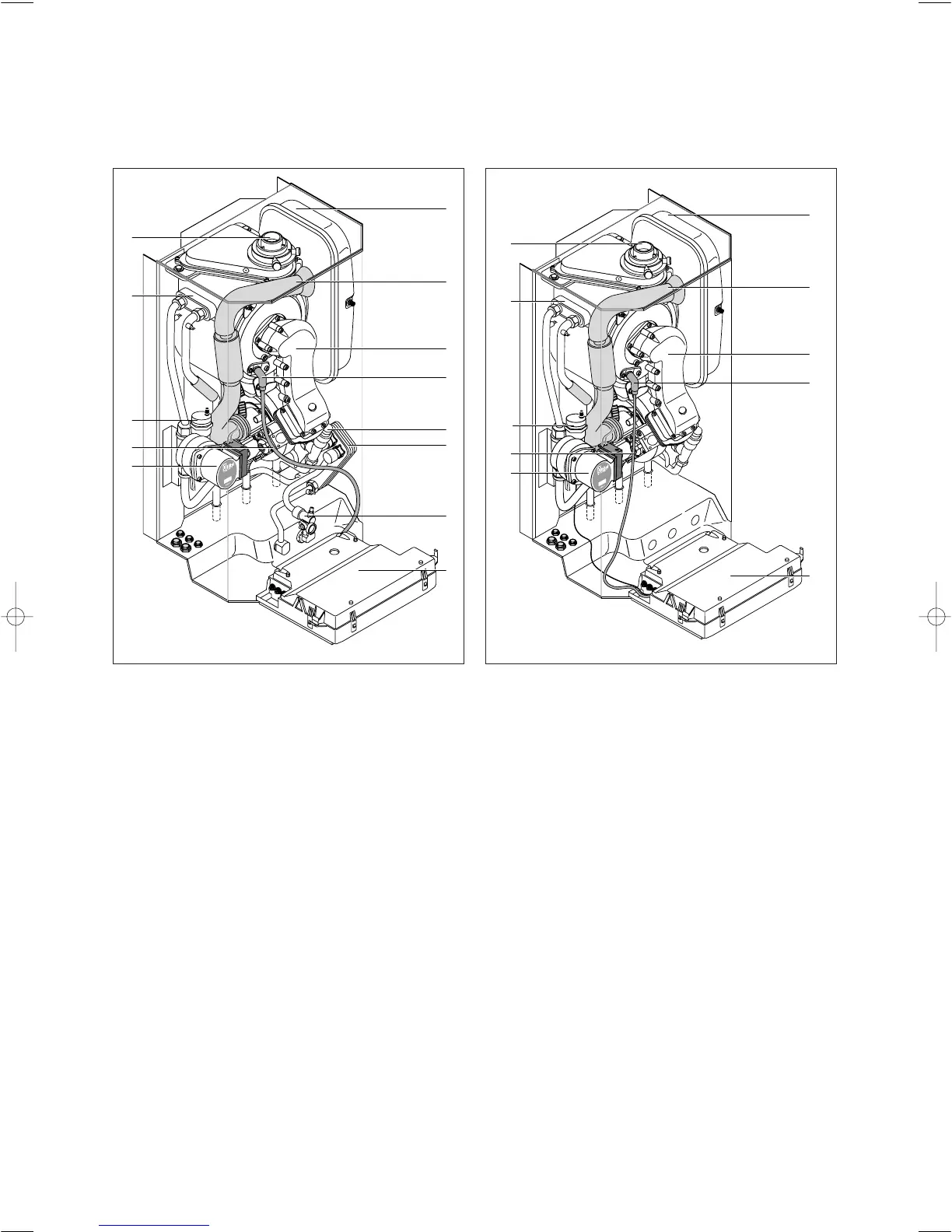

Fig. 2.6 Functioning elements, ecoMAX 800/2 configuration
1 Expansion vessel
2 Air suction pipe
3 Burner assembly
4 Ignition electrode
5 Diverter valve
6 DHW heat exchanger
7 Aqua sensor
8 Electronic box
9 Circulating pump
10 Gas valve assembly
11 Auto air vent
12 Main Heat exchanger
13 Air/flue gas duct
Fig. 2.7 Functioning elements, ecoMAX 600/2 configuration
1 Expansion vessel
2 Air suction pipe
3 Burner assembly
4 Ignition electrode
8 Electronic box
9 Circulating pump
10 Gas valve assembly
11 Auto air vent
12 Main Heat exchanger
13 Air/flue gas duct
1
2
3
4
8
9
10
11
12
13
1
2
3
4
6
5
7
8
9
10
11
12
13
