18 Air/flue pipe installation manual 0020308120_02

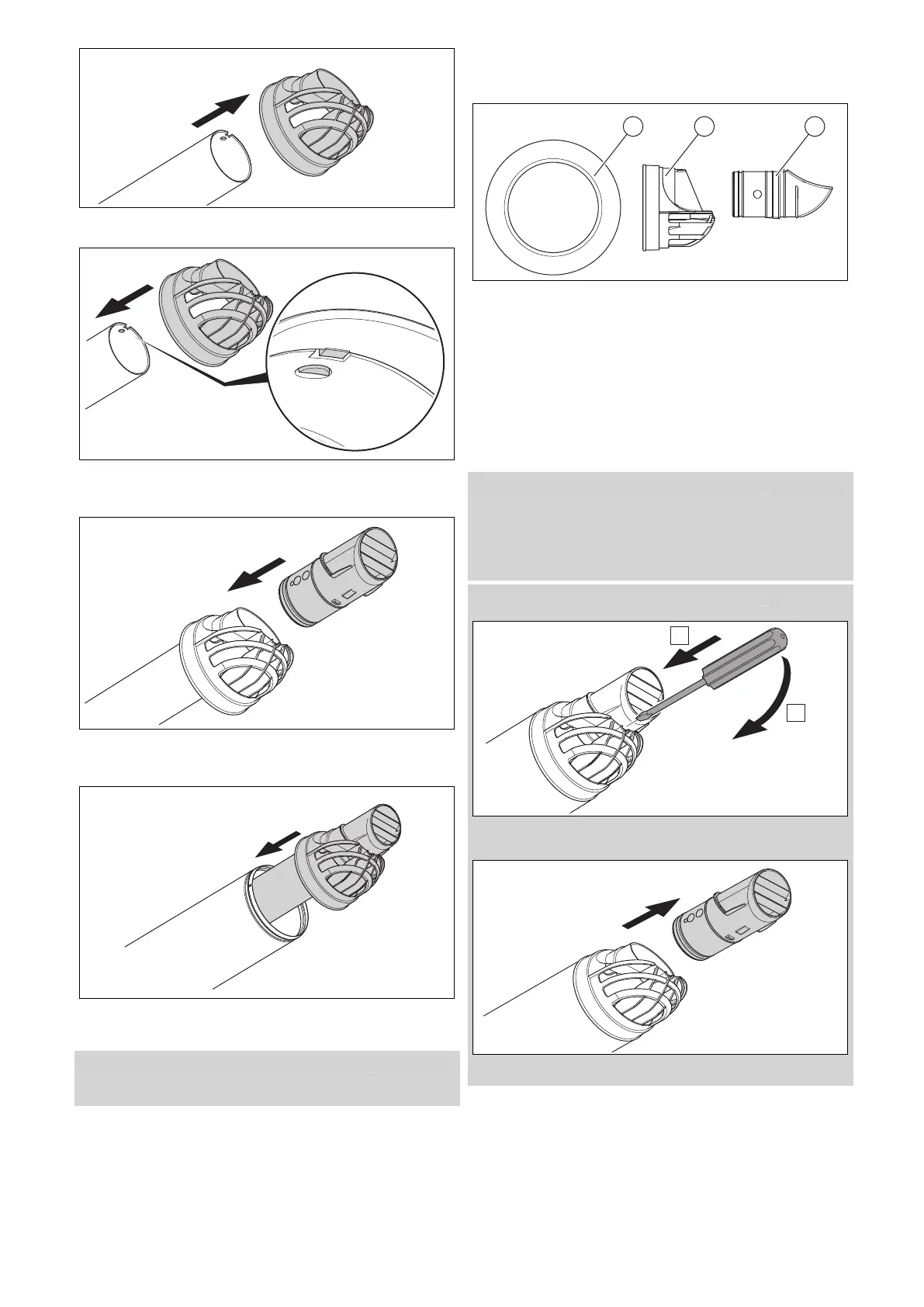

6. Pull the opening piece from the flue pipe.
7. Slide the new opening piece onto the flue pipe until you
hear the opening piece click into place.
8. Slide the end pipe onto the opening piece until you
hear the end pipe click into place.
9. Slide the flue pipe with the new terminal into the air
pipe until you hear the terminal click into place.
Condition: Terminal secured using screws
▶ Attach the terminal using the side screws.
5.6.3 Deflector set (not for 0010035512)
5.6.3.1 Scope of delivery
1 Wall collar
2 Opening piece
3 Deflector
– Deflector set, DN 60, PP, black (article number
0020219533)
– Deflector set, DN 60, PP, white (article number
0020219534)
5.6.3.2 Installing the deflector set
Condition: Replacing the deflector set (change of colour)
▶ In the event of a change of colour, replace the deflector
set, including the wall collar (→ Page 17).
▶ Install the deflector, instead of the end pipe, on the open-
ing piece.
Condition: Replacing the end pipe only
▶ Release the catch between the opening piece and the
end pipe.
▶ Pull the end pipe from the opening piece.
